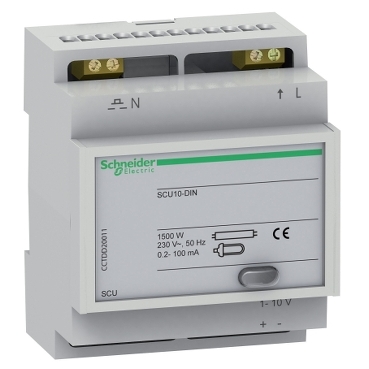

Schneider Electric CCTDD20011
SCU – DIN – remote control dimmer – 1..10 V
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range of product | Acti9 |
|---|---|
| Product name | Acti9 SCU |
| Product or component type | Remote control dimmer |
| Device short name | SCU |
| Device application | Building |
| Load type | 50 x fluocompact lamp, electronic ballast: <= 1500 W, 12 x dual mounted fluorescent tube, electronic ballast: 58 W, 20 x dual mounted fluorescent tube, electronic ballast: 36 W, 25 x fluorescent tube, electronic ballast: 58 W, 40 x dual mounted fluorescent tube, electronic ballast: 18 W, 40 x fluorescent tube, electronic ballast: 36 W, 50 x fluorescent tube, electronic ballast: 18 W |
| Control type | Local control: push-button, Remote control: push-button |
| Power consumption in VA | 0.8 VA |
| Thermal losses | 3 W |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50 Hz |
| Output current | 0.2…100 mA |
| Protection type | Electronic overvoltage protection, Electronic over temperature protection, Single shot thermal fuse, Electronic overload protection |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Connected auxiliaries | Maximum 25 auxiliary push-buttons without light indication, distance : < 50 m, Maximum 5 auxiliary push-buttons with light indication, distance : < 50 m |
| Connections - terminals | Screw terminals, 2 cable(s) 4 mm² top |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 62 mm |
| Net weight | 130 g |
| IP degree of protection | IP20 |
| Standards | EN 60669-2-1 |
| Directives | 89/336/EEC – electromagnetic compatibility, 73/23/EEC – low voltage directive |
| Ambient air temperature for operation | 0…70 °C |
| Ambient air temperature for storage | 0…60 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.100 cm |
| Package 1 Width | 9.600 cm |
| Package 1 Length | 9.800 cm |
| Package 1 Weight | 172.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 19.800 cm |
| Package 2 Width | 30.600 cm |
| Package 2 Length | 40.700 cm |
| Package 2 Weight | 4.506 kg |
| Warranty | 18 months |
