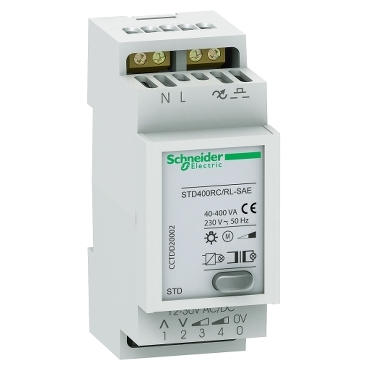

Schneider Electric CCTDD20002
STD – SAE – remote control dimmer – 400 W
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range of product | Acti9 |
|---|---|
| Product name | Acti9 STD |
| Product or component type | Remote control dimmer |
| Device short name | STD |
| Product compatibility | Power regulators designed |
| Function available | Automatic load type detection |
| Device application | Building |
| Load type | 230 V AC halogen lamp: 40…400 W, 230 V AC incandescent lamp: 40…400 W, low voltage halogen lamp with electronic transformer: 40…400 W, motor: 40…200 W, low voltage halogen lamp with conventional transformer: 40…400 W, low voltage halogen lamp with toroidal transformer: 40…300 W |
| Control type | Local control: push-button, Remote control: push-button |
| Power consumption in VA | 0.8 VA |
| Thermal losses | 3 W |
| Input type | Push-button 4 allows control up to 20 dimmers |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50 Hz |
| Input voltage | 12…30 V AC/DC |
| Protection type | Electronic over temperature protection, Electronic overload protection, Single shot thermal fuse, Electronic overvoltage protection |
| Mounting support | DIN rail |
| 9 mm pitches | 4 |
| Connected auxiliaries | Maximum 25 auxiliary push-buttons without light indication, distance : < 50 m, Maximum 5 auxiliary push-buttons with light indication, distance : < 50 m |
| Connections - terminals | Screw terminals, 2 cable(s) 4 mm² top, Screw terminals, 5 cable(s) 2.5 mm² bottom |
| Maximum cable distance between devices | 50 m |
| Height | 85 mm |
| Width | 36 mm |
| Depth | 62 mm |
| Net weight | 80 g |
| IP degree of protection | IP20 |
| Standards | EN 60669-2-1 |
| Directives | 73/23/EEC – low voltage directive, 89/336/EEC – electromagnetic compatibility |
| Ambient air temperature for operation | 0…70 °C |
| Ambient air temperature for storage | 0…60 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 9.700 cm |
| Package 1 Length | 9.700 cm |
| Package 1 Weight | 155.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.207 kg |
| Warranty | 18 months |
