Schneider Electric AP9566
It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 12 IEC 60320 C13 outlets, providing ample connections for…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

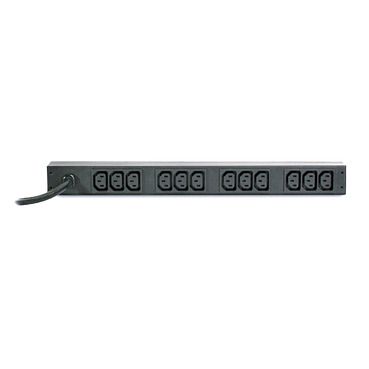

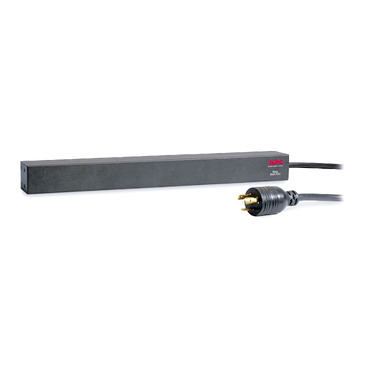

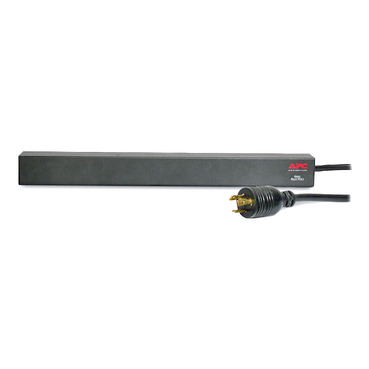

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 12 IEC 60320 C13 outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L6-20P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.
Specification
| Lead time | Usually in Stock |
|---|---|
| Color | Black |
| Product or Component Type | PDU |
| PDU Type | Basic |
| Cord length | 11.98 ft (3.65 m) |
| Number of cables | 1 |
| Provided Equipment | Installation guide, Rack Mounting brackets |
| Input Voltage | 200 V, 208 V, 230 V |
| Height | 1.7 in (44 mm) |
| Width | 17.6 in (447 mm) |
| Output Voltage | 208 V |
| Depth | 2.2 in (57 mm) |
| Net Weight | 5.5 lb(US) (2.5 kg) |
| Mounting Location | Front, Rear |
| Mounting preference | No preference |
| Input Plug Type | NEMA L6-20P |
| Mounting Mode | Rack-mounted |
| Rack units | 1U |
| Mounting position | Horizontal |
| Line Rated Current | 16 A |
| Input current limits | 20 A |
| Load Capacity | 3328 VA |
| Input Frequency | 50/60 Hz |
| Outlet type and quantity | 12 IEC 60320 C13 |
| Product Certifications | cUL Listed, UL Listed |
| Standards | UL 60950 |
| Ambient air temperature for operation | 32…113 °F (0…45 °C) |
| Relative Humidity | 0…95 % |
| Operating altitude | 0…10000 ft |
| Ambient Air Temperature for Storage | -13…149 °F (-25…65 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…50000 ft (0…15240 m) |
| GTIN | 731304213048 |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.8 in (7 cm) |
| Package 1 Width | 9.02 in (22.9 cm) |
| Package 1 Length | 18.3 in (46.4 cm) |
| Package weight(Lbs) | 8.02 lb(US) (3.64 kg) |
| Warranty (in months) | 24 |
| Warranty | 2 years repair or replace |
