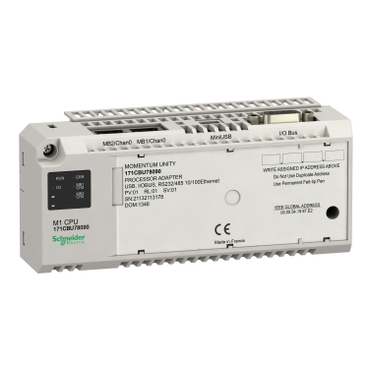

Schneider Electric 171CBU78090
This processor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1 processor is equipped with USB integrated conne…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This processor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1 processor is equipped with USB integrated connection port. The Spear 320s processor offers 125 words Modbus messaging and 200 I/O message per second. The processor is accessible through master/slave method. This processor provides web services like CPU status, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height). It weighs 0.159kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specification
| Range of product |
Modicon Momentum automation platform |
|---|---|
| Product or component type |
Processor |
| Integrated connection type |
USB port |
| Concept |
Transparent Ready class B |
| Web services |
Home pages, Properties, CPU status |
| Software designation |
Unity Pro |
| Communication service |
Modbus messaging 100 words, 200 I/O message per second |
| Processor name |
Spear 320s |
| Word length |
32 bit |
| Supply voltage limits |
4.75…5.25 V |
| Clock frequency |
333 MHz |
| Topology |
Multidrop Modbus |
| Communication port protocol |
Modbus RS485/RS232 – 1 RJ45 19200 bps – 2-wire |
| Method of access |
Master/slave |
| Control parameter |
CRC-16 for Modbus |
| Addressing |
1…247 Modbus |
| Fail state |
Safe I/O mode |
| Memory description |
Program memory IEC 3584 kB, Program memory LL984 3584 kB |
| Register words |
26048 |
| I/O limit processor capacity |
2048 inputs/2048 outputs |
| Number of devices |
32 Modbus |
| Exact time for 1 Kinstruction |
83 ns |
| Local signalling |
1 LED (green) for processor running (RUN), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for I/O module fault (I/O), 1 LED (yellow) for channel 0 operating (CH0), 1 LED (yellow) for channel 1 operating (CH1) |
| Marking |
CE |
| Current consumption |
500 mA at 5 V DC |
| Module format |
Standard |
| Product mounting |
35 mm symmetrical DIN rail |
| Height |
60.6 mm |
| Width |
144 mm |
| Depth |
53.47 mm |
| Net weight |
0.159 kg |
| Material |
Lexan |
| Dielectric strength |
0 V not isolated RS485/RS232, 5000 V for 1 minute RS485 |
| Product certifications |
C-Tick, FM |
| Standards |
EN/IEC 61131-2, CSA C22.2 No 142, UL 508 |
| IP degree of protection |
IP20 |
| Shock resistance |
15 gn during 11 ms sinusoidal vibrations |
| Resistance to electrostatic discharge |
6 kV contact conforming to EN/IEC 61131-2 zone B, 6 kV contact conforming to IACS E10, 8 kV on air conforming to EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields |
15 V/m 80…2700 MHz conforming to EN/IEC 61000-4-3 |
| Ambient air temperature for operation |
0…60 °C |
| Ambient air temperature for storage |
-40…85 °C |
| Relative humidity |
5…96 % |
| Operating altitude |
<= 2000 m |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
7.500 cm |
| Package 1 Width |
11.100 cm |
| Package 1 Length |
20.500 cm |
| Package 1 Weight |
236.000 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
8 |
| Package 2 Height |
30.000 cm |
| Package 2 Width |
30.000 cm |
| Package 2 Length |
40.000 cm |
| Package 2 Weight |
2.374 kg |
