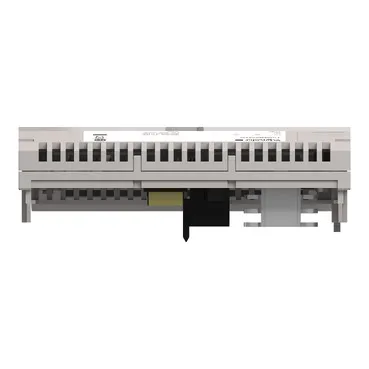

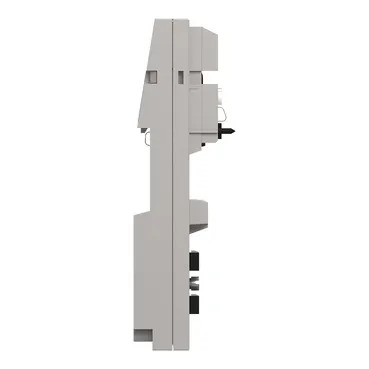

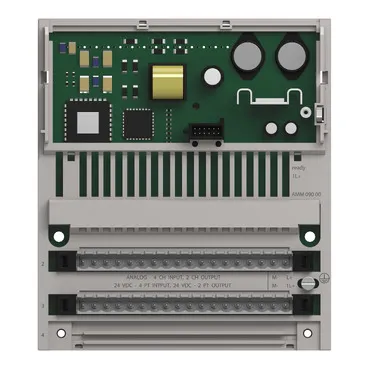

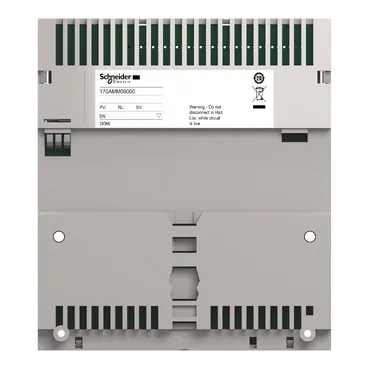

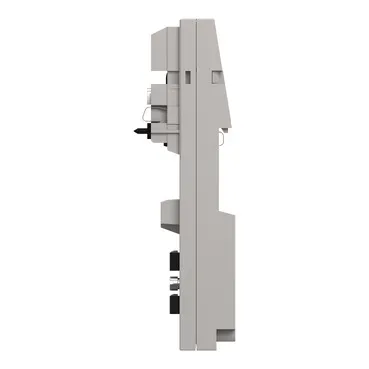

Schneider Electric 170ANR12090
distributed analog/discrete I/O Modicon Momentum
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range of product |
Modicon Momentum automation platform |
|---|---|
| Product or component type |
Analogue,discrete I/O base |
| Group of channels |
1 group of 8 discrete outputs, 2 groups of 4 discrete inputs, 1 group of 6 analog inputs, 1 group of 4 analog outputs |
| Analogue input range |
0…10 V |
| Analogue input type |
Single ended |
| Analogue input resolution |
14 bits 0…10 V |
| Discrete input voltage |
24 V DC |
| Analogue output range |
0…10 V 14 bits |
| Discrete output voltage |
10…30 V |
| Output short-circuit protection |
With discrete output |
| Output overload protection |
With discrete output |
| Discrete input number |
8 conforming to IEC 1131-2 Type 2 |
| [Us] rated supply voltage |
24 V (19.2…30 V)DC |
| Maximum analogue input voltage |
15 V |
| Input voltage limits |
3…32 V |
| Discrete input logic |
Positive |
| Voltage state 0 guaranteed |
<= 5 V for discrete input |
| Voltage state 1 guaranteed |
>= 11 V for discrete input |
| Current state 0 guaranteed |
<= 2 mA (discrete input) |
| Current state 1 guaranteed |
>= 6 mA (discrete input) |
| Input overvoltage protection |
45 V 10 s discrete input |
| Input resistance |
1 MOhm analogue input circuit |
| Output load |
>= 2 kOhm 0…10 V analogue output |
| Conversion time |
0.75 ms analogue input circuit, 1.2 ms analogue output |
| Conversion error |
+/- 0.4 % 0…10 V 25 °C analogue output, 0,002 0…10 V 25 °C analogue input circuit |
| Fail state |
For analogue output: hold, For analogue output: reset to zero |
| Discrete output type |
Transistor |
| Discrete output logic |
Positive |
| Discrete output current |
2 A per group, 2 A per module, 0.25 A per point |
| Maximum leakage current |
0.4 mA DC 30 V discrete output |
| Maximum voltage drop |
<0.4 V 0.25 A at state on discrete output |
| Surge current |
2.5 A 1 ms discrete output |
| Response time |
1.05 ms from state 1 to state 0 for discrete output, 1.2 ms from state 0 to state 1 for discrete input, 1.2 ms from state 0 to state 1 for discrete output, 1.2 ms from state 1 to state 0 for discrete input |
| Isolation voltage |
500 V (duration = 1 min) between analogue I/O and operating voltage, 500 V (duration = 1 min) between operating voltage and I/O from ground |
| Maximum power dissipation in W |
6 W |
| Marking |
CE |
| Local signalling |
4 LEDs for channel status |
| Electrical connection |
2 connectors for removable terminal blocks |
| Current consumption |
400 mA at 24 V DC |
| Depth |
47.5 mm |
| Height |
125 mm |
| Width |
141.5 mm |
| Net weight |
0.24 kg |
| Product certifications |
UL, CSA |
| Protective treatment |
TC |
| Resistance to electrostatic discharge |
4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields |
10 V/m 80…1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation |
0…60 °C |
| Ambient air temperature for storage |
-40…85 °C |
| Relative humidity |
95 % without condensation |
| Operating altitude |
<= 5000 m |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
5.500 cm |
| Package 1 Width |
18.000 cm |
| Package 1 Length |
26.000 cm |
| Package 1 Weight |
391.000 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
30.000 cm |
| Package 2 Width |
30.000 cm |
| Package 2 Length |
40.000 cm |
| Package 2 Weight |
4.281 kg |
| Warranty |
18 months |
