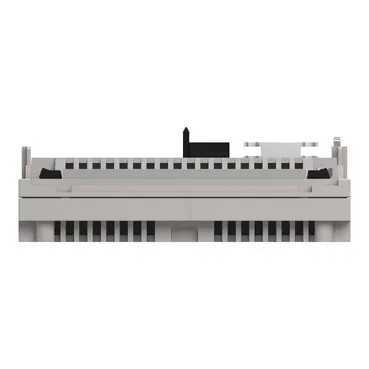

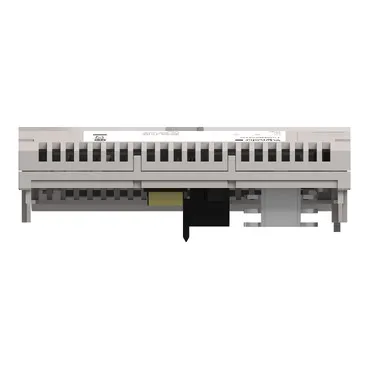

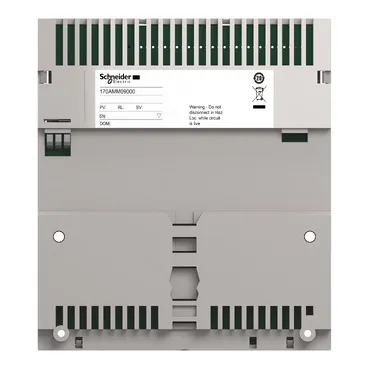

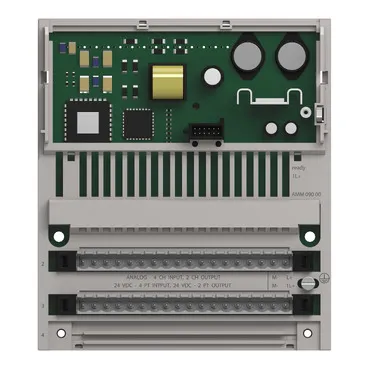

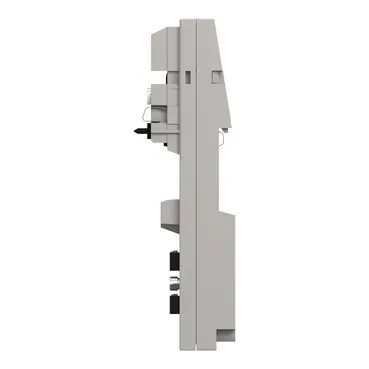

Schneider Electric 170AMM09000
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 disc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic. It is an analogue/discrete module with a rated supply voltage of 24V DC, a discrete output current of 1A per point, 2A per group, 2A per module and a maximum power dissipation of 6W. It is furnished with 2 connectors for removable terminal blocks. Analogue input range of this product is ±10V, ±20mA, ±5V, 1V to 5V, 4mA to 20mA and analogue output range is ±10V 12bit and 0mA to 20mA 12bit. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height) and weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specification
| Range of product |
Modicon Momentum automation platform |
|---|---|
| Product or component type |
Analogue,discrete I/O base |
| Group of channels |
1 group of 2 discrete outputs, 1 group of 4 discrete inputs, 1 group of 4 analog differential inputs, 1 group of 2 analog outputs |
| Analogue input range |
+/- 10 V, +/- 20 mA, +/- 5 V, 1…5 V, 4…20 mA |
| Analogue input type |
Differential |
| Analogue input resolution |
12 bits 1…5 V, 12 bits 4…20 mA, 13 bits +/- 20 mA, 13 bits +/- 5 V, 14 bits +/- 10 V |
| Discrete input voltage |
24 V DC |
| Analogue output range |
+/- 10 V 12 bits, 0…20 mA 12 bits |
| Discrete output voltage |
<= 30 V |
| Output short-circuit protection |
With discrete output |
| Output overload protection |
With discrete output |
| Discrete input number |
4 conforming to IEC 1131-2 Type 1 |
| [Us] rated supply voltage |
24 VDC |
| Conversion consistency |
+/- 0.02 % +/- 10 V analogue input circuit, +/- 0.04 % +/- 20 mA analogue input circuit, +/- 0.04 % +/- 5 V analogue input circuit, +/- 0.04 % 1…5 V analogue input circuit, +/- 0.04 % 4…20 mA analogue input circuit |
| Common mode rejection |
> 54 dB analogue input circuit |
| Input voltage limits |
< 30 V |
| Discrete input logic |
Positive |
| Voltage state 0 guaranteed |
-3…5 V for discrete input |
| Voltage state 1 guaranteed |
11…30 V for discrete input |
| Current state 0 guaranteed |
<= 1.2 mA (discrete input) |
| Current state 1 guaranteed |
>= 2.5 mA (discrete input) |
| Input overvoltage protection |
-50…50 V <= 100 s analogue input circuit, -30…30 V 24 V analogue input circuit |
| Input resistance |
1 MOhm analogue input circuit, 4 kOhm discrete input |
| Output load |
<= 600 Ohm 0…20 mA analogue output, >= 3 kOhm +/- 10 V analogue output |
| Conversion time |
1 ms analogue output, 10 ms analogue input circuit |
| Conversion error |
+/- 0.35 % +/- 10 V 25 °C analogue output, +/- 0.35 % 0…20 mA 25 °C analogue output, +/- 0.70 % +/- 10 V 60 °C analogue output, +/- 0.70 % 0…20 mA 60 °C analogue output, 0,0008 +/- 10 V 25 °C analogue input circuit, 0,0015 +/- 10 V 60 °C analogue input circuit, 0,0016 +/- 20 mA 25 °C analogue input circuit, 0,0016 +/- 5 V 25 °C analogue input circuit, 0,0016 1…5 V 25 °C analogue input circuit, 0,0016 4…20 mA 25 °C analogue input circuit, 0,003 +/- 20 mA 60 °C analogue input circuit, 0,003 +/- 5 V 60 °C analogue input circuit, 0,003 1…5 V 60 °C analogue input circuit, 0,003 4…20 mA 60 °C analogue input circuit |
| Fail state |
For analogue input circuit: hold, For analogue input circuit: reset to zero |
| Discrete output type |
Transistor |
| Discrete output logic |
Positive |
| Discrete output current |
1 A per point, 2 A per group, 2 A per module |
| Maximum leakage current |
1 mA DC 24 V discrete output |
| Maximum voltage drop |
<0.5 V 1 A at state on discrete output |
| Operating rate |
100 cyc/s resistive 1 A discrete output, 1000 cyc/h inductive 1 A discrete output, 8 cyc/s tungsten <2.4 W discrete output |
| Response time |
< 0.1 ms from state 0 to state 1 for discrete output, < 0.1 ms from state 1 to state 0 for discrete output, 2.2 ms from state 0 to state 1 for discrete input, 3.3 ms from state 1 to state 0 for discrete input |
| Isolation voltage |
500 V (duration = 1 min) between analogue I/O and operating voltage, 500 V (duration = 1 min) between operating voltage and I/O from ground |
| Maximum power dissipation in W |
6 W |
| Marking |
CE |
| Local signalling |
8 LEDs for channel status |
| Electrical connection |
2 connectors for removable terminal blocks |
| Current consumption |
<= 350 mA at 24 V DC, 200 mA at 24 V DC |
| Depth |
47.5 mm |
| Height |
125 mm |
| Width |
141.5 mm |
| Net weight |
0.24 kg |
| Product certifications |
UL, CSA, FM Class 1 Division 2 |
| Protective treatment |
TC |
| Resistance to electrostatic discharge |
4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields |
10 V/m 80…1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation |
0…60 °C |
| Ambient air temperature for storage |
-40…85 °C |
| Relative humidity |
95 % without condensation |
| Operating altitude |
<= 5000 m |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
5.500 cm |
| Package 1 Width |
18.000 cm |
| Package 1 Length |
26.000 cm |
| Package 1 Weight |
412.000 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
30.000 cm |
| Package 2 Width |
30.000 cm |
| Package 2 Length |
40.000 cm |
| Package 2 Weight |
4.780 kg |
| Warranty |
18 months |
