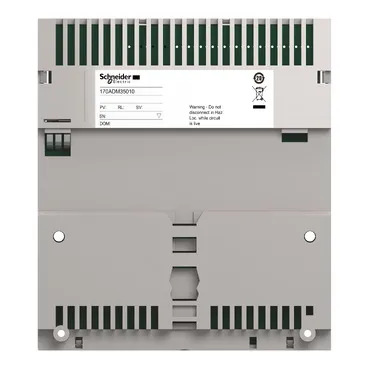

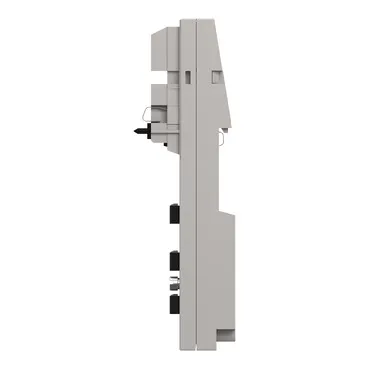

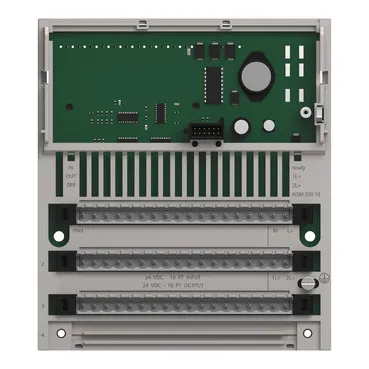

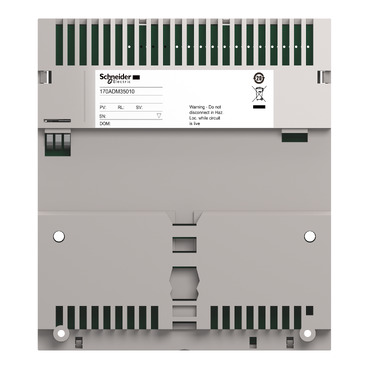

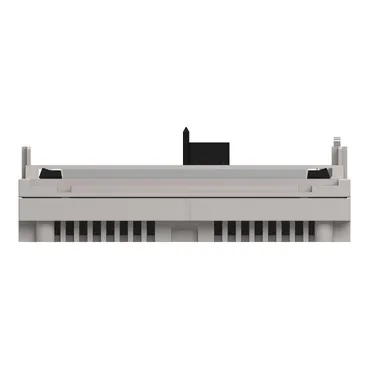

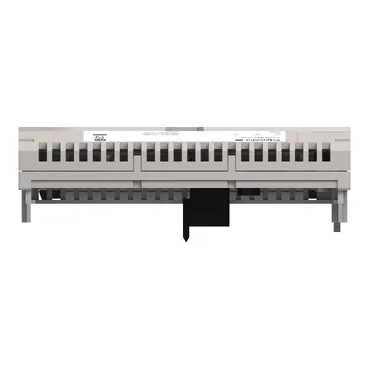

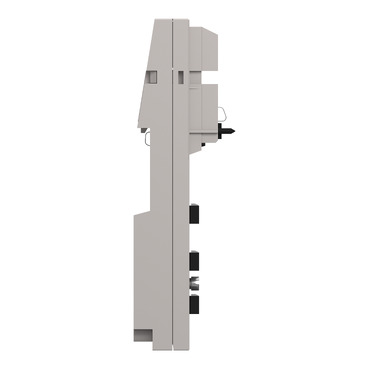

Schneider Electric 170ADM35010
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups of 8 solid state outputs with sink (positive) discrete logic. It is an I/O module with a rated supply voltage of 24V DC, an input/output voltage of 24V DC, a current consumption of 250mA at 24V DC and a power dissipation of 8W. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height) and weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specification
| Range of product | Modicon Momentum automation platform |
|---|---|
| Product or component type | Discrete solid state I/O base DC |
| Group of channels | 2 groups of 8 outputs, 1 group of 16 inputs |
| Discrete input number | 16 conforming to IEC 1131-2 Type 1 |
| Discrete input logic | Positive |
| Discrete input voltage | 24 V DC |
| Discrete output number | 16 |
| Discrete output type | Solid state switch |
| Discrete output voltage | <= 30 V DC, 24 V DC |
| Discrete output logic | Positive |
| Protective treatment | TC |
| [Us] rated supply voltage | 24 V DC |
| Input voltage limits | – 3…30 V |
| Voltage state 0 guaranteed | -3…5 V |
| Voltage state 1 guaranteed | 11…30 V |
| Current state 0 guaranteed | <= 1.2 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Input resistance | 4 kOhm |
| Discrete output current | 4 A per group, 8 A per module, 0.5 A per point |
| Maximum leakage current | 1 mA at 24 V (output circuit) |
| Peak output current | 5 A |
| Maximum voltage drop | <0.5 V 0.5 A at state 1 output circuit |
| Fault type | Overload on output |
| Response time | < 0.1 ms from state 0 to state 1 on output, < 0.1 ms from state 1 to state 0 on output, 2.2 ms from state 0 to state 1 on input, 3.3 ms from state 1 to state 0 on input |
| Isolation between channels and bus | 500 V AC |
| Power dissipation | 6 W, <= 8 W |
| Marking | CE |
| Terminals description PLC n°1 | (L+)PW_POS, (8)IN_DIS#8, (6)IN_DIS#6, (5)IN_DIS#5, TB, (2)IN_DIS#2, (12)IN_DIS#12, (M-)PW_NEG, (15)IN_DIS#15, (13)IN_DIS#13, (10)IN_DIS#10, (3)IN_DIS#3, (9)IN_DIS#9, (7)IN_DIS#7, (1)IN_DIS#1, (11)IN_DIS#11, (14)IN_DIS#14, (16)IN_DIS#16, (4)IN_DIS#4 |
| Terminals description PLC n°2 | (10)OUT_DIS#10, (6)OUT_DIS#6, (8)OUT_DIS#8, (1)OUT_DIS#1, (11)OUT_DIS#11, (4)OUT_DIS#4, (5)OUT_DIS#5, (15)OUT_DIS#15, (2L+)PW_POS, TB_1, (7)OUT_DIS#7, (2)OUT_DIS#2, (14)OUT_DIS#14, (9)OUT_DIS#9, (13)OUT_DIS#13, (3)OUT_DIS#3, (1L+)PW_POS, (12)OUT_DIS#12 |
| Local signalling | 16 LEDs for channel status |
| Current consumption | 250 mA at 24 V DC |
| Depth | 47.5 mm |
| Height | 141.5 mm |
| Width | 125 mm |
| Net weight | 0.2 kg |
| Product certifications | UL, CSA |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.900 cm |
| Package 1 Width | 18.200 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 406.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.407 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 46.000 kg |
| Warranty | 18 months |
