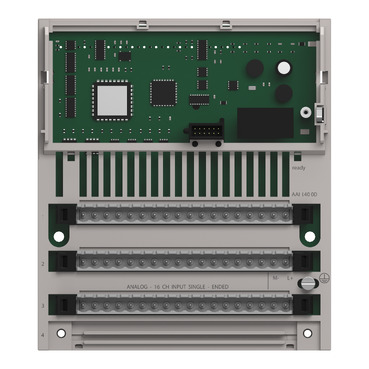

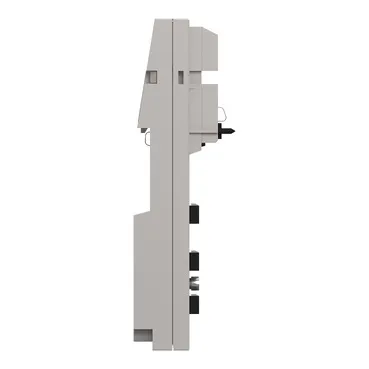

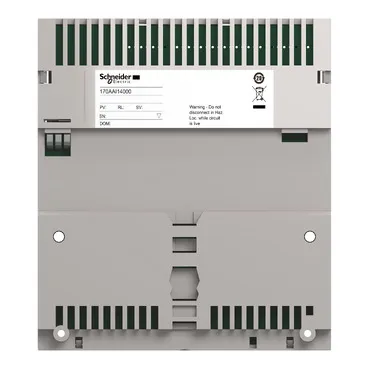

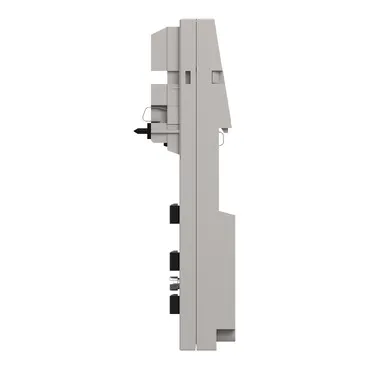

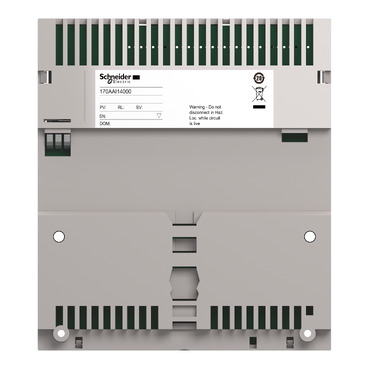

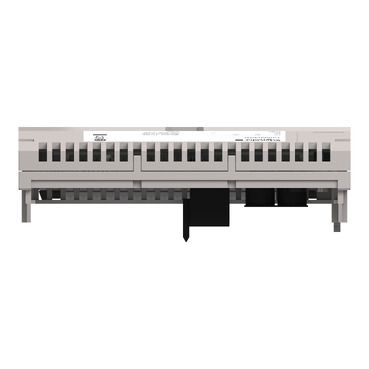

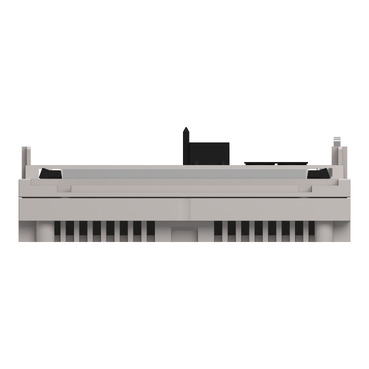

Schneider Electric 170AAI14000
This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input ranges from 4mA to 20mA, ±10V, ±5V. There is an isolation between channels and ground at 1780V AC, supply and ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 16 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. It is suitable for infrastructures and energy, material handling and simple machine control applications. This product is certified by CE, CSA, FM Class 1 Division 2 and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snaps together in various combinations to form versatile control systems or subsystems.
Specification
| Range of product |
Modicon Momentum automation platform |
|---|---|
| Product or component type |
Analogue input base |
| Analogue input number |
16 |
| Analogue input type |
Single ended |
| Analogue input range |
4…20 mA 12 bits < 0.25 Ohm, +/- 10 V 12 bits + sign > 2200 kOhm, +/- 5 V 12 bits + sign > 2200 kOhm |
| Type of filter |
Low pass input filter 10 kHz |
| Data format |
Full 16 bits signed |
| Absolute accuracy error |
+/- 0.15 % of full scale 25 °C +/- 10 V, +/- 0.15 % of full scale 25 °C +/- 5 V, +/- 0.25 % full scale 25 °C 4…20 mA, +/- 0.25 % full scale 60 °C +/- 10 V, +/- 0.25 % full scale 60 °C +/- 5 V, +/- 0.45 % full scale 60 °C 4…20 mA |
| Temperature drift |
30 %oFS/°C +/- 10 V 60 °C, 30 %oFS/°C +/- 5 V 60 °C, 60 %oFS/°C 4…20 mA 60 °C |
| Full scale |
10 V +/- 10 V, 16 mA 4…20 mA, 5 V +/- 5 V |
| Update time |
25 ms |
| Isolation between channels and ground |
1780 V AC for 1 minute |
| Isolation between supply and ground |
500 V for 1 minute |
| Permissible common mode voltage |
100 V 47…63 Hz DC between channels to ground, 250 V 47…63 Hz AC between channels to ground |
| External power requirement |
+/- 30 V DC |
| Maximum power dissipation in W |
5.55 W |
| Reverse polarity protection |
Internal |
| Protection type |
Internal 2 A slow-blow |
| Associated fuse rating |
500 mA, fast blow |
| Marking |
CE |
| Local signalling |
16 LEDs for channel status |
| Electrical connection |
2 connectors for removable terminal blocks |
| Current consumption |
305 mA at 24 V DC |
| Depth |
47.5 mm |
| Height |
125 mm |
| Width |
141.5 mm |
| Net weight |
0.215 kg |
| Product certifications |
UL, FM Class 1 Division 2, CSA |
| Protective treatment |
TC |
| Resistance to electrostatic discharge |
4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields |
10 V/m 80…1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation |
0…60 °C |
| Ambient air temperature for storage |
-40…85 °C |
| Relative humidity |
95 % without condensation |
| Operating altitude |
<= 5000 m |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
5.5 cm |
| Package 1 Width |
18.0 cm |
| Package 1 Length |
26.0 cm |
| Package 1 Weight |
385.0 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
30 cm |
| Package 2 Width |
30 cm |
| Package 2 Length |
40 cm |
| Package 2 Weight |
3.85 kg |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
80 |
| Package 3 Height |
75.0 cm |
| Package 3 Width |
60.0 cm |
| Package 3 Length |
80.0 cm |
| Package 3 Weight |
46 kg |
| Warranty |
18 months |
