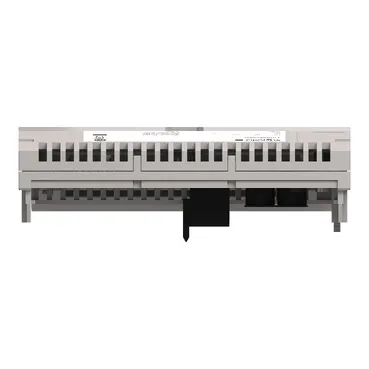

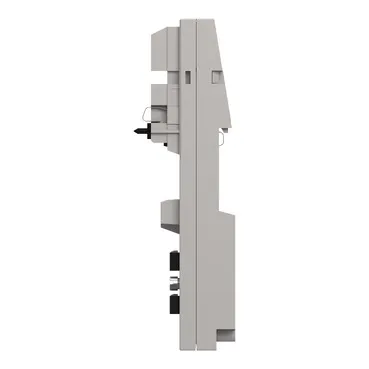

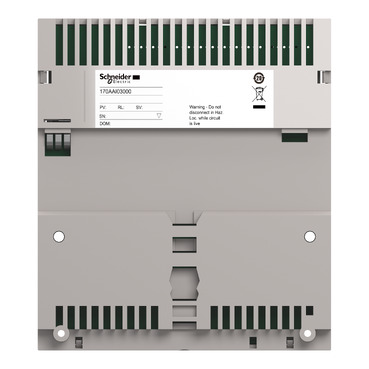

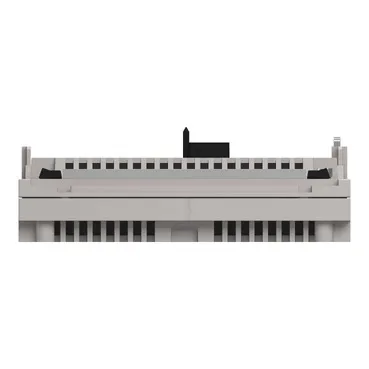

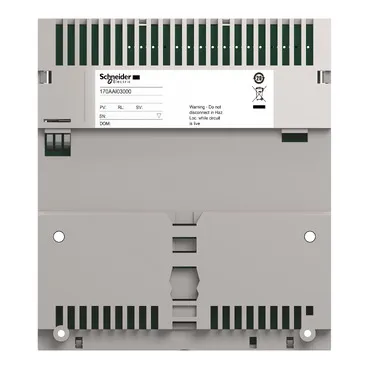

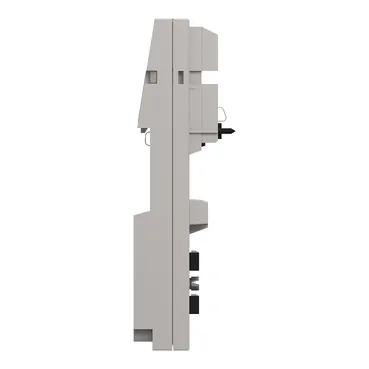

Schneider Electric 170AAI03000

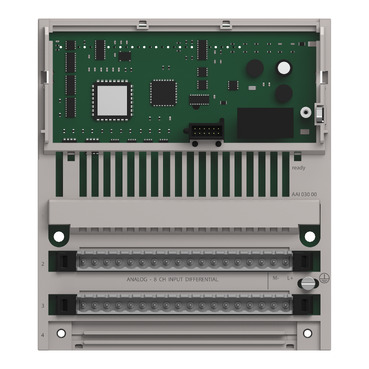

This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 8 inputs with a full 16bit sig…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 8 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±20mA, 4mA to 20mA, ±10V, ±5V and 1V to 5V. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 1 LED for ready and 8 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN 50081-2 and IEC 1131 standards. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specification
| Range of product |
Modicon Momentum automation platform |
|---|---|
| Product or component type |
Analogue input base |
| Analogue input number |
8 |
| Analogue input type |
Differential |
| Analogue input range |
+/- 20 mA 14 bits + sign 250 kOhm, 4…20 mA 15 bits + sign 250 kOhm, +/- 10 V 14 bits + sign > 0.1 kOhm, +/- 5 V 14 bits + sign > 0.1 kOhm, 1…5 V 15 bits + sign > 0.1 kOhm |
| Data format |
Full 16 bits signed |
| Absolute accuracy error |
+/- 0.13 % full scale 25 °C 1…5 V, +/- 0.19 % full scale 60 °C 1…5 V, +/- 0.21 % full scale 25 °C +/- 5 V, +/- 0.26 % full scale 60 °C +/- 5 V, +/- 0.27 % full scale 25 °C +/- 10 V, +/- 0.27 % full scale 25 °C 4…20 mA, +/- 0.32 % full scale 25 °C +/- 20 mA, +/- 0.32 % full scale 60 °C +/- 10 V, +/- 0.38 % full scale 60 °C 4…20 mA, +/- 0.41 % full scale 60 °C +/- 20 mA |
| Conversion time |
12 ms 8 |
| Isolation between channels |
+/- 200 V DC for 1 minute |
| Isolation between channels and ground |
500 V AC for 1 minute |
| Isolation between channels and bus |
500 V AC for 1 minute |
| Permissible common mode voltage |
100 V 47…63 Hz DC between channels to ground, 250 V 47…63 Hz AC between channels to ground |
| Common mode rejection |
> 80 dB between channels to ground |
| External power requirement |
< 382 mA DC, 20.4…28.8 V DC, 24 V DC |
| Reverse polarity protection |
Internal |
| Marking |
CE |
| Local signalling |
1 LED (green) for ready, 8 LEDs for channel status |
| Electrical connection |
2 connectors for removable terminal blocks |
| Depth |
47.5 mm |
| Height |
125 mm |
| Width |
141.5 mm |
| Net weight |
0.215 kg |
| Standards |
EN 50081-2, IEC 1131 |
| Product certifications |
FM Class 1 Division 2, CSA, UL |
| Protective treatment |
TC |
| Resistance to electrostatic discharge |
4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields |
10 V/m 80…1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation |
0…60 °C |
| Ambient air temperature for storage |
-40…85 °C |
| Relative humidity |
95 % without condensation |
| Operating altitude |
<= 5000 m |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
5.500 cm |
| Package 1 Width |
18.000 cm |
| Package 1 Length |
26.000 cm |
| Package 1 Weight |
400.000 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
30.000 cm |
| Package 2 Width |
30.000 cm |
| Package 2 Length |
40.000 cm |
| Package 2 Weight |
4.421 kg |
| Warranty |
18 months |
