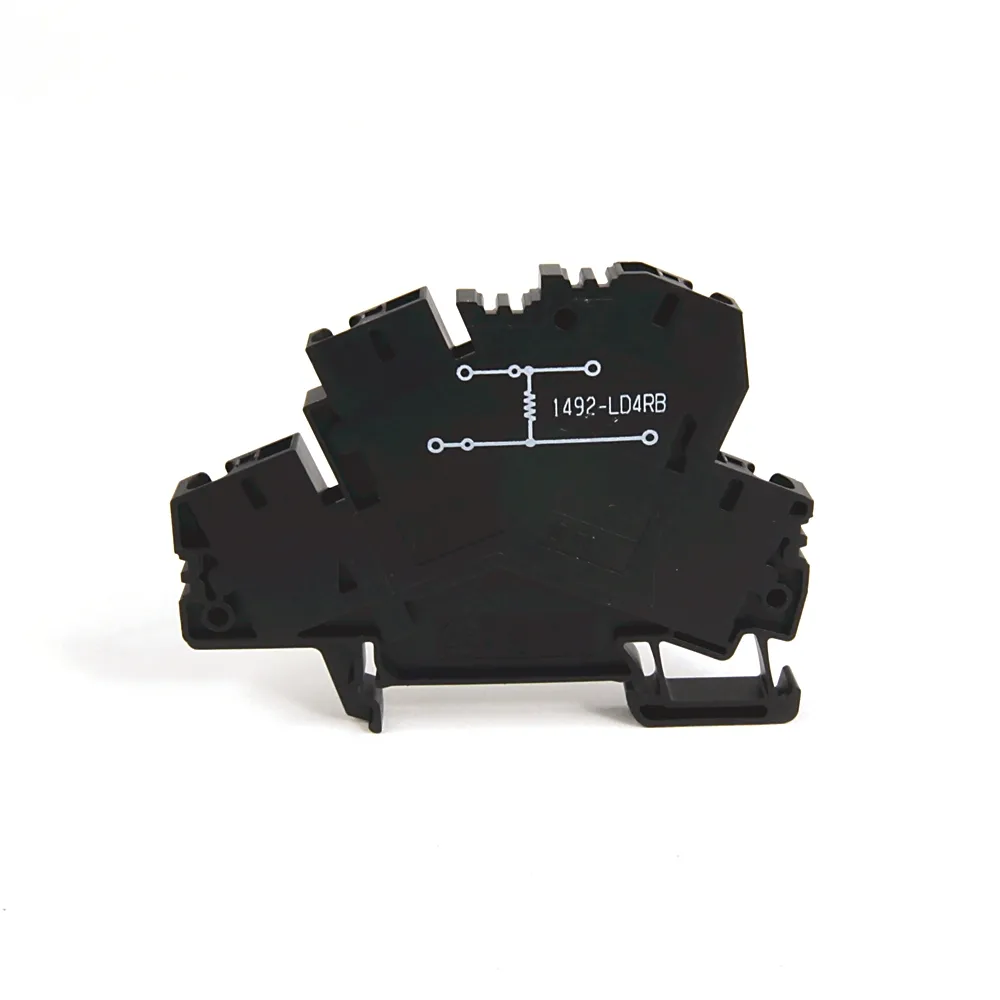

Rockwell Automation / Allen-Bradley 1492-LD4RB822
Terminal Block, Resistor, 8.25K Ohms
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Spring Clamp Terminal Block,Two-Circuit Feed-Through Block,4 mm (# 22 AWG – # 10 AWG) or 2.5 mm (# 22 AWG – # 12 AWG),Two level block with a selectable metal oxide film resistor value between the 2 levels,Black (Standard),8200 Ohm Resistance
Specification
| Hazardous Location Product Required? |
No |
|---|---|
| Base Block Style |
Internal Component Blocks |
| Base Block Type |
Two-Circuit Feed-Through Block |
| Features |
Two level block with a selectable metal oxide film resistor value between the 2 levels |
| Maximum Wire Size & Rating |
UL: 26-10 AWG (25A @600V AC/DC) CSA: 26-10 AWG (30A @600V AC/DC) IEC: 4mm² (32A @152V AC/DC) |
| Color |
Black (Standard) |
| Resistor Value |
8200 Ohm Resistance |
