Pepperl Fuchs WCS3B-LS410

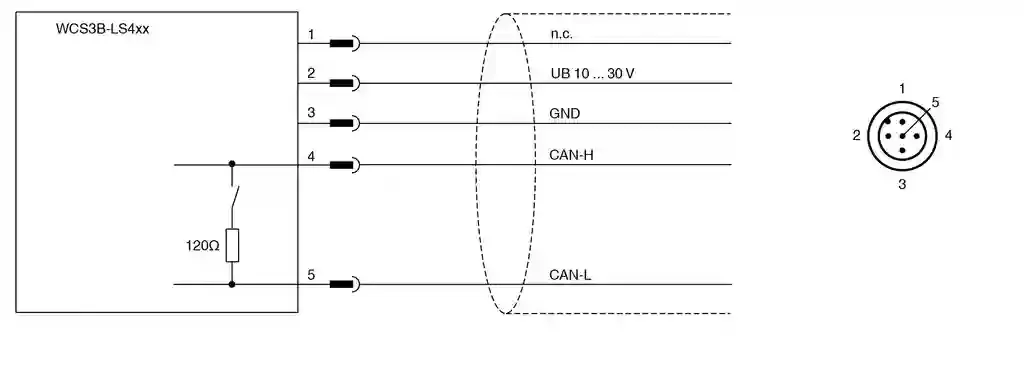

Read head. CANopen interface, Non-contact, absolute position encoder, Automatic detection of dirt accumulation, Output of position and speed. Passage speed: ≤ 12.5 m/s. Measuring length: max. 314.5 m. Free tolerances to code rail: horizontal: 31 mm ( ± 15.5 mm )vertical: 28 mm ( ± 14 mm ). Resolution: ± 0.4 mm (1,250 positions/m). MTTFd: 110 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Data flow indicator: LED yellow: data communication active. Error indicator: LED red flashing: read head outside of code rail solid on: internal diagnostic test failed. Operating voltage: 10 … 30 V DC. Power consumption: 2 VA. Interface type: CANopen , galvanically isolated. Data output code: binary code. Transfer rate: max. 1 MBit/s. Termination: switchable. Emitted interference: DIN EN 61000-6-4. Noise immunity: DIN EN 61000-6-2. Shock resistance: DIN EN 60068-2-27, half sine 30 g, 18 ms. Vibration resistance: DIN EN 60068-2-6, sine, 5 g, 10 – 2000 Hz, 10 cycles. CSA approval: cCSAus Certified, General Purpose Class 2 power source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: 0 … 60 °C (32 … 140 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Relative humidity: 90 % , noncondensing. Connection type: 5-pin, M12 x 1 connector. Degree of protection: IP54. Material: . HousingABS , PC (Polycarbonate): . Housing: ABS , PC (Polycarbonate). Mass: 500 g. Dimensions: . Height99 mmWidth90 mmLength115 mm: . Height: 99 mm. Width: 90 mm. Length: 115 mm. Ordering information: Mounting plate included with delivery
