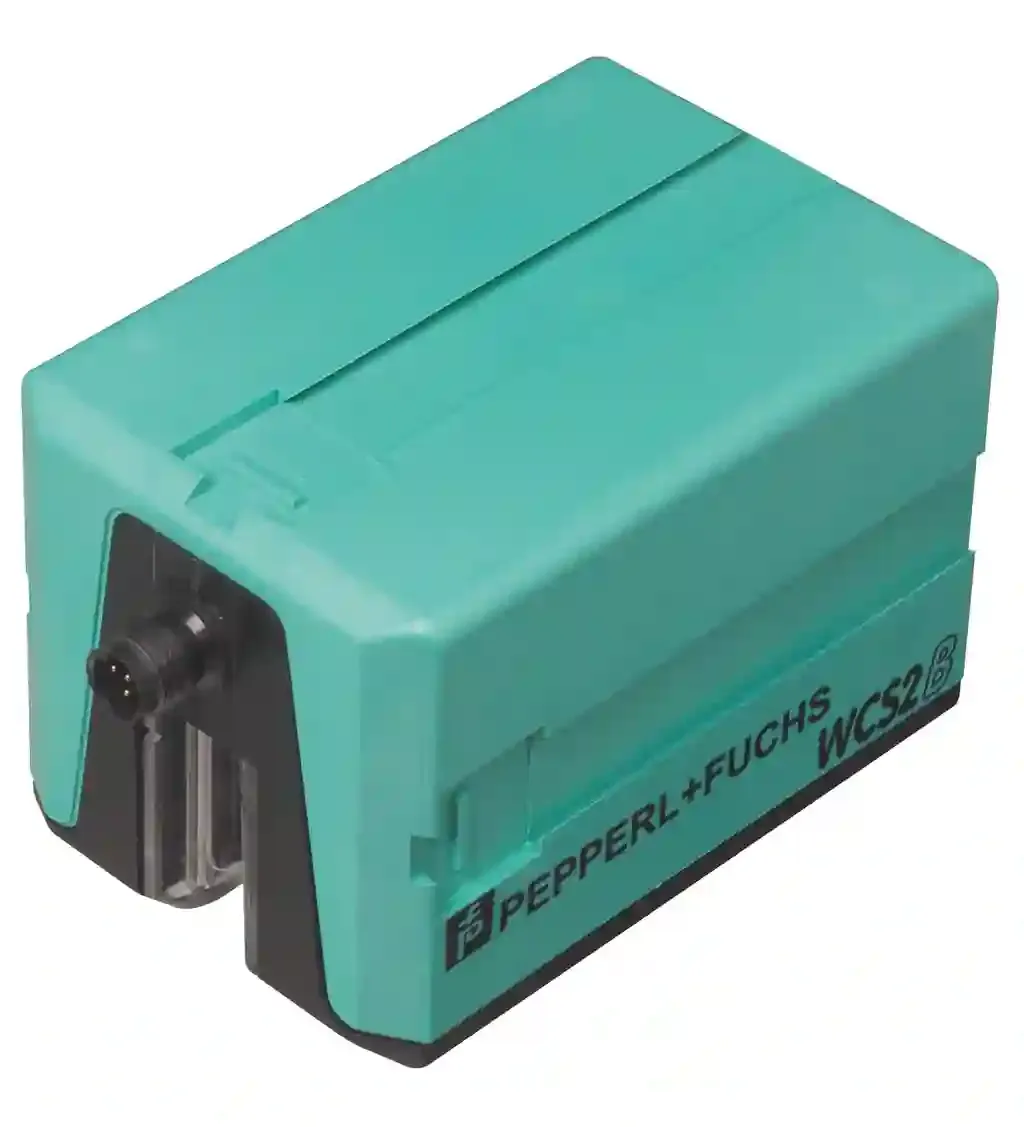

Pepperl Fuchs WCS2B-LS221

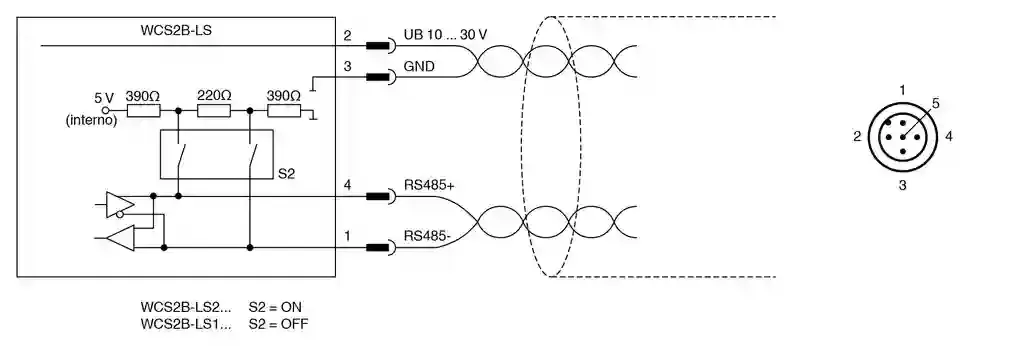

Read head. Read head, RS-485 interface, with RS-485 terminal resistor, RS-485 interface, Non-contact, absolute position encoder, Automatic detection of dirt accumulation. Passage speed: ≤ 12.5 m/s. Measuring length: max. 327 m. Free tolerances to code rail: horizontal: 10 mm ( ± 5 mm )vertical: 10 mm ( ± 5 mm ). Resolution: ± 0.42 mm (1,200 positions/m). MTTFd: 66 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operating voltage: 10 … 30 V DC. Power consumption: 2 VA. Interface type: RS 485 interface. Data output code: binary code. Protocol: 1 , 2. Transfer rate: 62.5 kBit/s. Termination: with RS 485 termination. Emitted interference: DIN EN 61000-6-4. Noise immunity: DIN EN 61000-6-2. Shock resistance: DIN EN 60068-2-27, half sine 30 g, 18 ms. Vibration resistance: DIN EN 60068-2-6, sine, 5 g, 10 – 2000 Hz, 10 cycles. CSA approval: cCSAus Certified, General Purpose Class 2 power source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: 0 … 60 °C (32 … 140 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Relative humidity: 90 % , noncondensing. Connection type: 5-pin, M12 x 1 connector. Degree of protection: IP54. Material: . HousingABS , Polycarbonate , Polyamide (PA): . Housing: ABS , Polycarbonate , Polyamide (PA). Mass: 500 g. Ordering information: Mounting plate included with delivery
