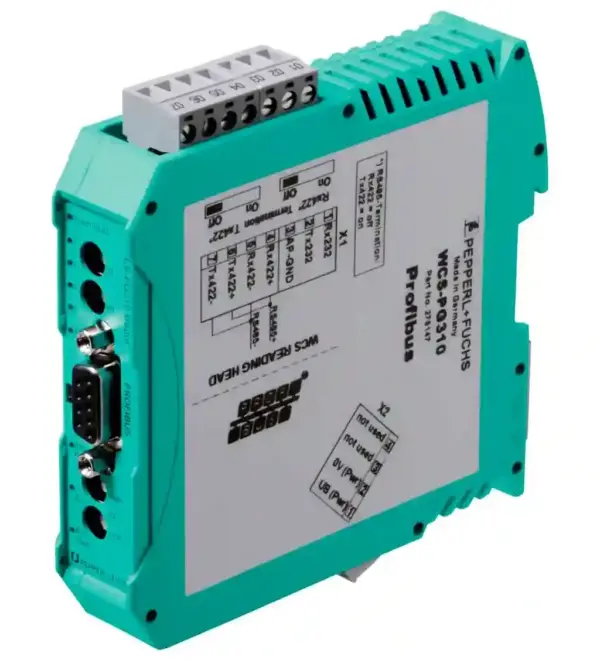

Pepperl Fuchs WCS-PG310

WCS interface module. WCS Profibus interface module, Up to 4 read heads can be connected, DIN rail mounting, Integrated switch, PROFIBUS interface. Installation: DIN rail mounting. MTTFd: 180 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operating voltage: 10 … 30 V DC. Power consumption: ≤ 3.6 W (without read heads). Connection of: control system. Interface type: PROFIBUS DP V1. Transfer rate: max. 12 MBit/s , Automatic baud rate detection. Data output format: binary code. Bus termination resistor: switchable. Connection of: Read head. Connectable read heads: WCS…-LS221 , WCS…-LS121. Interface type: RS-485. Transmission method: half duplex. Transfer rate: 62.5 kBit/s. RS485 termination resistor: switchable. Refresh cycle of read head: 1 ms. Emitted interference: EN 55011, cl. A: 2007. Noise immunity: EN 61000-6-2:2005. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: -40 … 85 °C (-40 … 185 °F) , no moisture condensation. Storage temperature: -40 … 85 °C (-40 … 185 °F). Relative humidity: ≤ 80 %. Connection type: Interface 1: 9-pin Sub-D connector Interface 2: terminal connection ≤ 2.5 mm2 Interface 3: Terminal connection, 2-pin. Degree of protection: IP20. Material: plastic. Installation position: any position. Mass: approx. 130 g. Dimensions: . Height111 mmWidth23 mmDepth117 mm: . Height: 111 mm. Width: 23 mm. Depth: 117 mm
