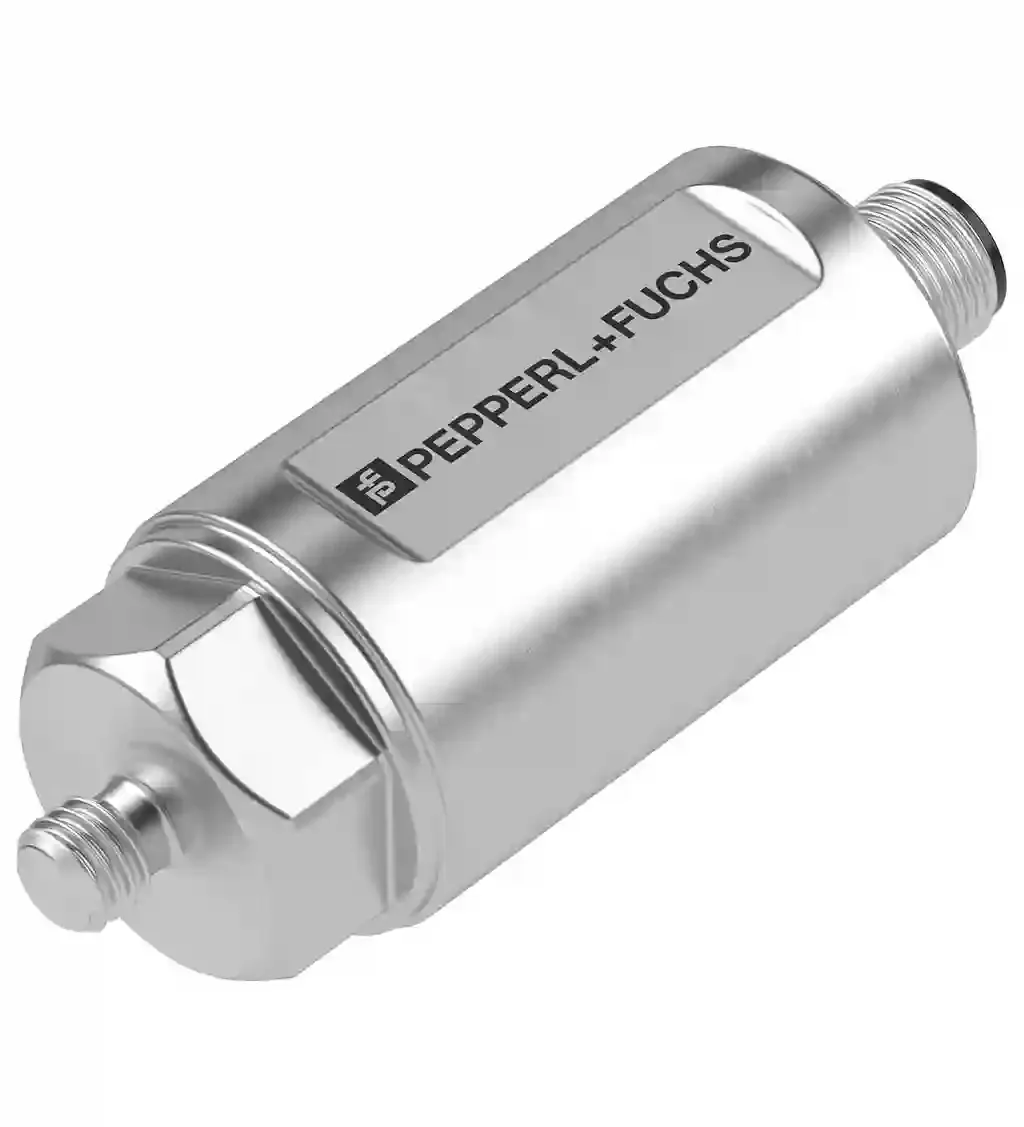

Pepperl Fuchs VIM62PP-E1V16-0PE-I420V15

Vibration sensor. Vibration sensor with analog current output, increased temperature resistance, suitable up to Zone 1/21 with type of protection intrinsic safety, Series: Performance Plus Line, Measured variable: Vibration velocity, Output type: analog output, current output of the vibration variable, Equipment protection level Gb: IECEx CSAE 22.0042X, Equipment protection level Db: IECEx CSAE 22.0042X, Equipment protection level Gb: CSANe 21 ATEX 1074 X, Equipment protection level Db: CSANe 21 ATEX 1074 X. Type: Vibration sensor. Measuring technology: MEMS. Series: Performance Plus Line. Measured variable: Vibration velocity. Measuring range: . Vibration velocityv-rms0 … 16 mm/s: v-rms. Vibration velocity: 0 … 16 mm/s. Measurement accuracy: ± 0.1 mm/s (calibration point: 90% of the measuring range; 159.2 Hz) Complies with the tolerance requirements of DIN ISO 2954 for measuring range greater than 8 mm/s. Cross-sensitivity: < 5 % of the partial lateral acceleration, which acts exactly 90° to the measuring axis. Frequency range: 10 … 1000 Hz. Averaging time: for v-rms: 2 s. Fusing: external fuse is required: 3 A , semi-time-lag , 30 V DC. Operating voltage: 10 … 30 V DC. Current consumption: max. 25 mA. Power consumption: max. 750 mW. Time delay before availability: 10 s (rms filter is calculated intially with measurement data before they are available at the output). Surge protection: up to 2 kV. Output type: analog output, current output of the vibration variable. Output current: 4 … 20 mA. Load resistor: ≤ 500 Ω. Degree of protection: DIN EN 60529, IP66, IP67. Shock resistance: DIN EN 60068-2-27, 60 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 16.5 g, 10 … 1000 Hz. Vibration evaluation: DIN ISO 10816/20816. IECEx approval: . Equipment protection level GbIECEx CSAE 22.0042XEquipment protection level DbIECEx CSAE 22.0042X: . Equipment protection level Gb: IECEx CSAE 22.0042X. Equipment protection level Db: IECEx CSAE 22.0042X. ATEX approval: . Equipment protection level GbCSANe 21 ATEX 1074 XEquipment protection level DbCSANe 21 ATEX 1074 X: . Equipment protection level Gb: CSANe 21 ATEX 1074 X. Equipment protection level Db: CSANe 21 ATEX 1074 X. UL approval: . Ordinary LocationE468231 cULus Listed, Class III Power Source and limited energy , if UL marking is marked on the product. For use in NFPA 70 Applications only. adapters providing field wiring on requestMaximum permissible ambient temperaturemax. 60 °C (max. 140 °F): . Ordinary Location: E468231 cULus Listed, Class III Power Source and limited energy , if UL marking is marked on the product. For use in NFPA 70 Applications only. adapters providing field wiring on request. Maximum permissible ambient temperature: max. 60 °C (max. 140 °F). Ambient temperature: -40 … 60 °C (-40 … 140 °F). Measuring head temperature: -40 … 125 °C (-40 … 257 °F) directly at the mounting point. Storage temperature: -40 … 60 °C (-40 … 140 °F). Connection type: plug. Housing material: Stainless steel 1.4305 / AISI 303. Degree of protection: IP66 / IP67 only in connected state. Connector: . ThreadingM12Number of pins5: . Threading: M12. Number of pins: 5. Mass: approx. 200 g. Dimensions: . Length82.35 mmDiameter31 mm: . Length: 82.35 mm. Diameter: 31 mm. Use in the hazardous area: see instruction manuals Only use accessories specified by the manufacturer.
