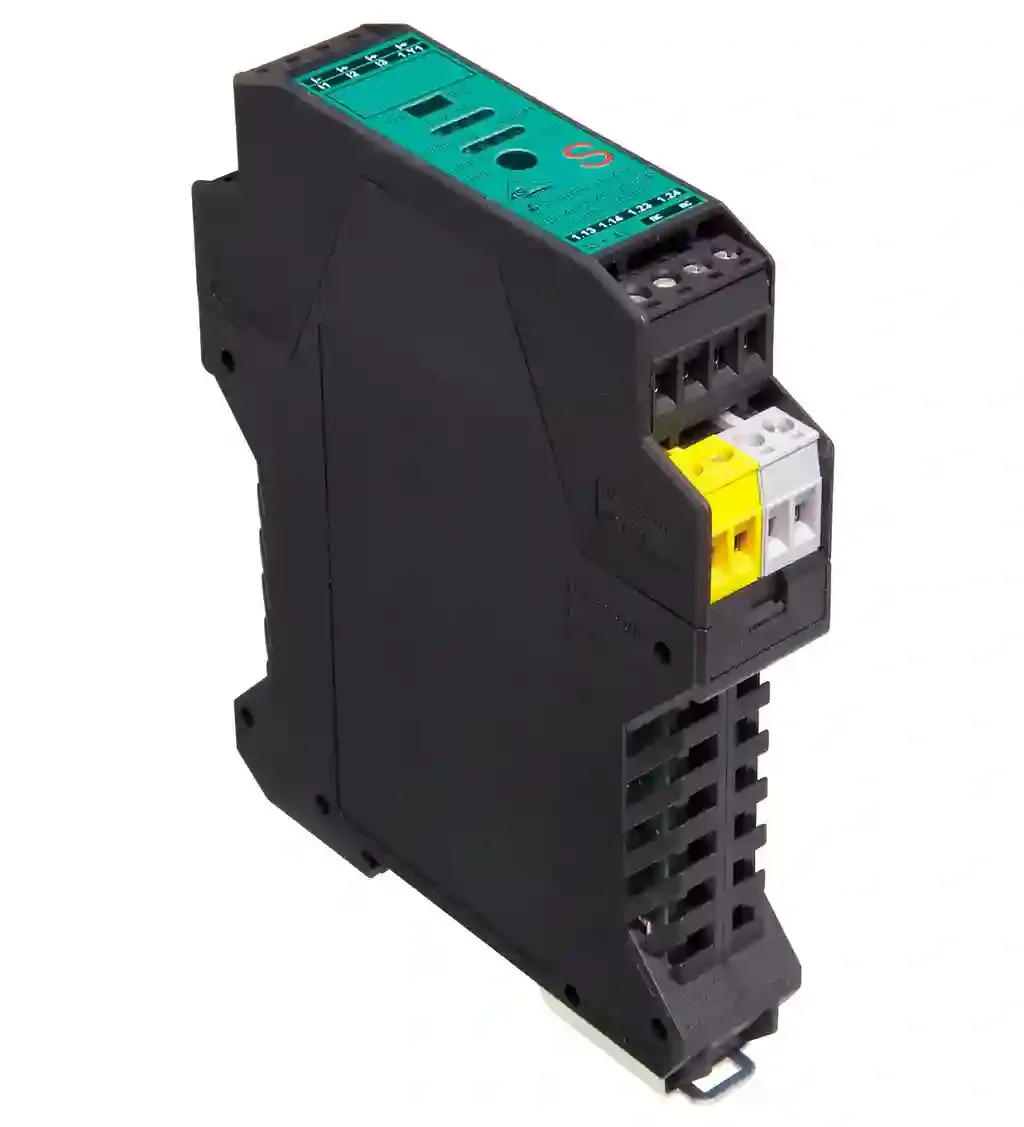

Pepperl Fuchs VBA-4E1A-KE3-ZEJ/SR

AS-Interface safety module. KE3 control cabinet module, 4 inputs, 1 control-safe relay output. Node type: A/B node. AS-Interface specification: V2.1. Required gateway specification: ≥ V2.1. UL File Number: E223772. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. LED FAULT: error display; LED redred: communication error. LED PWR: AS-Interface voltage; LED green. LED IN: switching state (input); 4 LED yellow. LED OUT: For flashing patterns see diagnostics table. LED ALARM: PLC reports alarm; red LED. Auxiliary voltage (input): 12 … 30 V DC PELV. Rated operating voltage: 26.5 … 31.6 V from AS-Interface. Rated operating current: ≤ 30 mA (without sensors) / max. 200 mA. Protection class: III. Surge protection: UEXT, Ue: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 4 inputs for 2- or 3-wire sensors (PNP), DC. Supply: from AS-Interface. Voltage: 21 … 31 V DC. Current loading capacity: ≤ 90 mA, overload- and short-circuit proof (INT). Input current: ≤ 8 mA (limited internally). Sensor supply: ≤ 90 mA. Switching point: according to DIN EN 61131-2 (Type 2). 0 (unattenuated)≤ 2 mA1 (attenuated)≥ 4 mA: . 0 (unattenuated): ≤ 2 mA. 1 (attenuated): ≥ 4 mA. Signal delay: < 2 ms (input/AS-Interface). Signal frequency: ≤ 250 Hz. Number/Type: 1 safety relay output. Supply: from AS-Interface. Nominal load: . Per contact3 A / 24 V DC; 3 A / 230 V AC: . Per contact: 3 A / 24 V DC; 3 A / 230 V AC. Usage category: DC-13 and AC-15. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007. Degree of protection: EN 60529:2000. Input: EN 61131-2. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005 EN 62026-2:2013. Profile: S-7.A.E. IO code: 7. ID code: A. ID1 code: 5 (Can be changed to 7 or F). ID2 code: E. Data bits (function via AS-Interface): InputOutput. D0 E0 LED ALARM Diagnosis (see table Device colors)D1 E1 OUT1 (see P1)D2 E2 -D3 E3 = 1.Y1 -: . D0: E0 LED ALARM Diagnosis (see table Device colors). D1: E1 OUT1 (see P1). D2: E2 -. D3: E3 = 1.Y1 -. Parameter bits (programmable via AS-i): function. P0not usedP1Output linkage:P1 = 1: safe output switches on release.P1 = 0: safe output switches on release and OUT1=1P2ID1=5not usedID1=7 or FP2 = 0 IN3 is inputP2 = 1 IN3 notifies of releaseP3not used: . P0: not used. P1: Output linkage:P1 = 1: safe output switches on release.P1 = 0: safe output switches on release and OUT1=1. P2: ID1=5not usedID1=7 or FP2 = 0 IN3 is inputP2 = 1 IN3 notifies of release. P3: not used. Ambient temperature: 0 … 55 °C (32 … 131 °F). Storage temperature: -25 … 85 °C (-13 … 185 °F). Degree of protection: IP20. Connection: removable terminalsrated connection capacity:rigid/flexible (with and without wire-end ferrules): 0.25 mm2 … 2.5 mm2for multiple-wire connection with two wires of equal cross-section:flexible with twin wire-end ferrules: 0.5 mm2 … 1.5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Dimensions: . Height99 mmWidth22.5 mmLength107 mm: . Height: 99 mm. Width: 22.5 mm. Length: 107 mm. Mounting: DIN mounting rail
