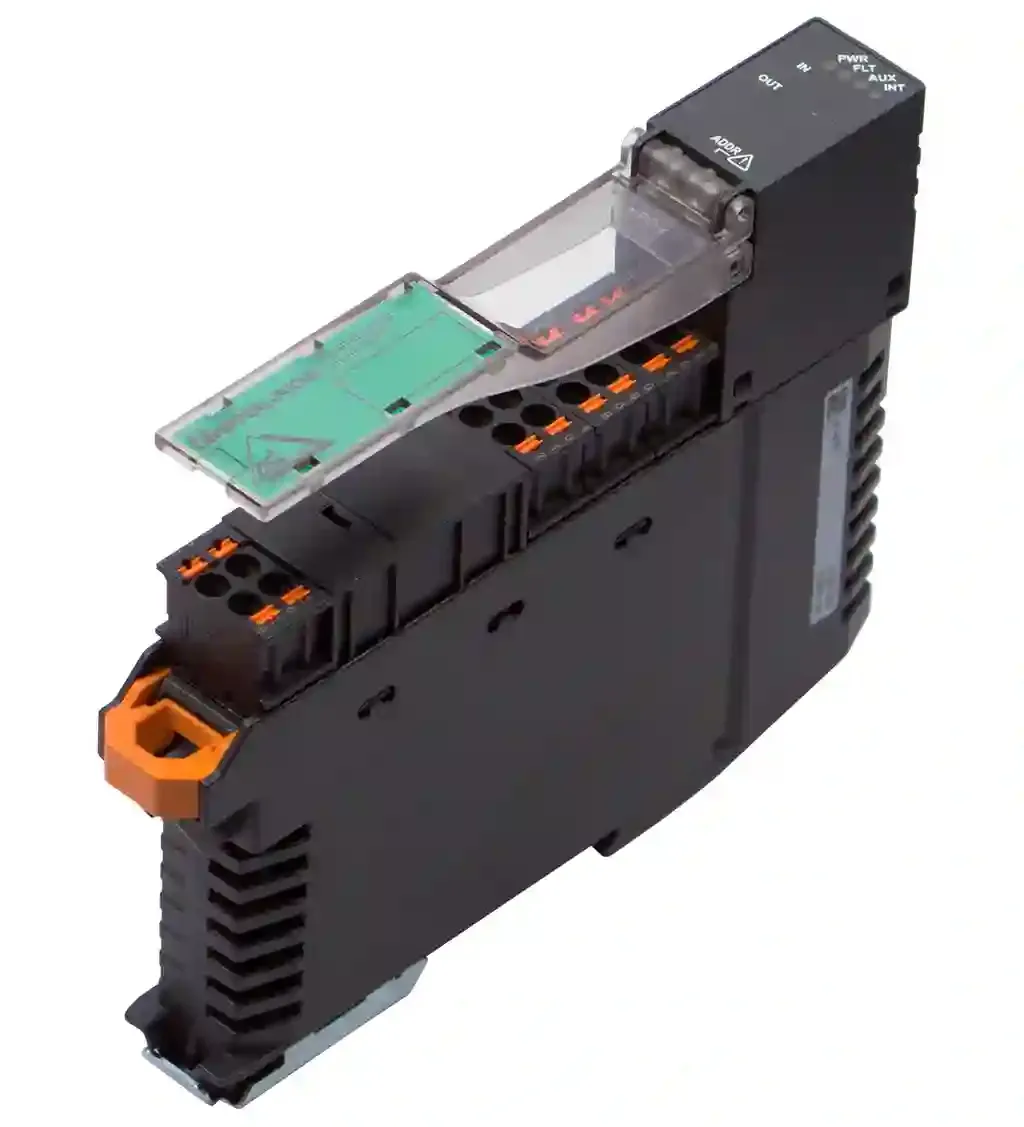

Pepperl Fuchs VBA-4E-KE5-ZEJQ

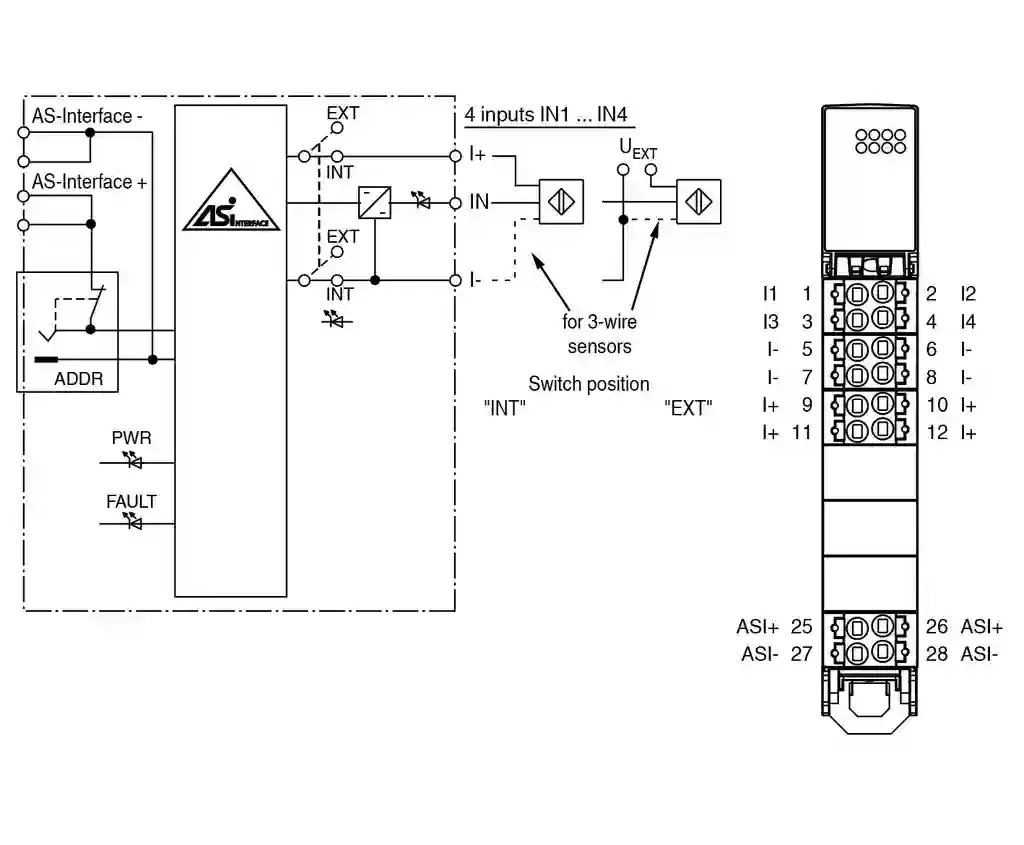

AS-Interface sensor/actuator module. Cabinet module, 4 inputs (PNP). Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V3.0. UL File Number: E223772. MTBF: 368 a. LED FAULT: Fault display; Red LEDred: Communication fault or address is 0red, flashing: Overload, internal input supply. LED INT: Internal input supply active; LED green. LED PWR: AS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0. LED IN: switching state (input); 4 LED yellow. Auxiliary voltage (input): 12 … 30 V DC PELV. Rated operating voltage: 26.5 … 31.6 V from AS-Interface. Rated operating current: ≤ 35 mA (without sensors) / max. 190 mA. Protection class: III. Surge protection: UEXT, Ue: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 4 inputs for 3-wire sensors (PNP), DC. Supply: from AS-Interface (switch position INT, default settings) or external UEXT (switch position EXT). Voltage: 21 … 31 V DC (INT). Current loading capacity: ≤ 150 mA, overload- and short-circuit protected (INT). Input current: ≤ 5.6 mA (max.). Switching point: according to DIN EN 61131-2 (type 1). 0 (unattenuated)≤ 0.5 mA1 (attenuated)≥ 2 mA: . 0 (unattenuated): ≤ 0.5 mA. 1 (attenuated): ≥ 2 mA. Signal delay: < 1 ms (input/AS-Interface). Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2:2004. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013. Profile: S-0.A.0. IO code: 0. ID code: A. ID1 code: 7. ID2 code: 0. Data bits (function via AS-Interface): InputOutput. D0 IN1D1 IN2D2 IN3D3 IN4: . D0: IN1. D1: IN2. D2: IN3. D3: IN4. Parameter bits (programmable via AS-i): function. P0not usedP1Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings)P2Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings)P3not used: . P0: not used. P1: Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings). P2: Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings). P3: not used. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -25 … 85 °C (-13 … 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 15 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm 10 … 57 Hz , 5 g 57 … 150 Hz, 20 cycles. Pollution degree: 2. Degree of protection: IP20 For safety applications: Installation in an enclosure with a minimum protection class of IP54 required. Connection: Removable push-in terminalsrated connection capacity:rigid: 0.20 mm2 … 1.5 mm2flexible (without wire end ferrule): 0.20 mm2 … 2.5 mm2flexible (with wire end ferrule): 0.25 mm2 … 1.5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Mass: 110 g. Dimensions: . Height100 mmWidth18.9 mmLength124 mm: . Height: 100 mm. Width: 18.9 mm. Length: 124 mm. Mounting: DIN mounting rail
