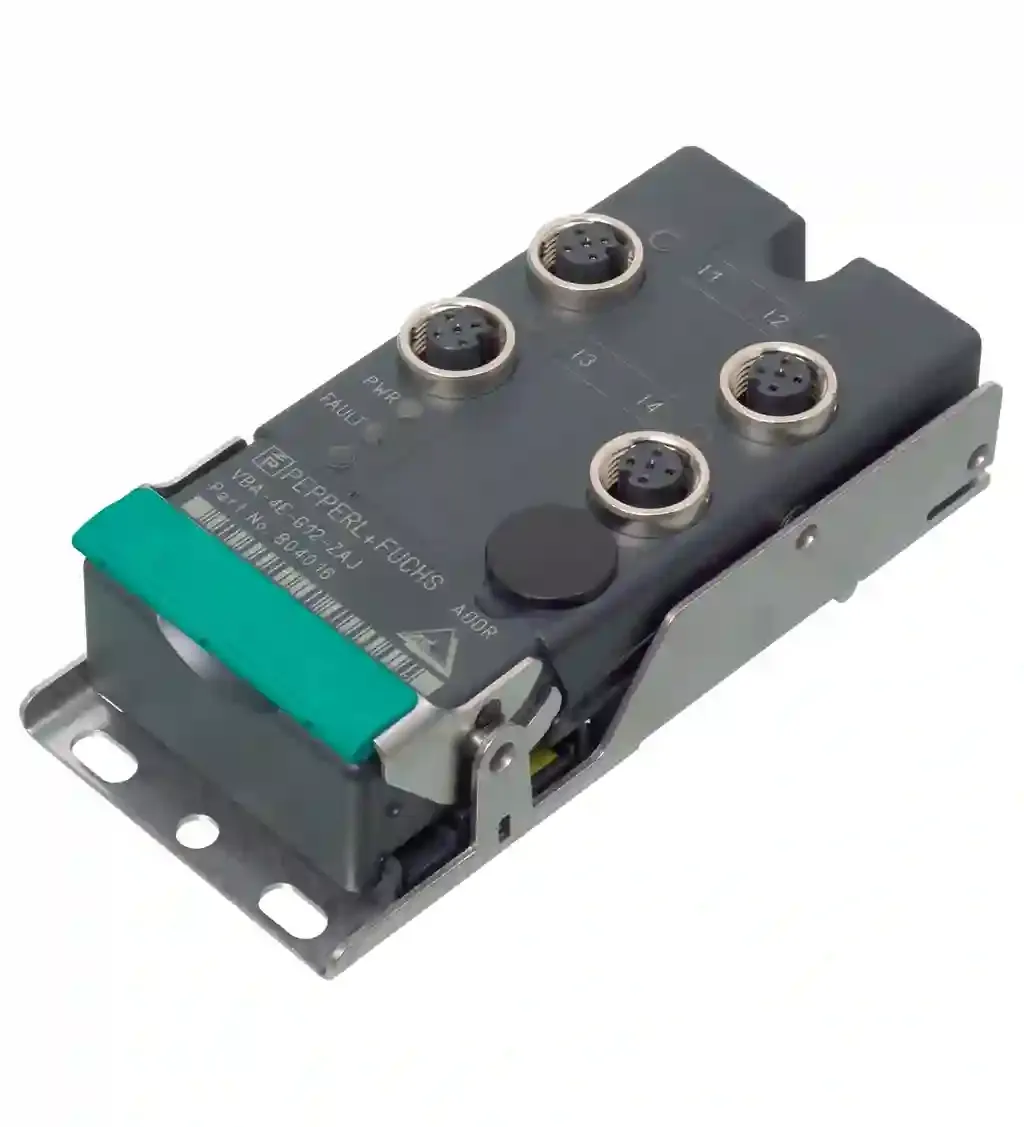

Pepperl Fuchs VBA-4E-G12-ZAJ

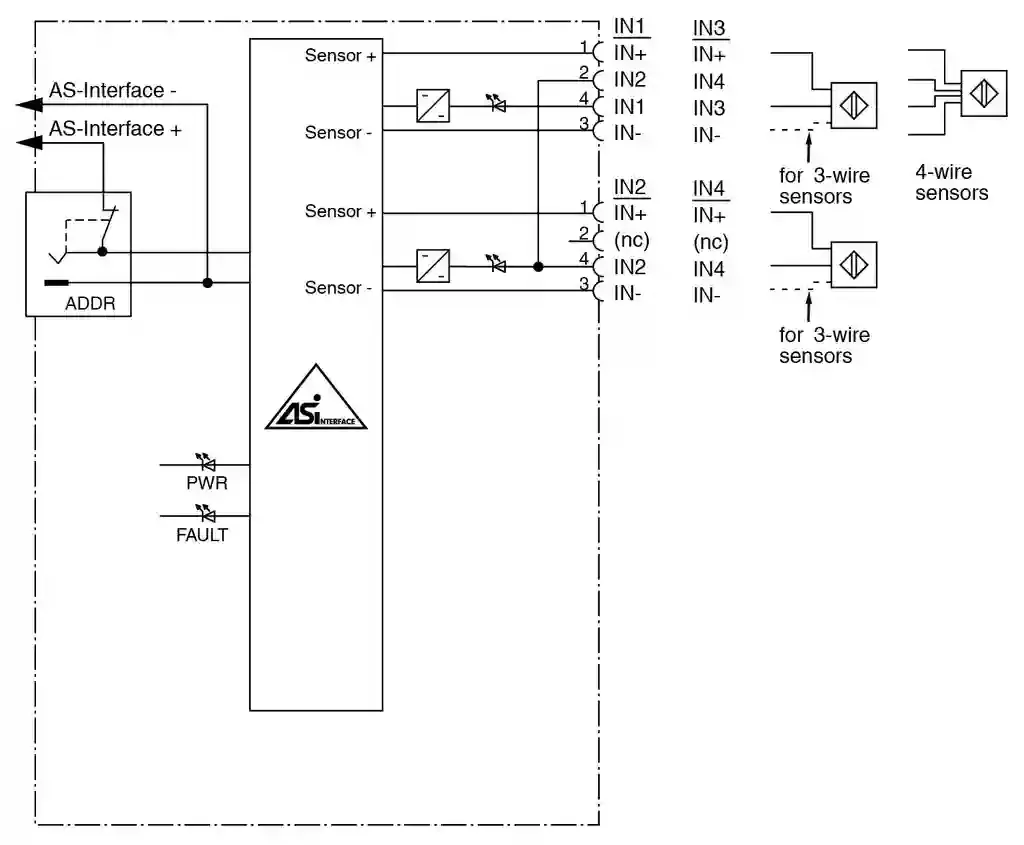

AS-Interface sensor module. G12 flat module, 4 inputs (PNP). Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-0.A.2. IO code0ID codeAID1 code7ID2 code2: . IO code: 0. ID code: A. ID1 code: 7. ID2 code: 2. UL File Number: E223772. LED FAULT: error display; LED redred: communication error or address is 0red flashing: overload of sensor supply. LED PWR: AS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0. LED IN: switching state (input); 4 LED yellow. Rated operating voltage: 26.5 … 31.6 V from AS-Interface. Rated operating current: ≤ 40 mA (without sensors) / max. 240 mA. Protection class: III. Surge protection: Ue: Over voltage category III, safe isolated power supplies (PELV) derived from mains up to 300 V AC line-to-neutral. Number/Type: 4 inputs for 2- or 3-wire sensors (PNP), DC option 2 inputs for 4-wire sensors (PNP), DC. Supply: from AS-Interface. Voltage: 21 … 31 V. Current loading capacity: ≤ 200 mA, overload and short-circuit protected. Input current: ≤ 8 mA (limited internally). Switching point: according to DIN EN 61131-2 (Type 2). 0 (unattenuated)≤ 2 mA1 (attenuated)≥ 6 mA: . 0 (unattenuated): ≤ 2 mA. 1 (attenuated): ≥ 6 mA. Signal delay: < 1 ms (input/AS-Interface). Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005 EN 62026-2:2013. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -25 … 85 °C (-13 … 185 °F). Relative humidity: 85 % , noncondensing. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks. Vibration resistance: 0.75 mm 10 … 57 Hz , 5 g 57 … 150 Hz, 20 cycles. Pollution degree: 3. Degree of protection: IP67. Connection: cable piercing methodflat cable yellowinputs: M12 round connector. Material: . HousingPBT: . Housing: PBT. Mass: 200 g. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height35 mmWidth57.4 mmLength118 mm: . Height: 35 mm. Width: 57.4 mm. Length: 118 mm. Mounting: Mounting plate
