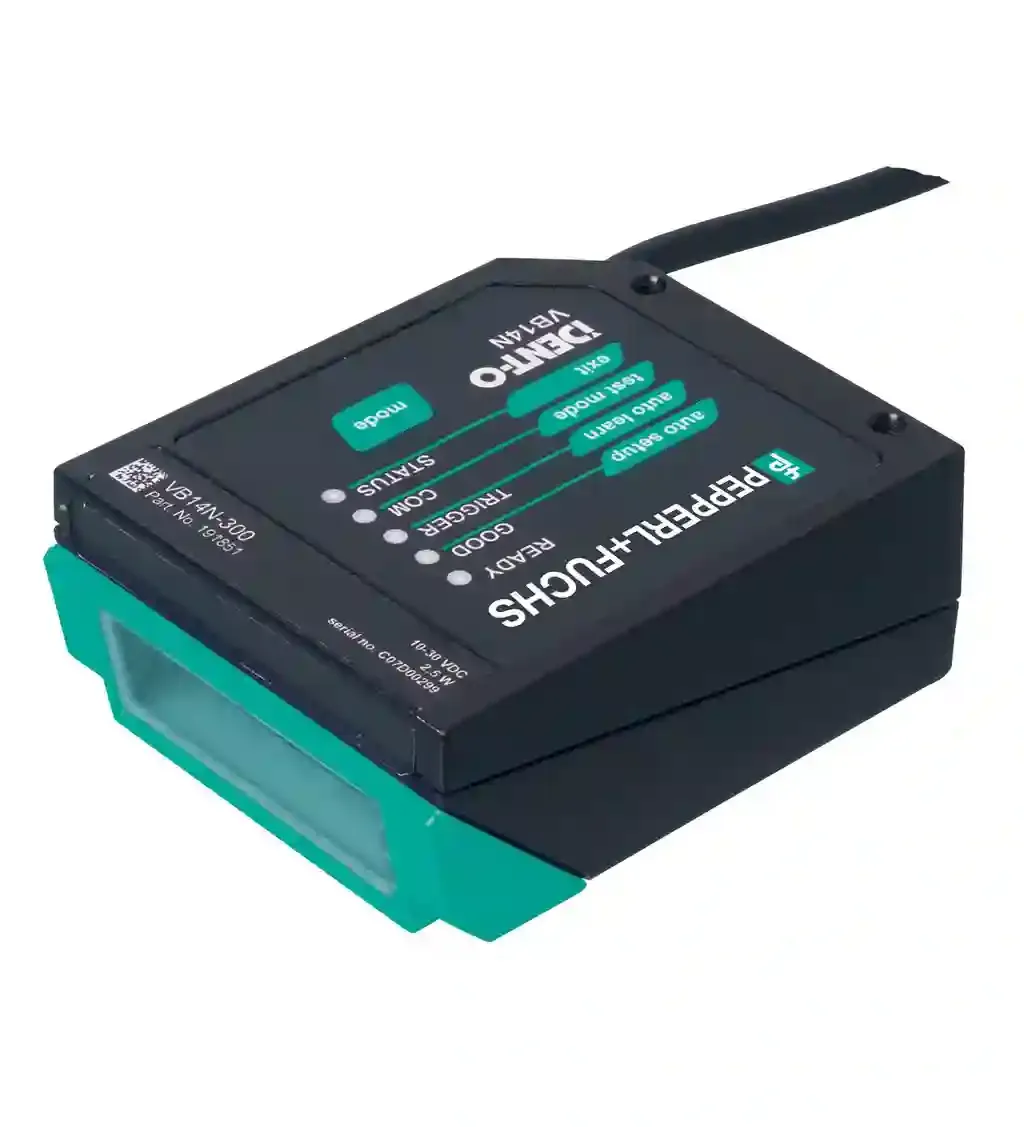

Pepperl Fuchs VB14N-300-R

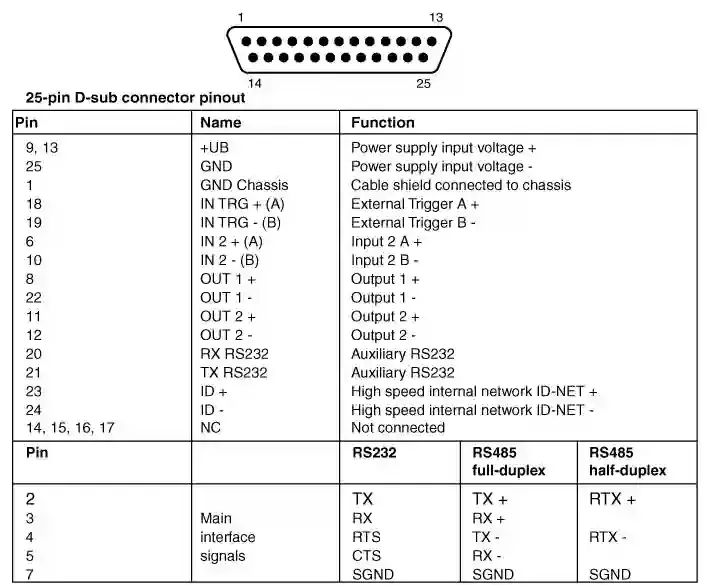

Barcode scanner. Barcode scanner, Grid scanner, Simple operation via function keys: test mode, code teaching and code optimization, Code reconstructor, Connect up to 32 scanners, Sturdy aluminum housing. Light source: laser diode. Light type: modulated visible red light. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class2Wave length650 nmBeam divergence< 1.5 mradPulse length1.3 msRepetition rate200 Hzmax. pulse energy1.19 µJ: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 2. Wave length: 650 nm. Beam divergence: < 1.5 mrad. Pulse length: 1.3 ms. Repetition rate: 200 Hz. max. pulse energy: 1.19 µJ. Scan rate: 500 … 800 s-1. Read distance: 40 … 300 mm. Grid: 18 mm at 300 mm. Opening angle: 50 °. Optical face: front or on side (with deviation mirror). Resolution: 0.2 mm ( 8 mils ). Operation indicator: LED blue: Power on, LED green: Ready to read (READY), LED green: Read successfully (GOOD), LED yellow: External trigger signal pending (TRIGGER), LED yellow: Communication active (COM), LED red: "no read" (STATUS). Operating voltage: 10 … 30 V DC. Power consumption: max. 3 W. Interface type: serial , RS-232 and RS-485 up to 115.2 kBit/s ID-NET™ up to 1 Mbit/s. Input type: External triggering. Signal output: 2, programmable, optocoupled. Switching voltage: max. 40 V DC. Switching current: max. 40 mA. Voltage drop: 1 V at load current ≤ 10 mA. Directive conformity: EMC Directive 2004/108/EC. Standard conformity: . Noise immunityEN 61000-6-2:2005Emitted interferenceEN 55022Degree of protectionEN 60529Laser classIEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007: . Noise immunity: EN 61000-6-2:2005. Emitted interference: EN 55022. Degree of protection: EN 60529. Laser class: IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. Ambient temperature: 0 … 45 °C (32 … 113 °F). Storage temperature: -20 … 70 °C (-4 … 158 °F). Relative humidity: 90 % , noncondensing. Shock resistance: IEC 68-2-27 Test EA 30G; 11 ms; 3 impacts on each axis. Vibration resistance: IEC 68-2-6 Test FC 1.5 mm ; 10 … 55 Hz ; 2 hours on each axis. Degree of protection: IP65. Connection: 1 m cable with 25-pin Sub-D connector. Material: . HousingAluminum: . Housing: Aluminum. Mass: 330 g. Dimensions: . Height34 mmWidth68 mmDepth84 mm: . Height: 34 mm. Width: 68 mm. Depth: 84 mm
