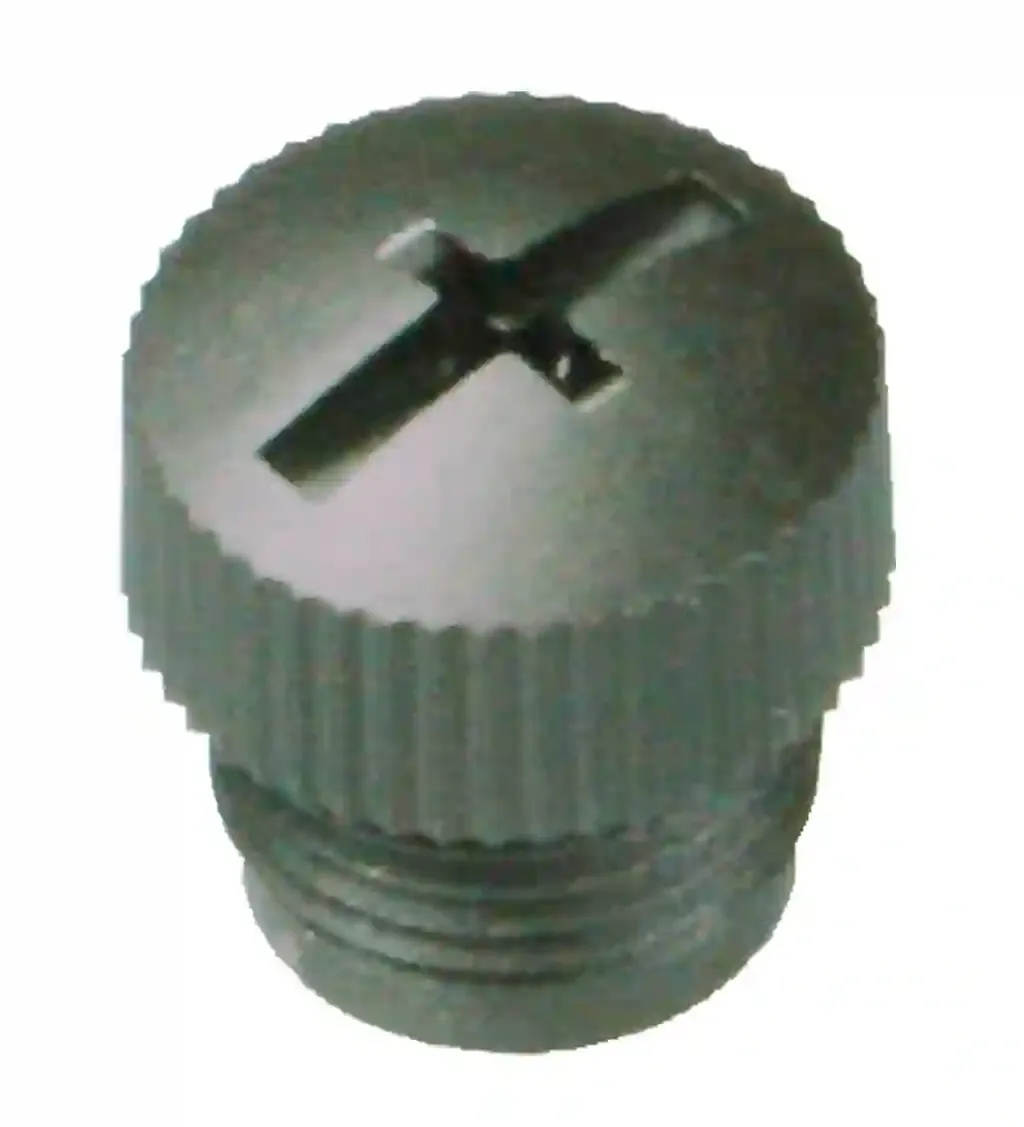

Pepperl Fuchs VAZ-V1-B3
Blind plug. Blind plug for M12 sockets. Protection class: With this blind plug a specified IP protection of up to IP68/69K of a device can be achieved.. Connection: M12 x 1. Material: PA66 GF25, UL94V…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Blind plug. Blind plug for M12 sockets. Protection class: With this blind plug a specified IP protection of up to IP68/69K of a device can be achieved.. Connection: M12 x 1. Material: PA66 GF25, UL94V0. Installation: Phillips screwdriver H3, size 3 Flat-head screwdriver 1.2 x 8 or 1.6 x 10 Knurling tool MH V1-BIT M12. Tightening torque, fastening screws: 0.4 Nm
Specification
Mechanical specifications
| Protection class | With this blind plug a specified IP protection of up to IP68/69K of a device can be achieved. |
|---|---|

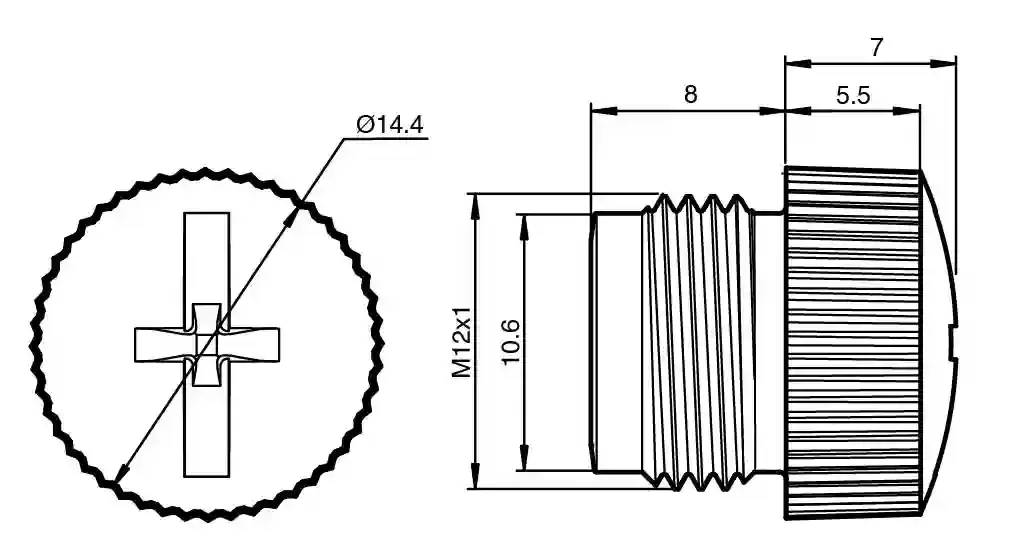

| Connection | M12 x 1 |
| Material | PA66 GF25, UL94V0 |
| Installation | Phillips screwdriver H3, size 3 Flat-head screwdriver 1.2 x 8 or 1.6 x 10 Knurling tool MH V1-BIT M12 |
| Tightening torque, fastening screws | 0.4 Nm |
