Pepperl Fuchs VAZ-PLC-OSC-120UC/48DC/100/SEN
Optocoupler. Optocoupler to convert 120 V inputs to 24 VDC. Description: Optocoupler to convert 120 V inputs to 24 VDC. Voltage: 96 … 132 V AC / 88 … 121 V DC. Input current: 3.5 mA. Signal delay:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optocoupler. Optocoupler to convert 120 V inputs to 24 VDC. Description: Optocoupler to convert 120 V inputs to 24 VDC. Voltage: 96 … 132 V AC / 88 … 121 V DC. Input current: 3.5 mA. Signal delay: 6 ms. Signal frequency: 10 Hz. Current limit: 100 mA. Voltage: 3 … 48 V DC. Current: approx. 0 mA. Voltage drop: ≤ 1 V. Degree of protection: IP20. Connection: Terminals. Dimensions: . Height92.5 mmWidth6.3 mmLength80 mm: . Height: 92.5 mm. Width: 6.3 mm. Length: 80 mm
Specification
General specifications
| Description | Optocoupler to convert 120 V inputs to 24 VDC |
|---|
Input
| Voltage | 96 ... 132 V AC / 88 ... 121 V DC |
|---|---|
| Input current | 3.5 mA |
| Signal delay | 6 ms |
| Signal frequency | 10 Hz |
Output
| Current limit | 100 mA |
|---|---|
| Voltage | 3 ... 48 V DC |
| Current | approx. 0 mA |
| Voltage drop | ≤ 1 V |
Mechanical specifications
| Degree of protection | IP20 |
|---|---|
| Connection | Terminals |

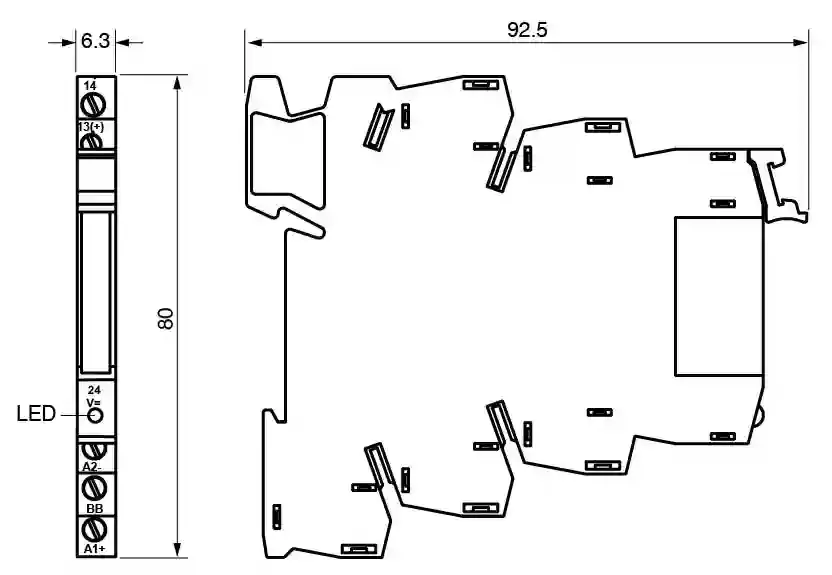

| Dimensions | |
| Height92.5 mmWidth6.3 mmLength80 mm | |
| Height | 92.5 mm |
| Width | 6.3 mm |
| Length | 80 mm |
