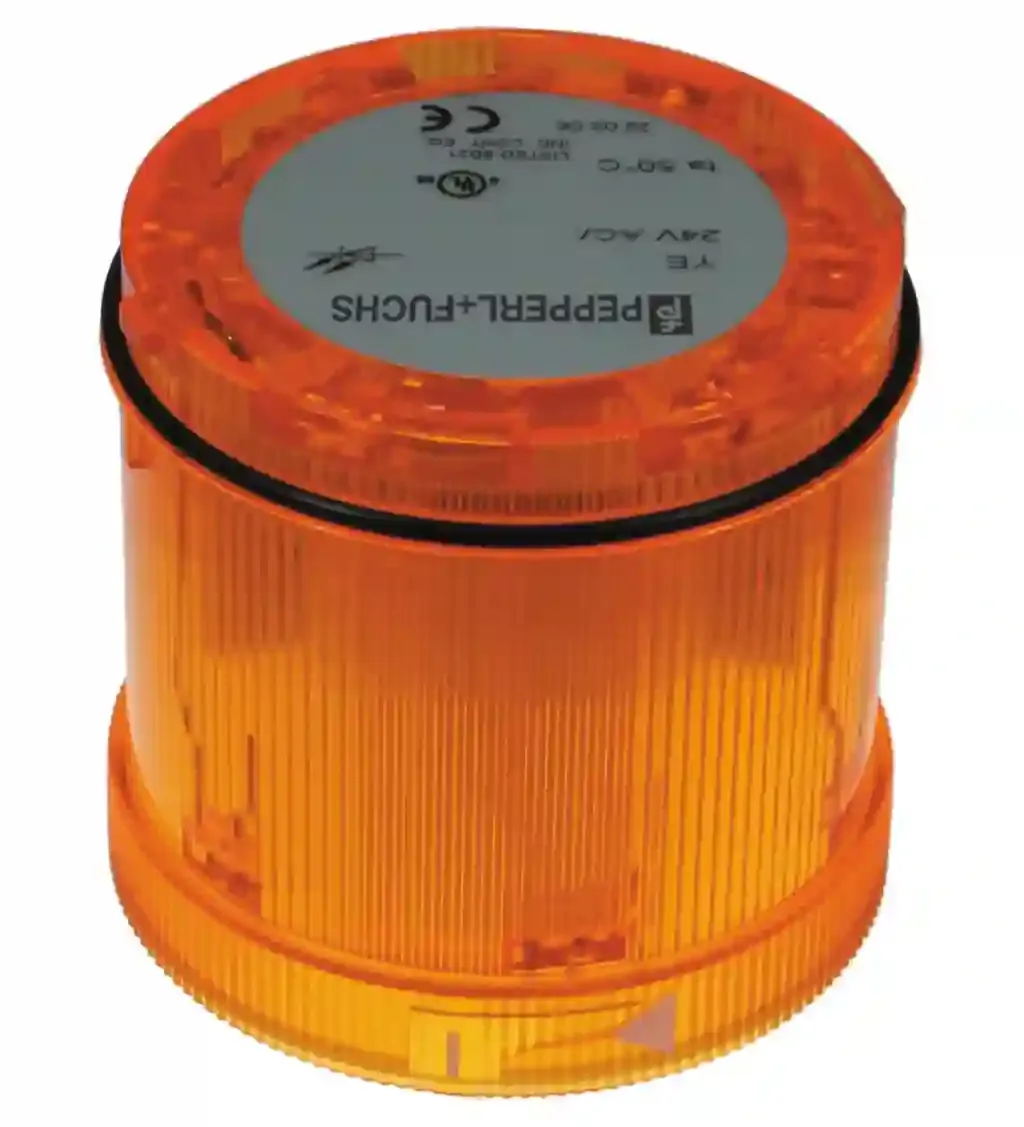

Pepperl Fuchs VAZ-LED-70MM-YE
Stack light LED permanent light element. Stack light LED permanent light element, yellow. UL File Number: E223176. Color: yellow. MTTFd: 8700 a. Rated operating voltage: 24 V AC/DC. Rated operating cu…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Stack light LED permanent light element. Stack light LED permanent light element, yellow. UL File Number: E223176. Color: yellow. MTTFd: 8700 a. Rated operating voltage: 24 V AC/DC. Rated operating current: ≤ 30 mA at 24 V DC 30 mA at 30.5 V (AS-Interface). Protection class: III. Electromagnetic compatibility: . Directive 2014/30/EUEN 60947-5-1 EN 60947-1: . Directive 2014/30/EU: EN 60947-5-1 EN 60947-1. Degree of protection: EN 60529. Ambient temperature: -20 … 50 °C (-4 … 122 °F). Degree of protection: IP65. Connection: Bayonet system. Dimensions: . Height70 mmDiameter70 mm: . Height: 70 mm. Diameter: 70 mm. Life span: Max. 50,000 hours = 5.7 years (continuous operation)
Specification
General specifications
| UL File Number | E223176 |
|---|---|
| Color | yellow |
Functional safety related parameters
| MTTFd | 8700 a |
|---|
Electrical specifications
| Rated operating voltage | 24 V AC/DC |
|---|---|
| Rated operating current | ≤ 30 mA at 24 V DC 30 mA at 30.5 V (AS-Interface) |
| Protection class | III |
Directive conformity
| Electromagnetic compatibility | |
|---|---|
| Directive 2014/30/EUEN 60947-5-1 EN 60947-1 | |
| Directive 2014/30/EU | EN 60947-5-1 EN 60947-1 |
Standard conformity
| Degree of protection | EN 60529 |
|---|
Ambient conditions
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) |
|---|
Mechanical specifications
| Degree of protection | IP65 |
|---|---|
| Connection | Bayonet system |

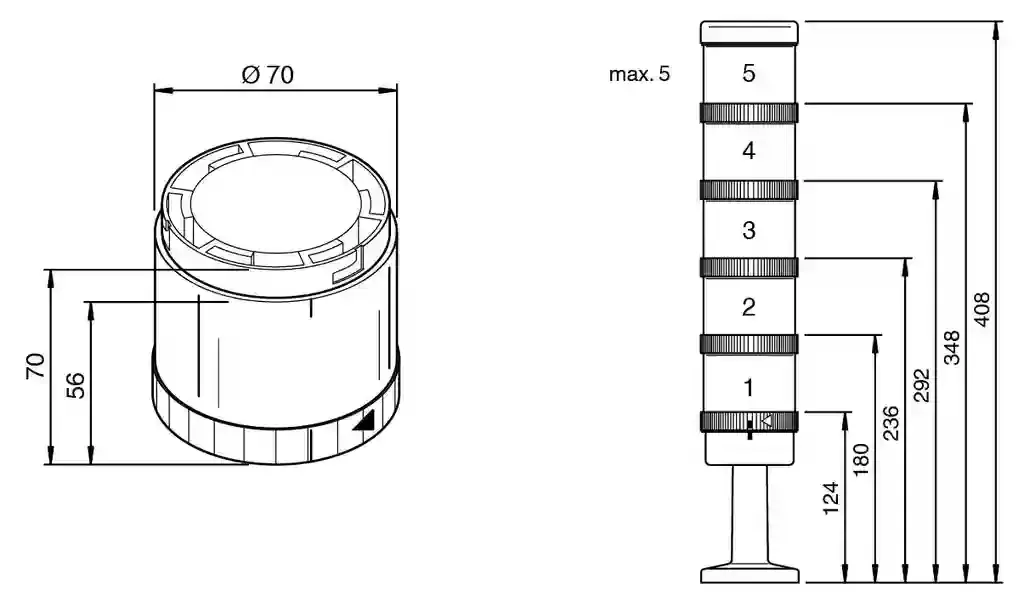

| Dimensions | |
| Height70 mmDiameter70 mm | |
| Height | 70 mm |
| Diameter | 70 mm |
| Life span | Max. 50,000 hours = 5.7 years (continuous operation) |
