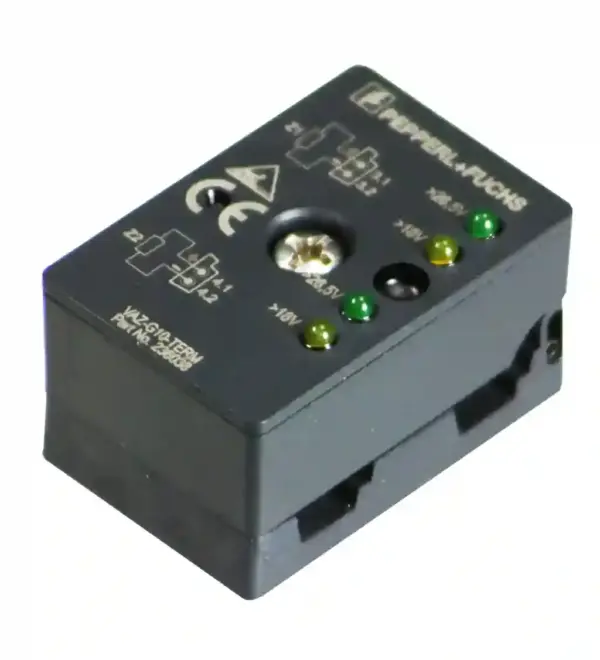

Pepperl Fuchs VAZ-G10-TERM

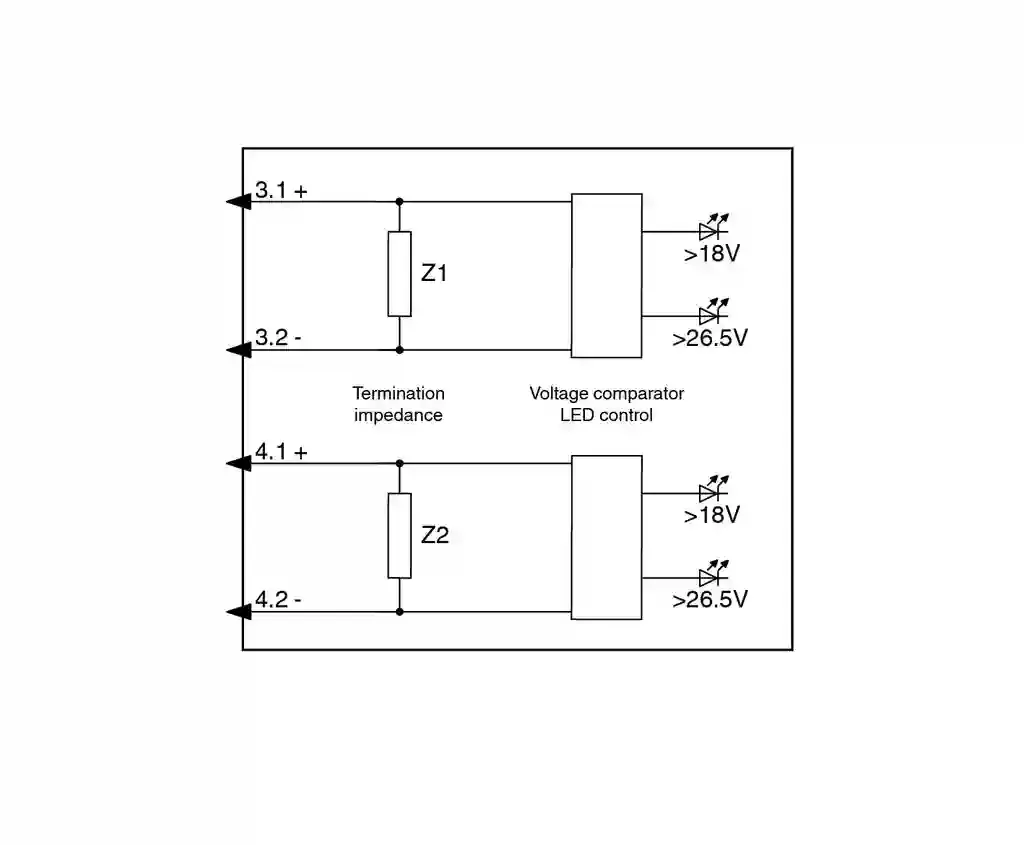

Terminal resistor. Passive bus termination G10. AS-Interface specification: V3.0. UL File Number: E223772 “For use in NFPA 79 Applications only”. LED green: AS-Interface voltage > 26 V: LED lights. LED yellow: AS-Interface voltage > 18.5 V: LED lights. Rated operating voltage: 18.5 … 31.6 V. Rated operating current: ≤ 15 mA per connection. Protection class: III. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013+A1:2019: . Directive 2014/30/EU: EN 62026-2:2013+A1:2019. Directive conformity: . EMC Directive 2004/108/EC: . EMC Directive 2004/108/EC: . Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013+A1:2019. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013+A1:2019. Noise immunity: EN 61000-6-2:2019 , EN 61326-1:2021 , EN 62026-2:2013+A1:2019. UL approval: cULus Listed, Type 1 enclosure. Maximum permissible ambient temperaturemax. 65 °C (max. 149 °F): . Maximum permissible ambient temperature: max. 65 °C (max. 149 °F). Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -25 … 85 °C (-13 … 185 °F). Shock and impact resistance: 30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks. Vibration resistance: 0.75 mm 10 … 57 Hz , 5 g 57 … 150 Hz, 20 cycles. Degree of protection: IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*. Connection: via Flat cable. Material: . HousingPBT PCMounting screwStainless steel 1.4305 / AISI 303: . Housing: PBT PC. Mounting screw: Stainless steel 1.4305 / AISI 303. Mass: 100 g. Tightening torque, fastening screws: 1.65 Nm
