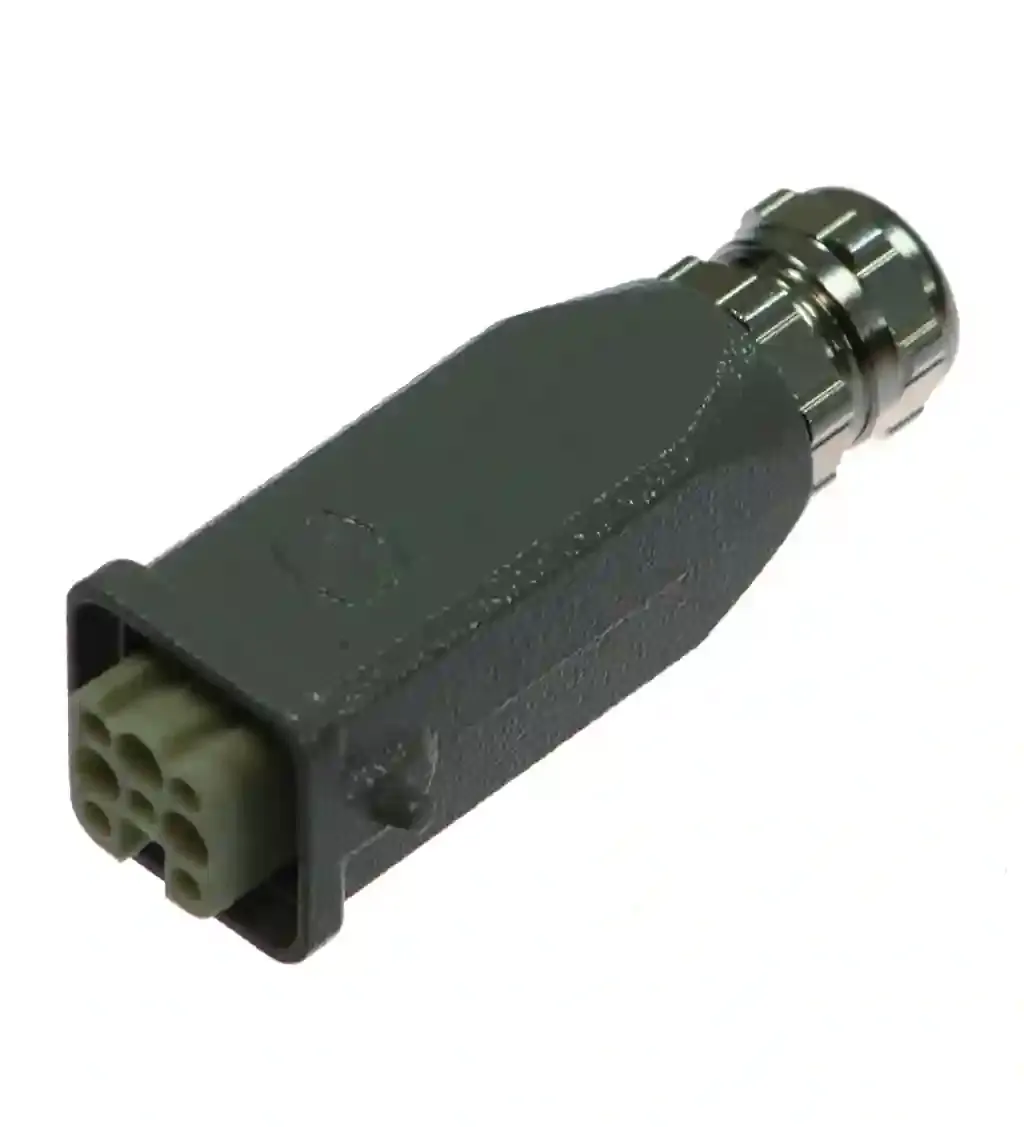

Pepperl Fuchs V8HAN-G
Female cordset, field attachable. Female connector, Harting, 8-pin, field attachable. Number of pins: 8. Construction type: Socket, straightHarting Han 8D, size 3 A. Connection 1: socket. Construction…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female cordset, field attachable. Female connector, Harting, 8-pin, field attachable. Number of pins: 8. Construction type: Socket, straightHarting Han 8D, size 3 A. Connection 1: socket. Construction type 1: straight. Rated operating voltage: 230/400 V. Operating voltage: 50 V. Operating current: 10 A. Volume resistance: < 3 mΩ. Standard conformity: . Degree of protectionEN 60529: . Degree of protection: EN 60529. Ambient temperature: -40 … 125 °C (-40 … 257 °F). Pollution degree: 3. Pin diameter: 1 mm. Degree of protection: IP65. Connection: 8 jacks, Harting 8 D Crimp connection for max. ∅1.1 mm, 8 mm stripped insulation PG11 cable gland. Material: . ContactsCu alloyContact surfaceAuBodyaluminum and polycarbonate: . Contacts: Cu alloy. Contact surface: Au. Body: aluminum and polycarbonate. Mass: 119 g. Flammability: . Housing94 V-0: . Housing: 94 V-0
Specification
General specifications

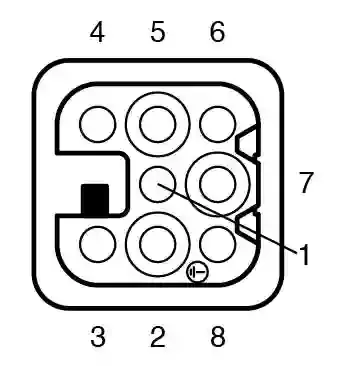

| Number of pins | 8 |
|---|---|
| Construction type | Socket, straightHarting Han 8D, size 3 A |
| Connection 1 | socket |
| Construction type 1 | straight |
Electrical specifications
| Rated operating voltage | 230/400 V |
|---|---|
| Operating voltage | 50 V |
| Operating current | 10 A |
| Volume resistance | < 3 mΩ |
Compliance with standards and directives
| Standard conformity | |
|---|---|
| Degree of protectionEN 60529 | |
| Degree of protection | EN 60529 |
Ambient conditions
| Ambient temperature | -40 ... 125 °C (-40 ... 257 °F) |
|---|---|
| Pollution degree | 3 |

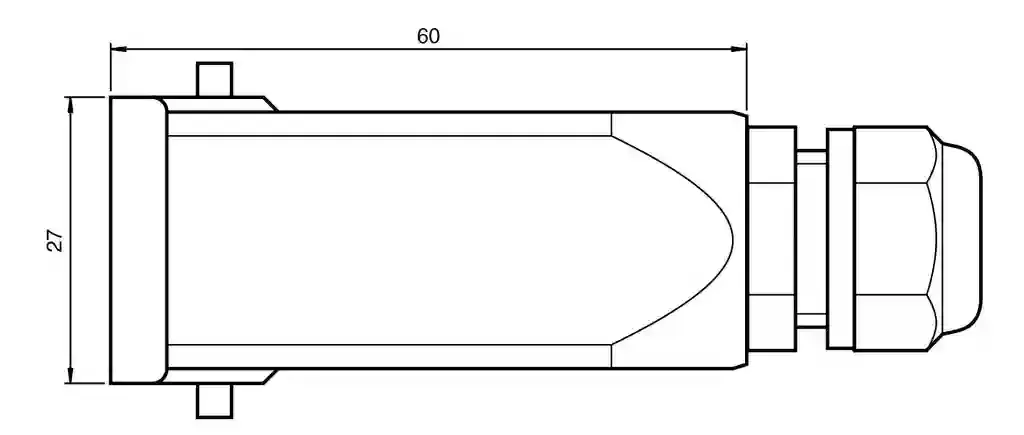

Mechanical specifications
| Pin diameter | 1 mm |
|---|---|
| Degree of protection | IP65 |
| Connection | 8 jacks, Harting 8 D Crimp connection for max. ∅1.1 mm, 8 mm stripped insulation PG11 cable gland |
| Material | |
| ContactsCu alloyContact surfaceAuBodyaluminum and polycarbonate | |
| Contacts | Cu alloy |
| Contact surface | Au |
| Body | aluminum and polycarbonate |
| Mass | 119 g |
| Flammability | |
| Housing94 V-0 | |
| Housing | 94 V-0 |
