Pepperl Fuchs V3-GM-10M-PUR-ABG

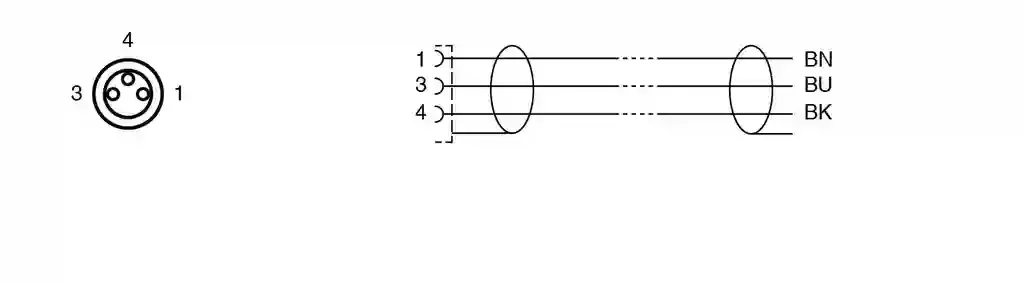

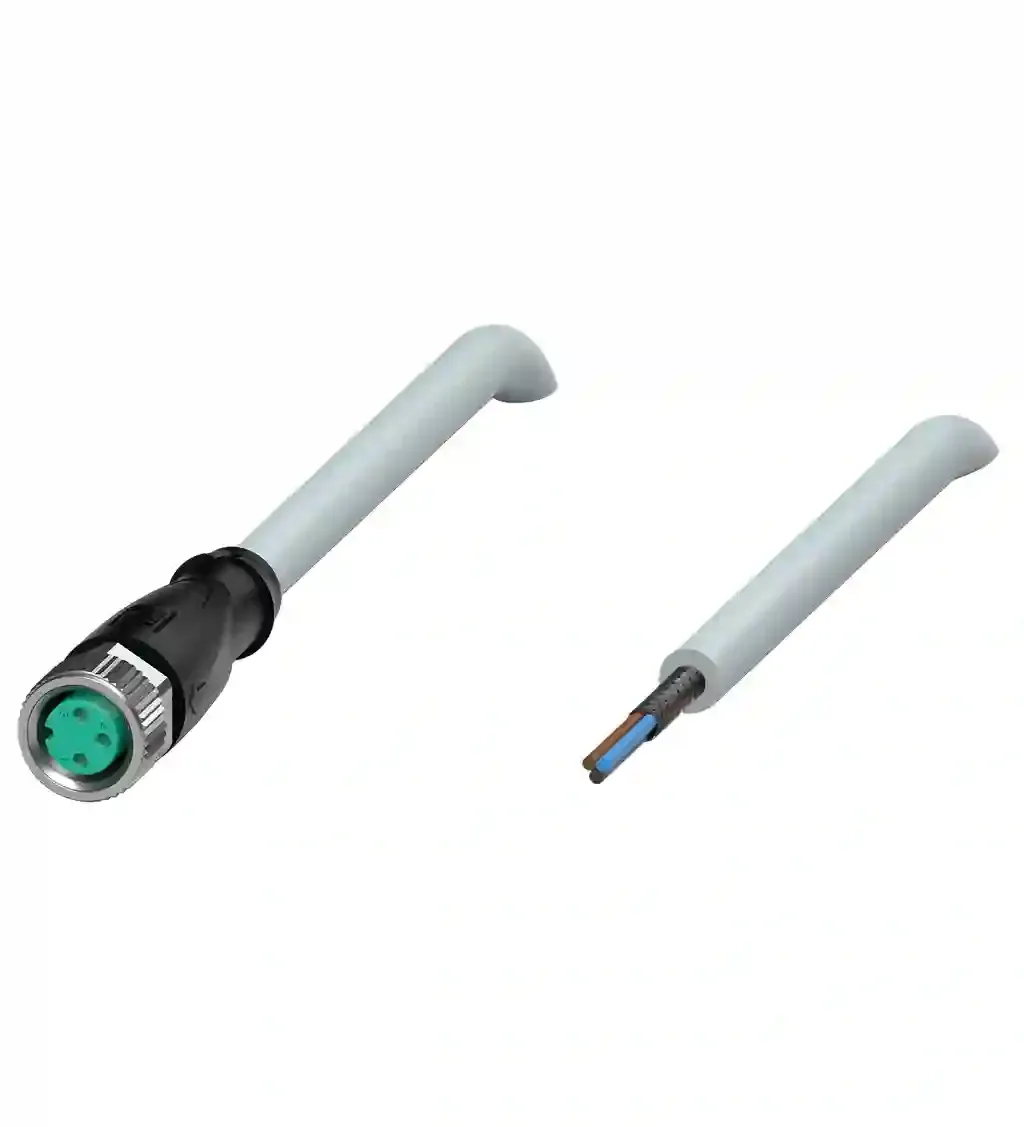

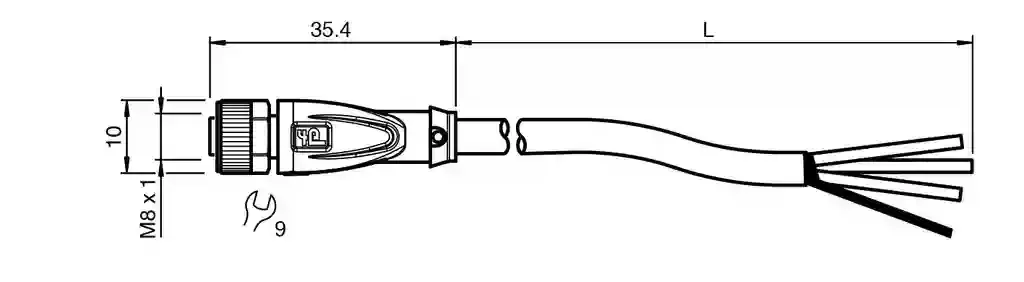

Cable socket, shielded. Female cordset single-ended M8 straight A-coded, 3-pin, PUR cable grey, shielded. Connector 1: . ConnectionsocketConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 3 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Halogen-free: DIN VDE 0472-815 DIN EN 50267-2-1. Ambient temperature: . Plug connector-40 … 90 °C (-40 … 194 °F)Cable, fixed installation-40 … 80 °C (-40 … 176 °F)Cable, flexing-25 … 80 °C (-13 … 176 °F): . Plug connector: -40 … 90 °C (-40 … 194 °F). Cable, fixed installation: -40 … 80 °C (-40 … 176 °F). Cable, flexing: -25 … 80 °C (-13 … 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 9 mmMating cyclesmin. 100Shieldingshield connected to screw connection: . Tightening torque: 0.4 Nm. Loosening protection: available. Tool installation: straight knurling and hexagon nut SW = 9 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.8 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 100 N / 300 mmSheath colorgrey (similar to RAL 7001)Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white , not used Core 3: blue Core 4: blackCore construction19 x 0.15 mm ∅Shieldtinned copper braiding, 85 % coverageLengthL10 mCable codeLi 9Y 11YM 4 x 0.34: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 100 N / 300 mm. Sheath color: grey (similar to RAL 7001). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white , not used Core 3: blue Core 4: black. Core construction: 19 x 0.15 mm ∅. Shield: tinned copper braiding, 85 % coverage. Length: 10 m. Cable code: Li 9Y 11YM 4 x 0.34. Mass: 368.02 g. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCore insulationPPChemical resistancegood: . Sheathing: PUR based on polyether. Core insulation: PP. Chemical resistance: good
