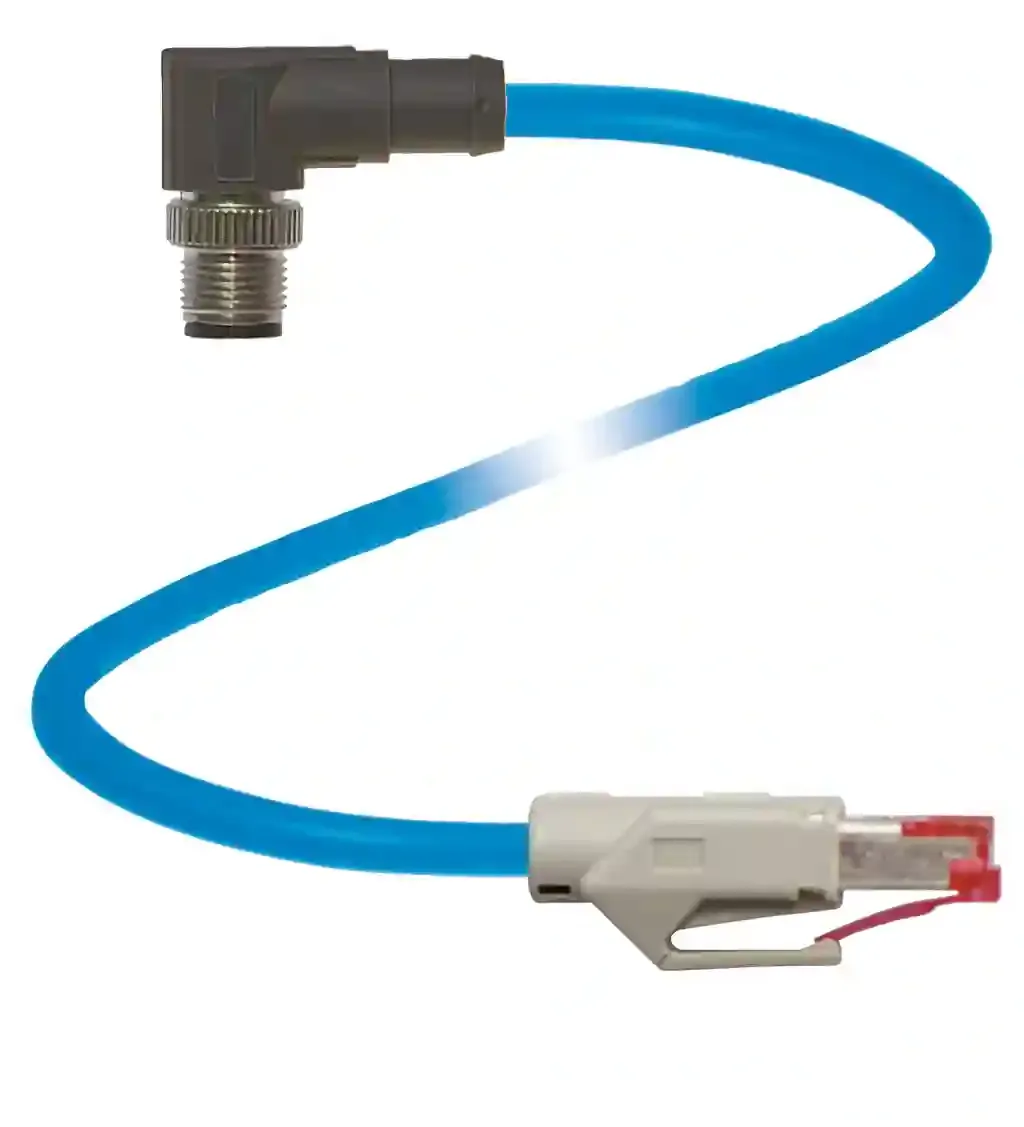

Pepperl Fuchs V1SD-W-2M-PUR-ABG-V45-G

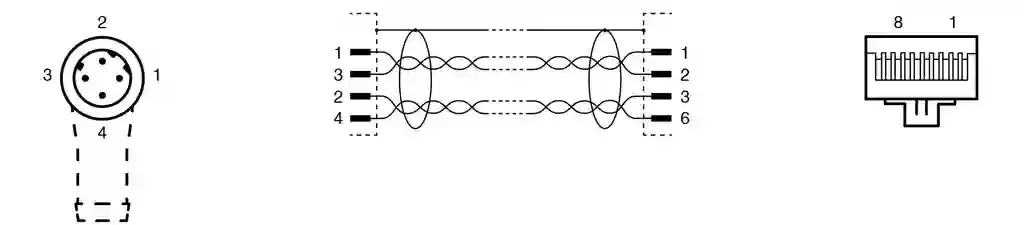

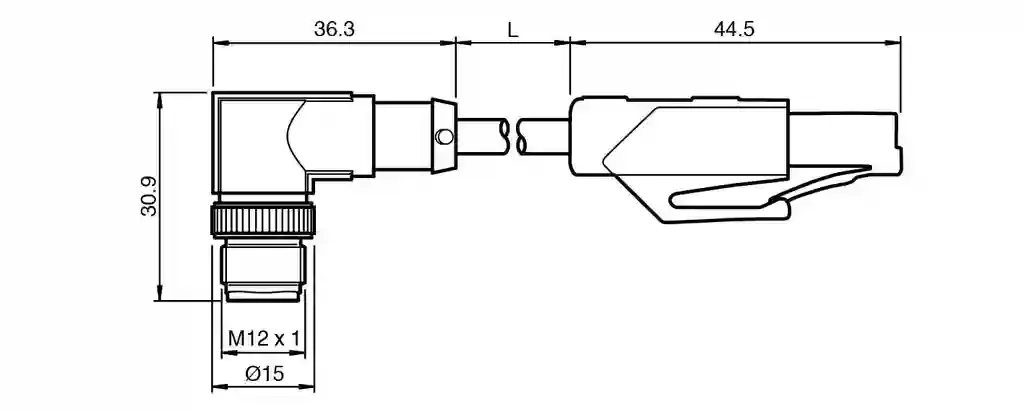

Connection cable, Ethernet. Ethernet bus cable M12 plug angled D-coded to RJ45 Ethernet-coded, 4-pin, PUR cable blue, Cat5e, shielded. Connector 1: . ConnectionplugConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingD-coded: . Connection: plug. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 4. Coding: D-coded. Connector 2: . ConnectionplugConstruction typeRJ45StylestraightLockingsnap lockingNumber of pins8: . Connection: plug. Construction type: RJ45. Style: straight. Locking: snap locking. Number of pins: 8. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 1 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101 connector RJ45 : IEC 60603-7. Component category: CAT5 (IEC 11801) , CAT5e (IEC 61156-6). Flammability: IEC 60332-1-2 / UL 2556. Halogen-free: IEC 60754-1. Ambient temperature: . Connector 1-25 … 90 °C (-13 … 194 °F)Connector 2-25 … 60 °C (-13 … 140 °F)Cable, fixed installation-40 … 80 °C (-40 … 176 °F)Cable, flexing-20 … 80 °C (-4 … 176 °F): . Connector 1: -25 … 90 °C (-13 … 194 °F). Connector 2: -25 … 60 °C (-13 … 140 °F). Cable, fixed installation: -40 … 80 °C (-40 … 176 °F). Cable, flexing: -20 … 80 °C (-4 … 176 °F). Connector 1: . Tightening torque0.4 NmLoosening protectionavailableTool installationstraight knurlingMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP65 / IP67: . Tightening torque: 0.4 Nm. Loosening protection: available. Tool installation: straight knurling. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP65 / IP67. Connector 2: . Loosening protectionavailableMating cyclesmin. 750Shieldingshield connected to connectorDegree of protectionIP20: . Loosening protection: available. Mating cycles: min. 750. Shielding: shield connected to connector. Degree of protection: IP20. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6.4 mmBending radius> 8 x cable diameter, movable installation > 4 x cable diameter, fixed installationSheath colorwater blue (RAL 5021)Number of cores4Core cross section0.14 mm2Cores colorCore 1-1: white/orange Core 2-3: white/green Core 3-2: orange Core 4-6: greenCore construction7 x 0.16 mm ∅ twisted pairsShieldaluminum-lined polyester foilTinned copper braiding, 70 % coverageLengthL2 m: . Sheath diameter: 6.4 mm. Bending radius: > 8 x cable diameter, movable installation > 4 x cable diameter, fixed installation. Sheath color: water blue (RAL 5021). Number of cores: 4. Core cross section: 0.14 mm2. Cores color: Core 1-1: white/orange Core 2-3: white/green Core 3-2: orange Core 4-6: green. Core construction: 7 x 0.16 mm ∅ twisted pairs. Shield: aluminum-lined polyester foilTinned copper braiding, 70 % coverage. Length: 2 m. Mass: 113.4 g. PWIS free: yes. Halogen-free: yes. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfaceNi/AuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: Ni/Au. Flammability: V-2. Connector 2: . BodyPA, greyContact surfaceNi/AuFlammabilityV-0: . Body: PA, grey. Contact surface: Ni/Au. Flammability: V-0. Cable: . SheathingPURCore insulationPEFlammabilityVW-1: . Sheathing: PUR. Core insulation: PE. Flammability: VW-1
