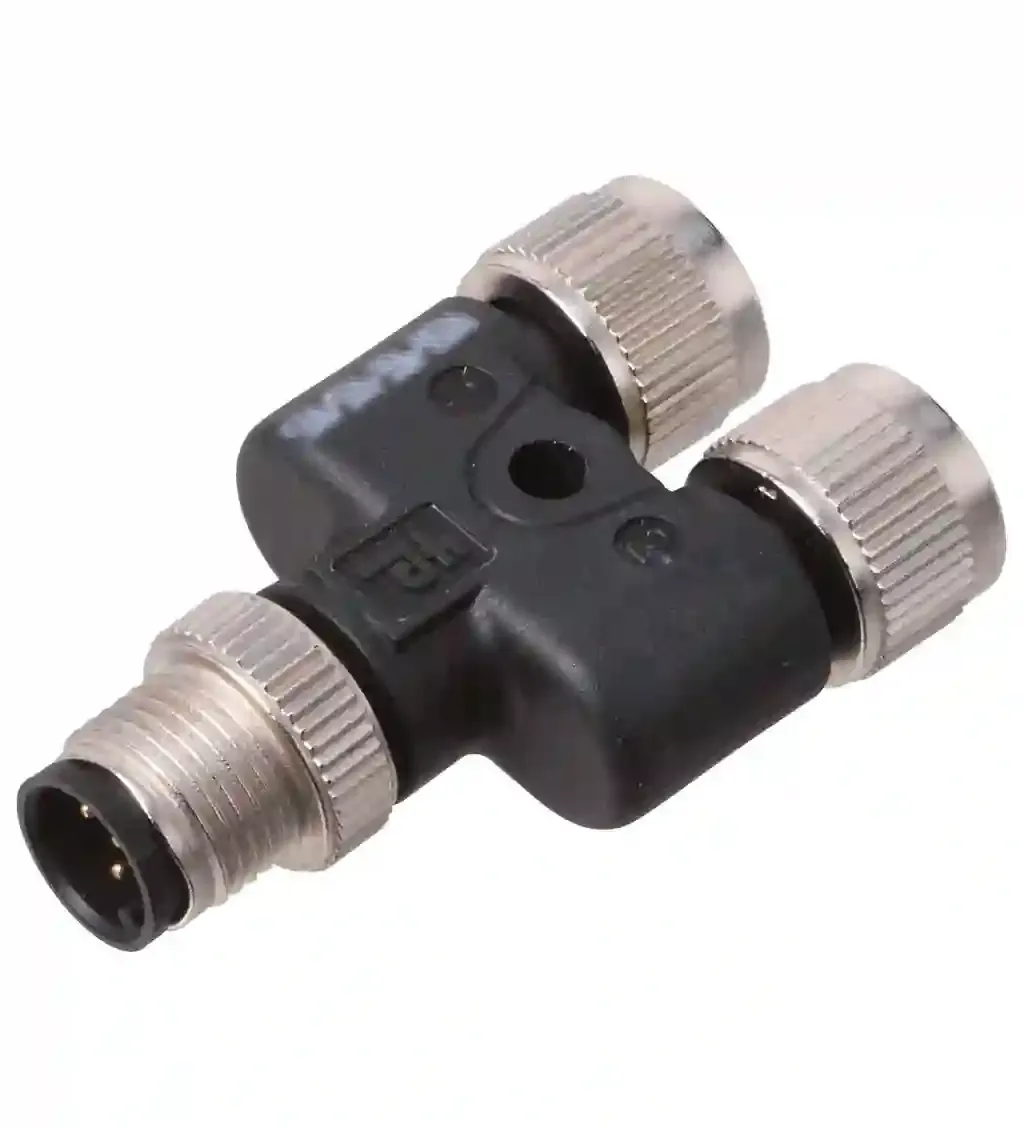

Pepperl Fuchs V1S-Y-V11/V11

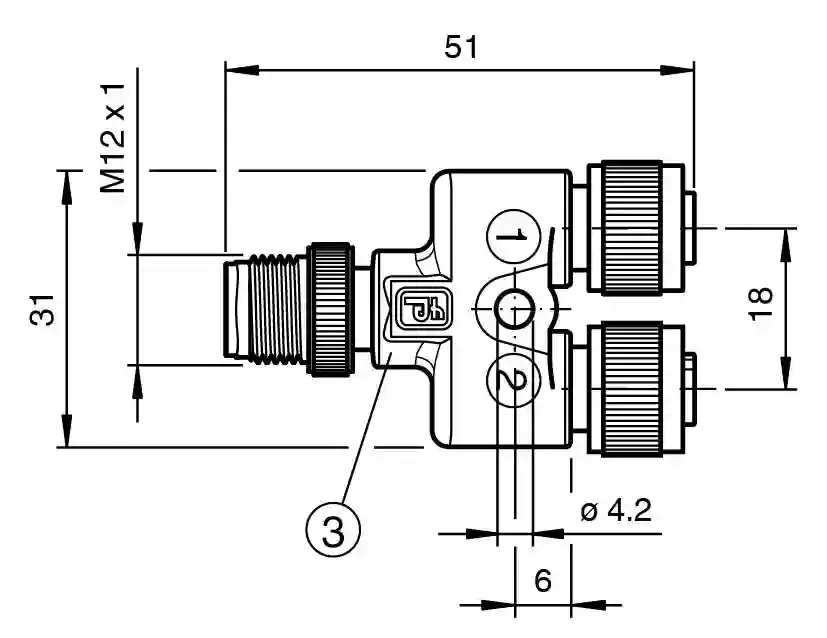

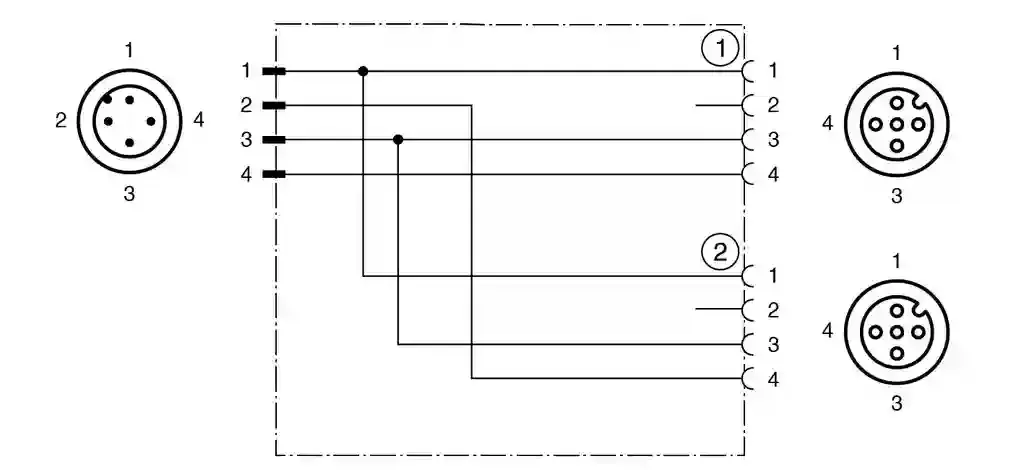

Y-Splitter. Y-Splitter M12 plug 4-pin to 2x M12 socket 3-pin A-coded. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 3: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. UL File Number: E231213. Operating voltage: max. 48 V AC / 60 V DC. Operating current: 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 94 , UL 758 / 1581. UL approval: UL Recognized General purpose. Maximum permissible operating voltagemax. 60 VMaximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible operating voltage: max. 60 V. Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Ambient temperature: -40 … 90 °C (-40 … 194 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP67. Mass: 26 g. Dimensions: . Width31 mmLength51 mm: . Width: 31 mm. Length: 51 mm. Mounting: Mounting hole for M4 screw. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPUContact surfaceAuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU. Contact surface: Au. Flammability: V-2
