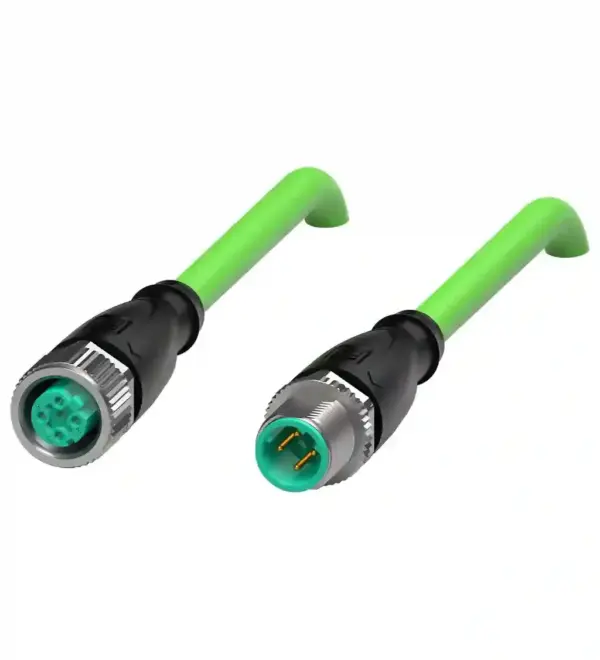

Pepperl Fuchs V1D-G-GN5M-PUR-E1S-V1D-G

Connection cable, Ethernet. Ethernet bus cable M12 socket straight to M12 plug straight D-coded, 4-pin, PUR cable green, Cat5e, shielded, drag chain suitable, UL approved. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingD-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: D-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingD-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: D-coded. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Component category: CAT5 (IEC 11801) , CAT5e (IEC 61156-6). Flammability: IEC 60332-1-2 / UL 2556 / ISO 6722-1 5.22 (UN ECE-R 118.01). UL approval: AWM STYLE 20549 80 °C 300V AWM I A/B 80 °C 300V FT2 (cable). UL File Number: E231213. Ambient temperature: . Plug connector-40 … 90 °C (-40 … 194 °F)Cable, fixed installation-30 … 70 °C (-22 … 158 °F)Cable, flexing-20 … 70 °C (-4 … 158 °F): . Plug connector: -40 … 90 °C (-40 … 194 °F). Cable, fixed installation: -30 … 70 °C (-22 … 158 °F). Cable, flexing: -20 … 70 °C (-4 … 158 °F). Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connection: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Connector 1: . Loosening protection: . Loosening protection: . Degree of protection: IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6 mmBending radius> 10 x cable diameter, movable installation > 8 x cable diameter, fixed installationSheath stripping forcemax. 60 N / 100 mmSheath colorgreen (similar to RAL 6018)Number of cores4Core cross section0.34 mm2 / 22 AWGCores colorCore 1: yellow Core 2: white Core 3: orange Core 4: blueCore construction7 x 0.254 mm ∅ twisted quadShieldaluminum-lined polyester foilTinned copper braidingLengthL5 m: . Sheath diameter: 6 mm. Bending radius: > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation. Sheath stripping force: max. 60 N / 100 mm. Sheath color: green (similar to RAL 6018). Number of cores: 4. Core cross section: 0.34 mm2 / 22 AWG. Cores color: Core 1: yellow Core 2: white Core 3: orange Core 4: blue. Core construction: 7 x 0.254 mm ∅ twisted quad. Shield: aluminum-lined polyester foilTinned copper braiding. Length: 5 m. Drag chain suitability: . Drag chain cyclesmax. 1000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 2 m/s2: . Drag chain cycles: max. 1000000. Motion velocity: max. 3 m/s. Traverse distance: max. 5 m. Acceleration: max. 2 m/s2. Mass: 289.53 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfaceAuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: Au. Flammability: V-2. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPFlammabilityFT2 complies with UN ECE-R 118.01: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Flammability: FT2 complies with UN ECE-R 118.01
