Pepperl Fuchs V19SX-G-GN50M-PUR-E2S-V45-G

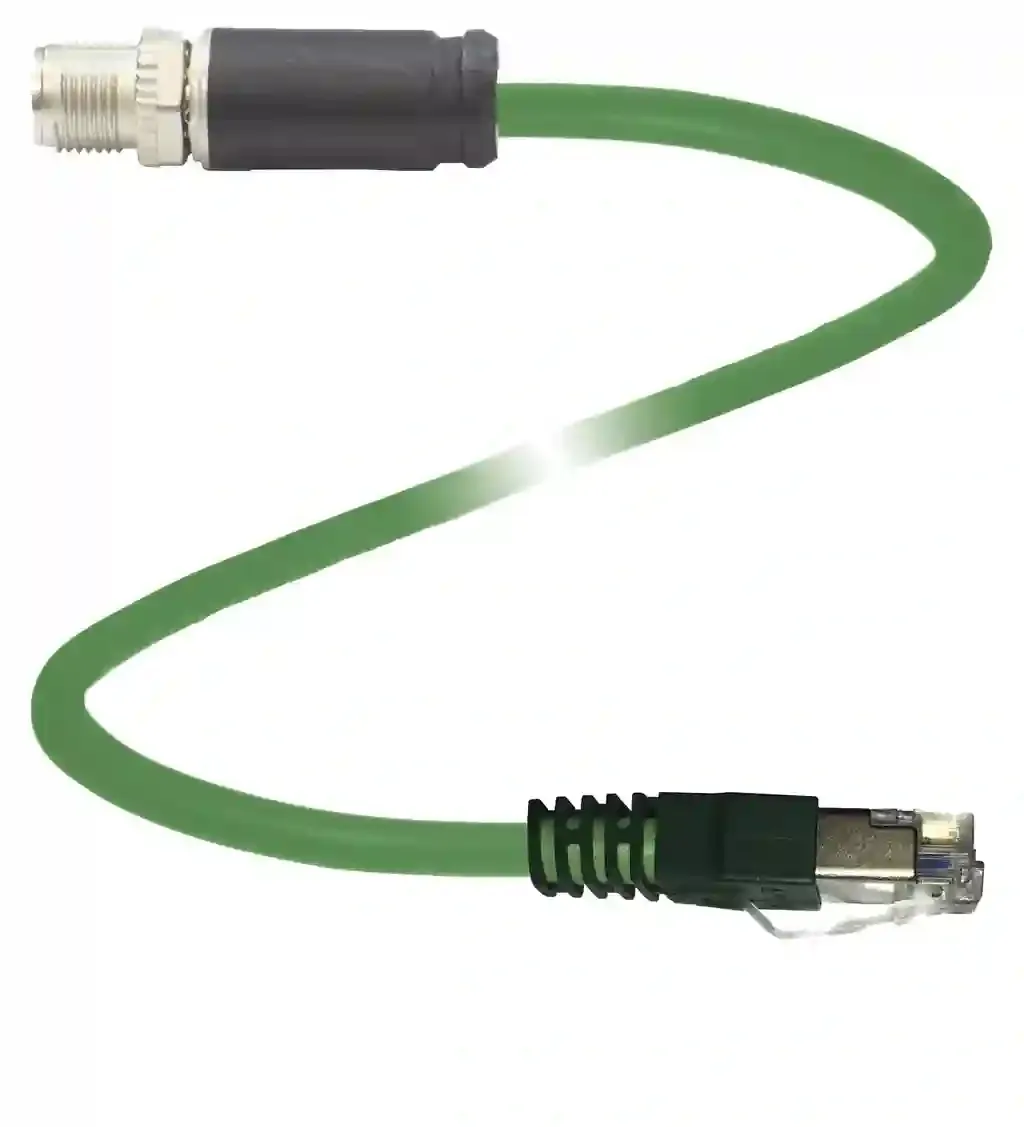

Connection cable, Ethernet. Ethernet bus cable M12 plug straight X-coded to RJ45 plug straight Ethernet-coded, 8-pin, PUR cable green, Cat6A, pairs shielded and overall shield. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingX-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: X-coded. Connector 2: . ConnectionplugConstruction typeRJ45StylestraightLockingsnap lockingNumber of pins8CodingEtherNet/IP: . Connection: plug. Construction type: RJ45. Style: straight. Locking: snap locking. Number of pins: 8. Coding: EtherNet/IP. UL File Number: E520112. Operating voltage: max. 50 V AC / 60 V DC. Operating current: max. 0.5 A. Degree of protection: EN 60529. Fieldbus standard: IEEE 802.3an 10GBASE-T. Plug connection: connector M12 x 1 : IEC 61076-2-109 connector RJ45 : IEC 60603-7. Component category: CAT6A (IEC 11801, EN 50173). Flammability: IEC 60332-1-2 , UL 1581. Ambient temperature: . Cable, fixed installation-40 … 85 °C (-40 … 185 °F)Cable, flexing-10 … 60 °C (14 … 140 °F): . Cable, fixed installation: -40 … 85 °C (-40 … 185 °F). Cable, flexing: -10 … 60 °C (14 … 140 °F). Pollution degree: 3. Connector 1: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling , hexagon nut SW = 13 mmMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP67: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling , hexagon nut SW = 13 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP67. Connector 2: . Loosening protectionintegratedMating cyclesmin. 750Shieldingshield connected to connectorDegree of protectionIP20: . Loosening protection: integrated. Mating cycles: min. 750. Shielding: shield connected to connector. Degree of protection: IP20. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6.2 mmBending radiusmax. 50 mm movable installationmax. 25 mm fixed installationSheath colorgreen (similar to RAL 6018)Number of cores8Core cross section0.14 mm2Cores colorCore 1: white/orange Core 2: orange Core 3: white/green Core 4: green Core 5: white/brown Core 6: brown Core 7: white/blue Core 8: blueCore construction7 x 0.404 mm ∅ twisted pairs , twisted pair shieldShieldtinned copper braiding twisted pair shield : aluminum-lined polyester foilLengthL50 mCable codeLi 02YSC 11Y 4 x 2 x 0,14 (AWG26/7): . Sheath diameter: 6.2 mm. Bending radius: max. 50 mm movable installationmax. 25 mm fixed installation. Sheath color: green (similar to RAL 6018). Number of cores: 8. Core cross section: 0.14 mm2. Cores color: Core 1: white/orange Core 2: orange Core 3: white/green Core 4: green Core 5: white/brown Core 6: brown Core 7: white/blue Core 8: blue. Core construction: 7 x 0.404 mm ∅ twisted pairs , twisted pair shield. Shield: tinned copper braiding twisted pair shield : aluminum-lined polyester foil. Length: 50 m. Cable code: Li 02YSC 11Y 4 x 2 x 0,14 (AWG26/7). Mass: 2030 g. Halogen-free: yes. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfaceNi/AuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: Ni/Au. Flammability: V-2. Connector 2: . BodyPCContact surfaceNi/AuFlammabilityV-0: . Body: PC. Contact surface: Ni/Au. Flammability: V-0. Cable: . SheathingPURCoresbare copper (Cu)Core insulationPEUV resistanceyesOil resistanceyesFlammabilityFT1: . Sheathing: PUR. Cores: bare copper (Cu). Core insulation: PE. UV resistance: yes. Oil resistance: yes. Flammability: FT1
