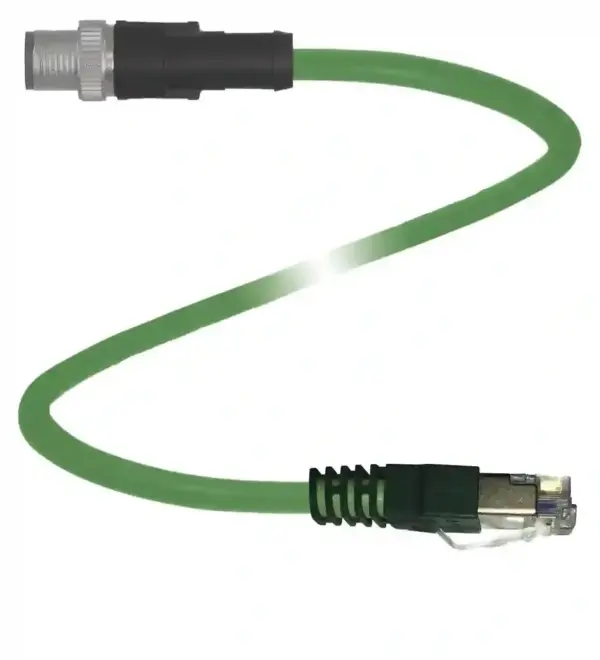

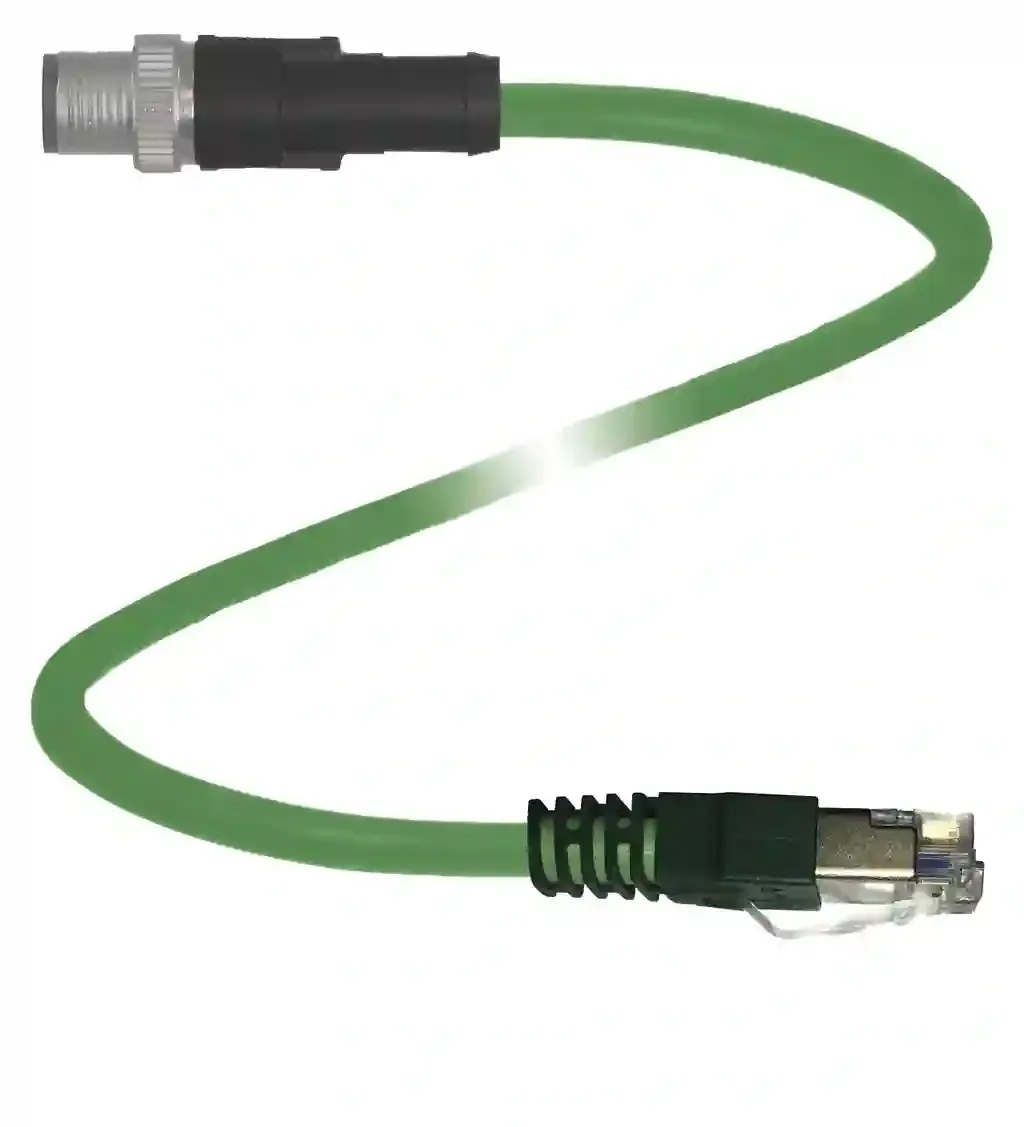

Pepperl Fuchs V19S-G-GN5M-PUR-ABG-V45-G

Connection cable, Ethernet. Ethernet bus cable M12 plug straight A-coded 8-pin to RJ45 plug straight 8-pin, PUR cable green, Cat6A, pairs shielded and overall shield, for connection of VOS cameras. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeRJ45StylestraightLockingsnap lockingNumber of pins8: . Connection: plug. Construction type: RJ45. Style: straight. Locking: snap locking. Number of pins: 8. UL File Number: E520112. Operating voltage: max. 50 V AC / 60 V DC. Operating current: max. 0.5 A. Degree of protection: EN 60529. Transmission technology: IEC 61156-6 / DIN EN 50288-4-2 , UL 1863. Plug connection: connector M12 x 1 : IEC 61076-2-109 connector RJ45 : IEC 60603-7. Component category: CAT6A (IEC 11801, EN 50173). Flammability: IEC 60332-1-2 , UL 1581. Ambient temperature: . Cable, fixed installation-40 … 85 °C (-40 … 185 °F)Cable, flexing-10 … 60 °C (14 … 140 °F): . Cable, fixed installation: -40 … 85 °C (-40 … 185 °F). Cable, flexing: -10 … 60 °C (14 … 140 °F). Pollution degree: 3. Connector 1: . Tightening torque0.6 NmTool installationstraight knurling , hexagon nut SW = 13 mmMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP67: . Tightening torque: 0.6 Nm. Tool installation: straight knurling , hexagon nut SW = 13 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP67. Connector 2: . Loosening protectionavailableMating cyclesmin. 750Shieldingshield connected to connectorDegree of protectionIP20: . Loosening protection: available. Mating cycles: min. 750. Shielding: shield connected to connector. Degree of protection: IP20. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6.2 mmBending radiusmax. 50 mm movable installationmax. 25 mm fixed installationSheath colorgreen (similar to RAL 6018)Number of cores8Core cross section0.14 mm2Cores colorCore 1: white/blue Core 2: white/brown Core 3: brown Core 4: orange Core 5: white/green Core 6: white/orange Core 7: blue Core 8: greenCore construction7 x 0.404 mm ∅ twisted pairs , twisted pair shieldShieldtinned copper braiding twisted pair shield : aluminum-lined polyester foilLengthL5 mCable codeLi 02YSC 11Y 4 x 2 x 0,14 (AWG26/7): . Sheath diameter: 6.2 mm. Bending radius: max. 50 mm movable installationmax. 25 mm fixed installation. Sheath color: green (similar to RAL 6018). Number of cores: 8. Core cross section: 0.14 mm2. Cores color: Core 1: white/blue Core 2: white/brown Core 3: brown Core 4: orange Core 5: white/green Core 6: white/orange Core 7: blue Core 8: green. Core construction: 7 x 0.404 mm ∅ twisted pairs , twisted pair shield. Shield: tinned copper braiding twisted pair shield : aluminum-lined polyester foil. Length: 5 m. Cable code: Li 02YSC 11Y 4 x 2 x 0,14 (AWG26/7). Mass: 235.8 g. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfaceNi/AuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: Ni/Au. Flammability: V-2. Connector 2: . BodyPCContact surfaceNi/AuFlammabilityV-0: . Body: PC. Contact surface: Ni/Au. Flammability: V-0. Cable: . SheathingPURCore insulationPEFlammabilityFT2: . Sheathing: PUR. Core insulation: PE. Flammability: FT2
