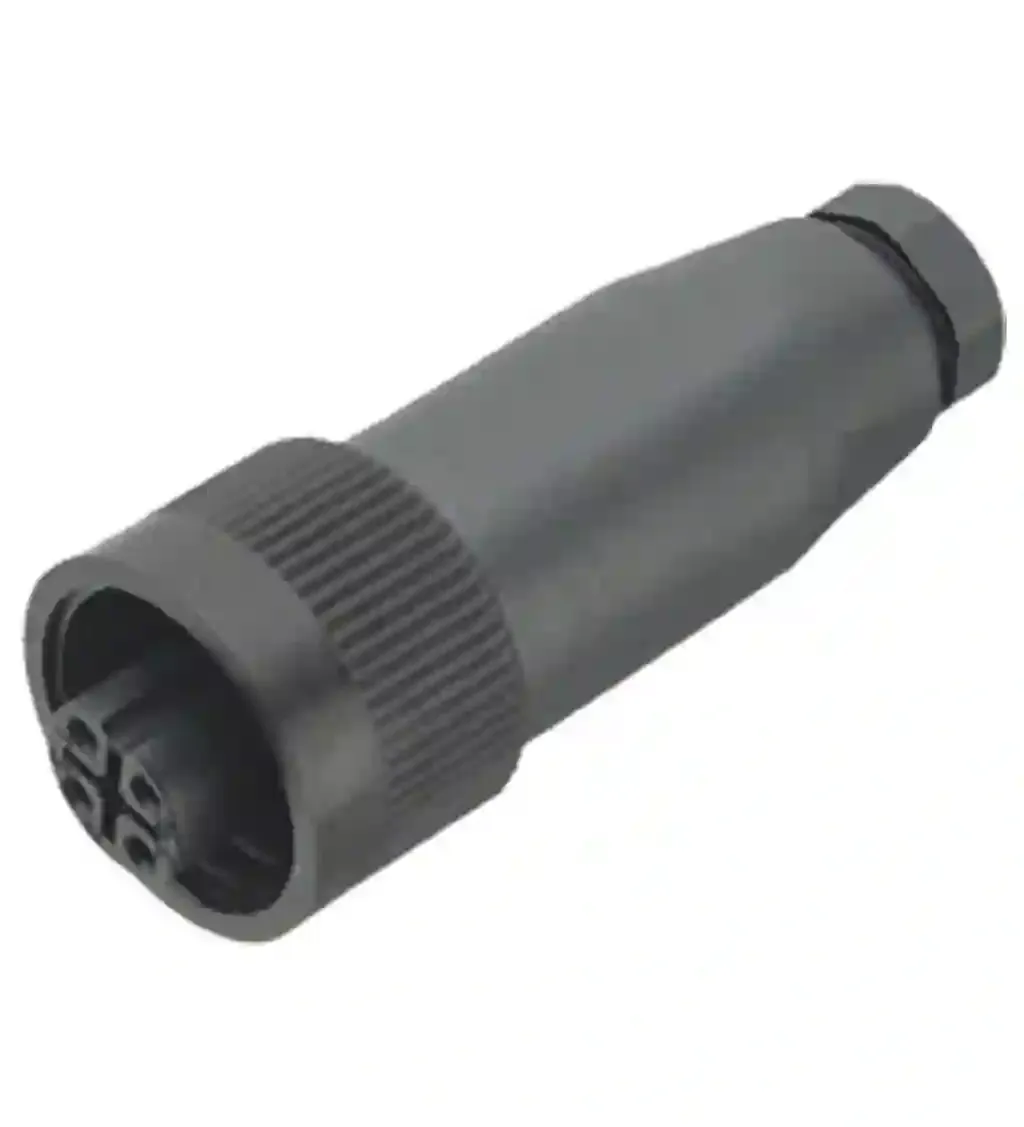

Pepperl Fuchs V16-G
Female cordset, field attachable. Female connector, dia. 24, 6-pin+PE, field attachable. Number of pins: 6 + PE. Connection 1: socket. Construction type 1: straight. Threading 1: Rd 24. Operating volt…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female cordset, field attachable. Female connector, dia. 24, 6-pin+PE, field attachable. Number of pins: 6 + PE. Connection 1: socket. Construction type 1: straight. Threading 1: Rd 24. Operating voltage: max. 250 V. Operating current: max. 10 A. Ambient temperature: -40 … 100 °C (-40 … 212 °F). Pollution degree: 3. Degree of protection: IP67. Connection: 1 x socket, Rd 24 x 1/8″ screw terminals for max. 1.5 mm2 PG9 cable gland. Material: . ContactsCuSn / AuBodyPBT: . Contacts: CuSn / Au. Body: PBT. Cable: . Sheath diameter6 … 8 mm: . Sheath diameter: 6 … 8 mm. Mass: 43.7 g. Life span: > 500 connections
Specification
General specifications
| Number of pins | 6 + PE |
|---|---|
| Connection 1 | socket |
| Construction type 1 | straight |
| Threading 1 | Rd 24 |
Electrical specifications
| Operating voltage | max. 250 V |
|---|---|
| Operating current | max. 10 A |
Ambient conditions
| Ambient temperature | -40 ... 100 °C (-40 ... 212 °F) |
|---|---|
| Pollution degree | 3 |
Mechanical specifications
| Degree of protection | IP67 |
|---|---|
| Connection | 1 x socket, Rd 24 x 1/8" screw terminals for max. 1.5 mm2 PG9 cable gland |
| Material | |
| ContactsCuSn / AuBodyPBT | |
| Contacts | CuSn / Au |
| Body | PBT |
| Cable | |
| Sheath diameter6 ... 8 mm | |
| Sheath diameter | 6 ... 8 mm |
| Mass | 43.7 g |
| Life span | > 500 connections |
