Pepperl Fuchs V1-W-BK10M-PUR-U-V1-G

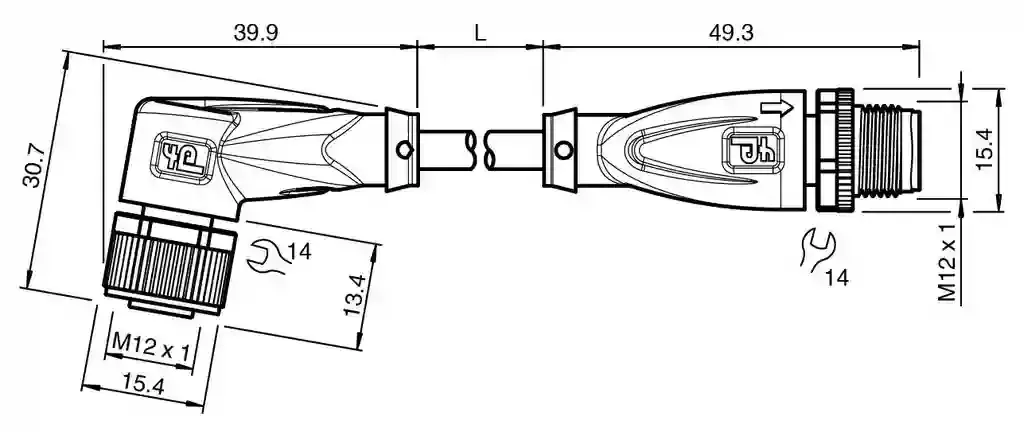

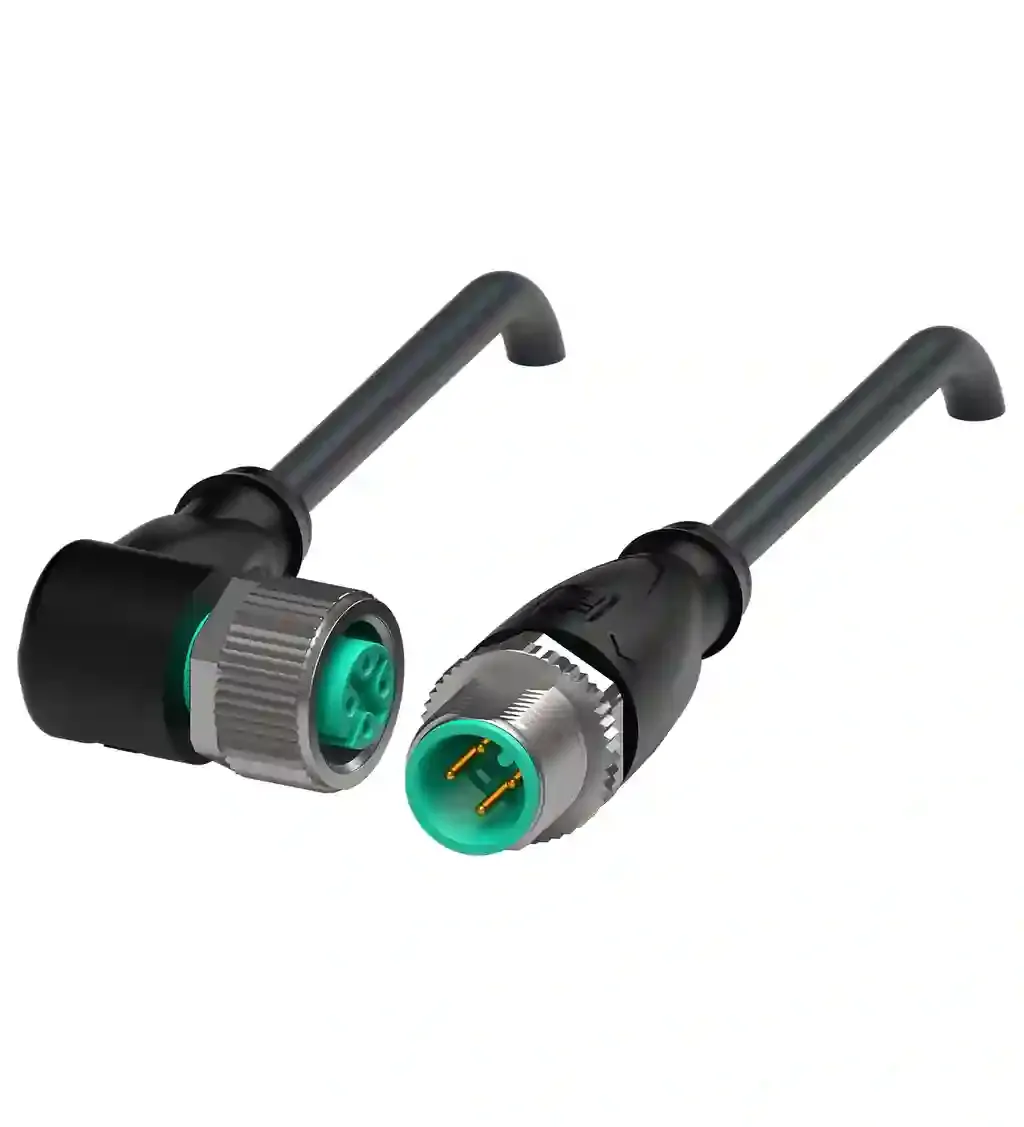

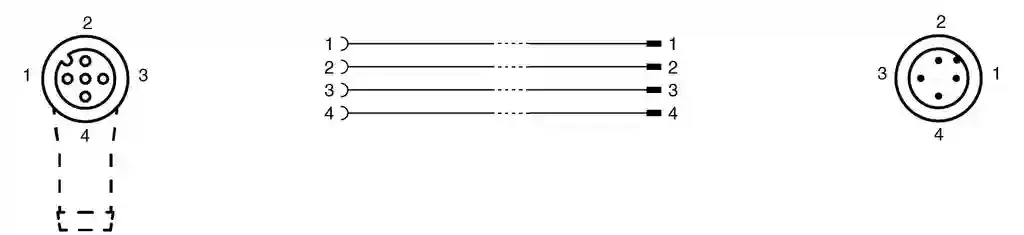

Connection cable. Cordset M12 socket angled to M12 plug straight A-coded, 4-pin, PUR cable black, UL-approved, drag chain suitable, torsion resistant. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: IEC 60754-1. UL approval: AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable). UL File Number: E231213. Ambient temperature: . Plug connector-40 … 90 °C (-40 … 194 °F)Cable, fixed installation-40 … 80 °C (-40 … 176 °F)Cable, flexing-20 … 80 °C (-4 … 176 °F): . Plug connector: -40 … 90 °C (-40 … 194 °F). Cable, fixed installation: -40 … 80 °C (-40 … 176 °F). Cable, flexing: -20 … 80 °C (-4 … 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP66 / IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.3 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 80 N / 300 mmSheath colorblack (similar to RAL 9005)Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackCore construction42 x 0.1 mm ∅LengthL10 mCable codeLi 9Y 11Y 4 x 0.34: . Sheath diameter: 4.3 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 80 N / 300 mm. Sheath color: black (similar to RAL 9005). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Core construction: 42 x 0.1 mm ∅. Length: 10 m. Cable code: Li 9Y 11Y 4 x 0.34. Drag chain suitability: . Test temperature25 °C (77 °F)Drag chain cyclesmin. 10000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 5 m/s2Torsion cyclesmin. 1000000Torsional stress± 180 °/m: . Test temperature: 25 °C (77 °F). Drag chain cycles: min. 10000000. Motion velocity: max. 3 m/s. Traverse distance: max. 5 m. Acceleration: max. 5 m/s2. Torsion cycles: min. 1000000. Torsional stress: ± 180 °/m. Mass: 279.88 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPUV resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. UV resistance: yes. Chemical resistance: good. Oil resistance: yes. Cooling lubricant resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2. Cable marking sleeve: 2x PUR transparent , fixed to cable
