Pepperl Fuchs V1-PG9-500

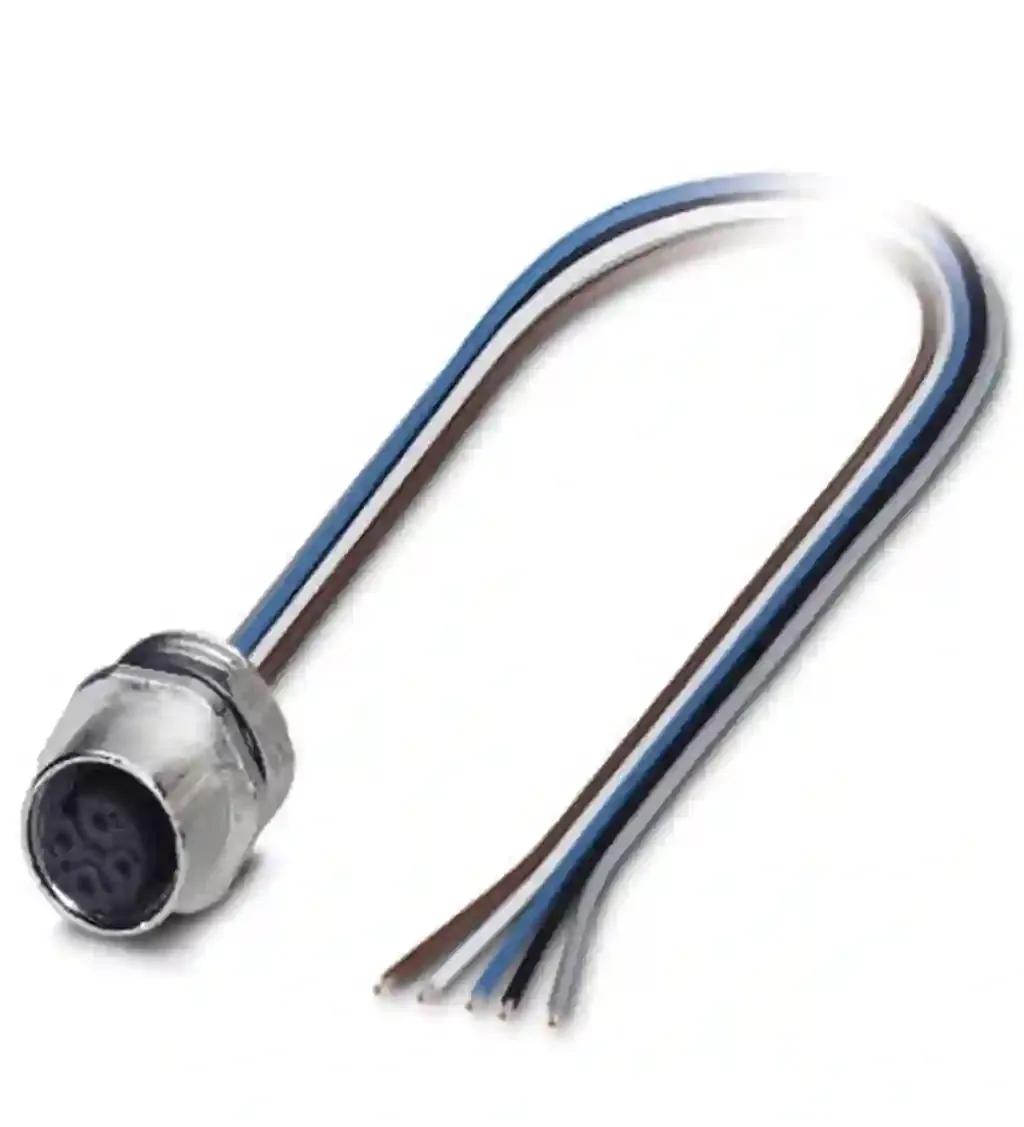

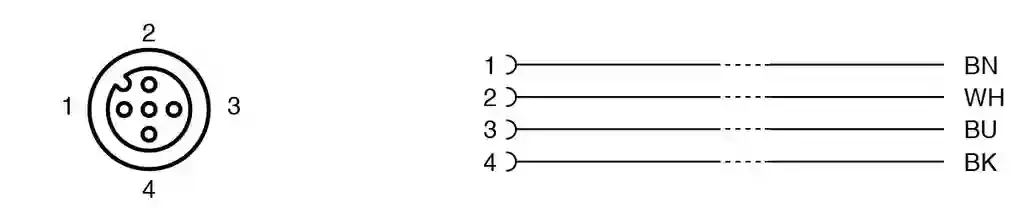

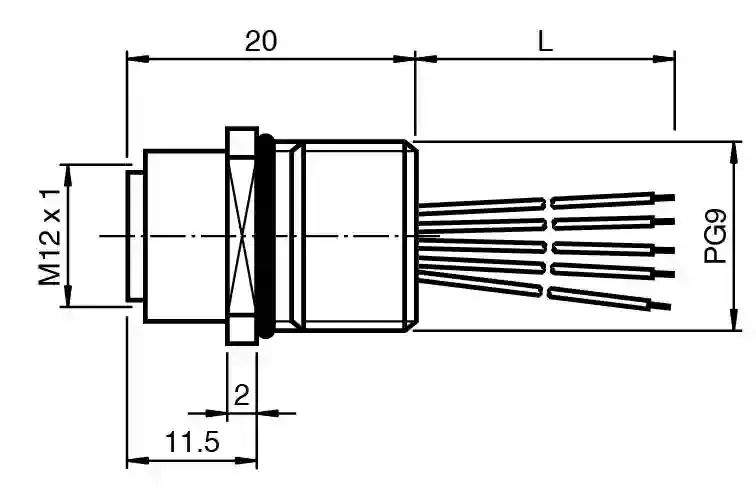

Female receptacle. Receptacle – female, M12/PG9, 4-pin. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 250 V AC/DC. Test voltage: > 2000 V eff AC. Operating current: max. 4 A. Volume resistance: < 3 mΩ. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 94. UL File Number: E191152. Ambient temperature: . Cable, fixed installation-40 … 85 °C (-40 … 185 °F)Cable, flexing-25 … 85 °C (-13 … 185 °F): . Cable, fixed installation: -40 … 85 °C (-40 … 185 °F). Cable, flexing: -25 … 85 °C (-13 … 185 °F). Pollution degree: 3. Plug connector: . Mating cyclesmin. 100: . Mating cycles: min. 100. Degree of protection: IP67. Connection: tinned copper single leads, ∅1.2 ±0.07 mm. Cable: . Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackLengthL500 mm: . Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Length: 500 mm. Installation: Front mounting PG9 , tightening torque: 3 … 4 Nm. Mass: 19.3 g. Plug connector: . Screw connectionZinc diecast, nickel-platedSealFKMContact surfacegold plated (Au)FlammabilityV-0: . Screw connection: Zinc diecast, nickel-plated. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-0. Cable: . Core insulationTPE: . Core insulation: TPE. Scope of delivery: locknut not included
