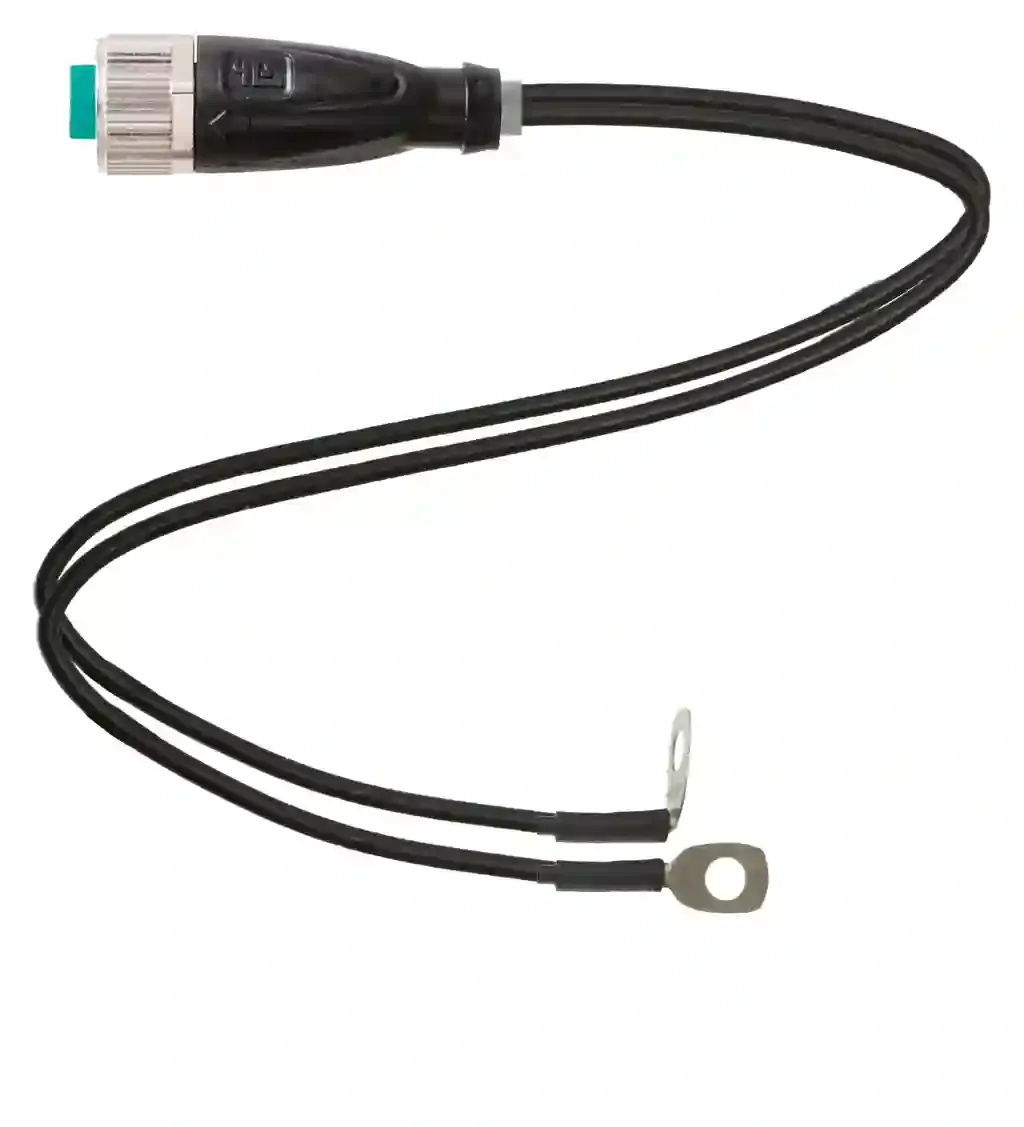

Pepperl Fuchs V1-GY-1M/3M-PUR-TAP

Y connection cable. Y connection cable M12 socket straight A-coded 4-pin, PUR 2x single cores. Customization: core ends with terminal lug , 1x 90° angle. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 300 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: . Plug connector-40 … 90 °C (-40 … 194 °F)Cable, fixed installation-40 … 80 °C (-40 … 176 °F)Cable, flexing-25 … 80 °C (-13 … 176 °F): . Plug connector: -40 … 90 °C (-40 … 194 °F). Cable, fixed installation: -40 … 80 °C (-40 … 176 °F). Cable, flexing: -25 … 80 °C (-13 … 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP54. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter2 x 2.7 mmBending radius> 5 x cable diameter, movable installation > 2 x cable diameter, fixed installationSheath colorblack and redNumber of cores1Core cross section0.75 mm2Core construction96 x 0.1 mm ∅LengthLRD: L1 = 1 m; BK: L2 = 3 m: . Sheath diameter: 2 x 2.7 mm. Bending radius: > 5 x cable diameter, movable installation > 2 x cable diameter, fixed installation. Sheath color: black and red. Number of cores: 1. Core cross section: 0.75 mm2. Core construction: 96 x 0.1 mm ∅. Length: RD: L1 = 1 m; BK: L2 = 3 m. Mass: 63 g. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCore insulationTPE: . Sheathing: PUR based on polyether. Core insulation: TPE
