Pepperl Fuchs V1-G-YE0,6M-PUR-A1-T-V1-G

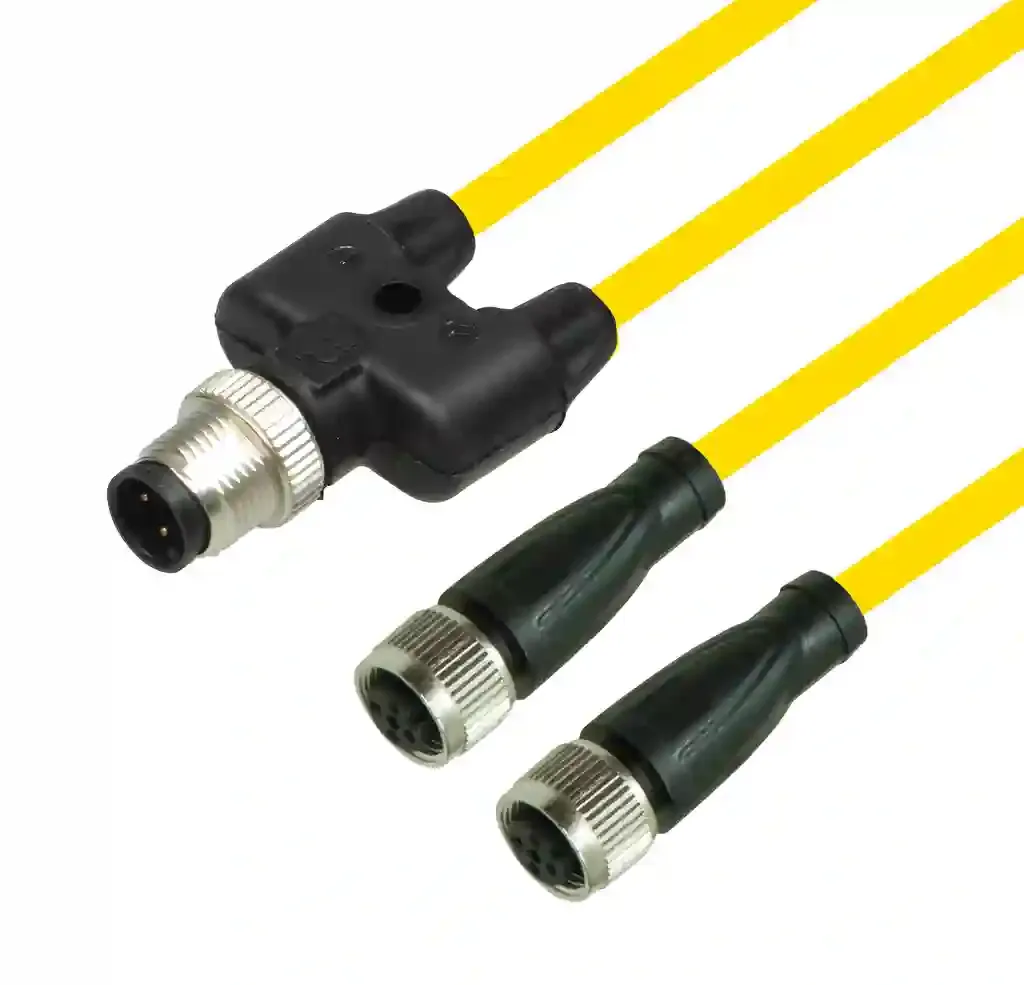

Y connection cable. Y connection cable M12 plug straight A-coded 4-pin to 2x M12 socket straight A-coded 4-pin, 2x PUR cable welding-bead resistant yellow, UL approved, drag chain suitable, torsion resistant. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 3: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Operating voltage: max. 30 V AC/DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815. Microbial resistance: DIN EN 50525-2-21 / DIN VDE 0282-10. Hydrolysis resistance: DIN EN 50525-2-21. UL approval: AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable). UL File Number: E231213. Ambient temperature: . Plug connector-40 … 90 °C (-40 … 194 °F)Cable, fixed installation-40 … 80 °C (-40 … 176 °F)Cable, flexing-25 … 80 °C (-13 … 176 °F): . Plug connector: -40 … 90 °C (-40 … 194 °F). Cable, fixed installation: -40 … 80 °C (-40 … 176 °F). Cable, flexing: -25 … 80 °C (-13 … 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter5.3 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 80 N / 300 mmSheath coloryellow (similar to RAL 1021)Number of cores5Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core 5: not usedCore construction42 x 0.1 mm ∅LengthLL1 = 0.6 m L2 = 0.6 mCable codeLi F 9Y 11Y 5 x 0,34: . Sheath diameter: 5.3 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 80 N / 300 mm. Sheath color: yellow (similar to RAL 1021). Number of cores: 5. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: not used. Core construction: 42 x 0.1 mm ∅. Length: L1 = 0.6 m L2 = 0.6 m. Cable code: Li F 9Y 11Y 5 x 0,34. Drag chain suitability: . Drag chain cyclesmin. 5000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 5 m/s2Torsion cyclesmin. 1000000Torsional stress± 180 °/m: . Drag chain cycles: min. 5000000. Motion velocity: max. 3 m/s. Traverse distance: max. 5 m. Acceleration: max. 5 m/s2. Torsion cycles: min. 1000000. Torsional stress: ± 180 °/m. Mass: 71.45 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCore insulationPPWelding-bead resistanceyesWeld spatter resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Core insulation: PP. Welding-bead resistance: yes. Weld spatter resistance: yes. Chemical resistance: good. Oil resistance: yes. Cooling lubricant resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2
