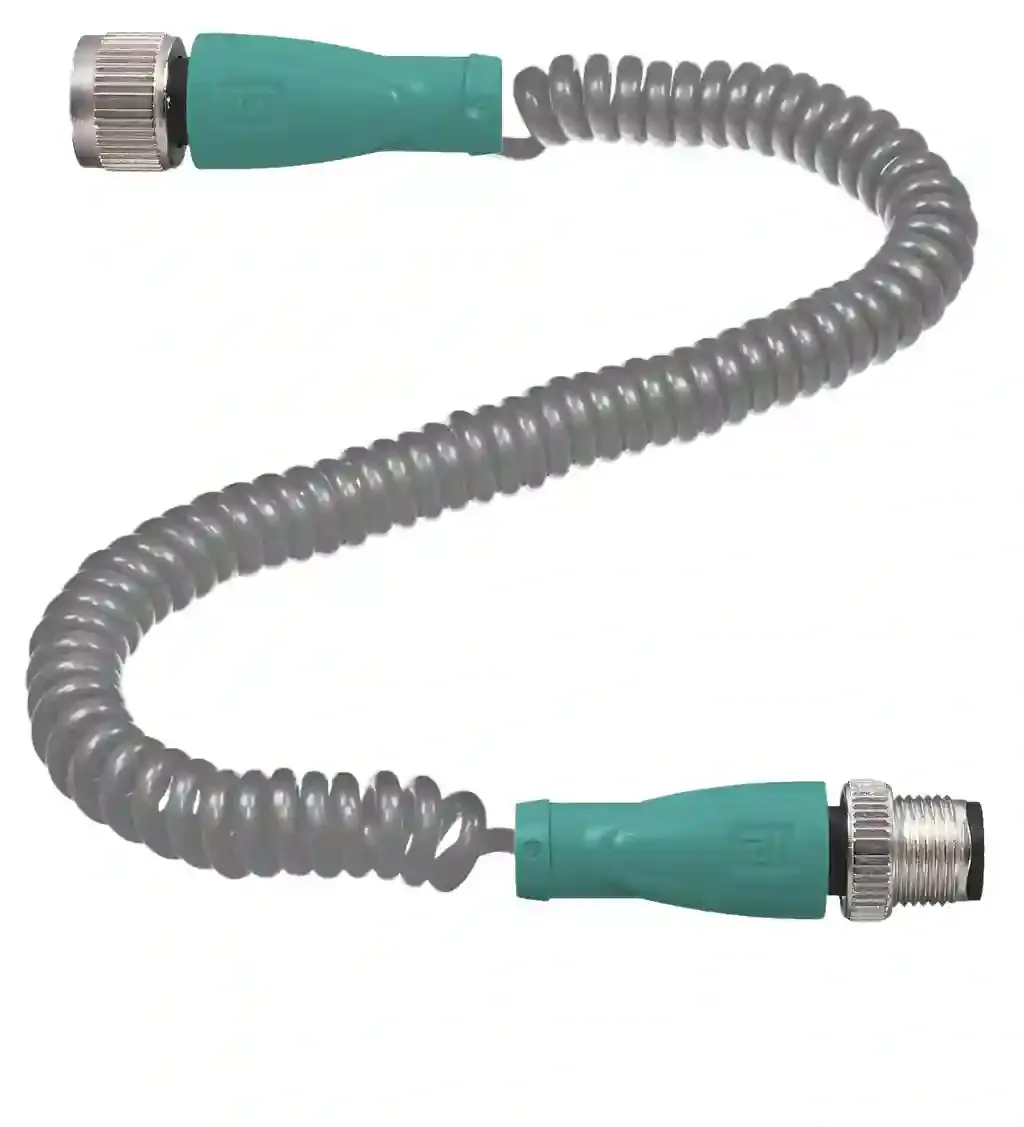

Pepperl Fuchs V1-G-0,5/2,5M-PUR-V1-G

Connection cable. Connecting cable, spiral cable. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: plug. Construction type 2: straight. Threading 2: M12. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Ambient temperature: -40 … 90 °C (-40 … 194 °F) Cable: -40 … 80 °C (-40 … 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67 / IP68 / IP69k. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, greenCablePURSlotted nutDiecast zincSleeve connectorDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, green. Cable: PUR. Slotted nut: Diecast zinc. Sleeve connector: Diecast zinc. Core insulation: PP. Cable: . Sheath diameter∅ 4.8 mmColorgreyCores4 x 0.34 mm2Conductor construction19 x 0.15 mm ∅LengthL0.5 … 2.5 m: . Sheath diameter: ∅ 4.8 mm. Color: grey. Cores: 4 x 0.34 mm2. Conductor construction: 19 x 0.15 mm ∅. Length: 0.5 … 2.5 m. Mass: 180.6 g. Flammability: . Contact carrier94 HBHousing94 V-2: . Contact carrier: 94 HB. Housing: 94 V-2
