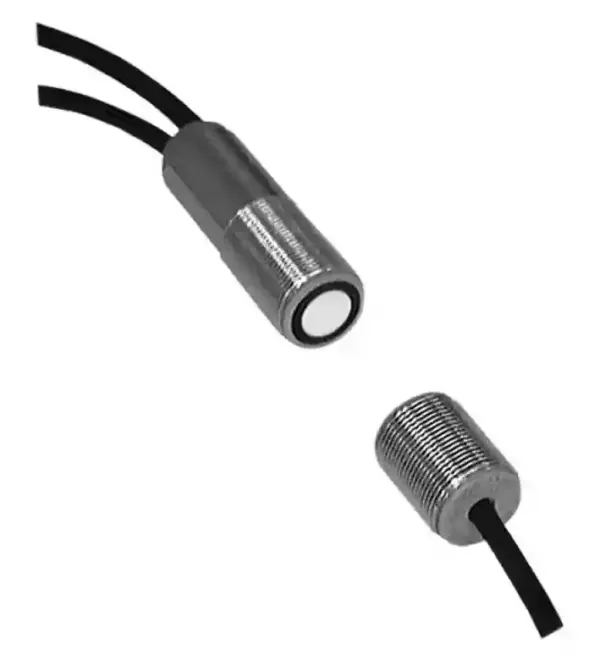

Pepperl Fuchs ULB-18GM50-255-2E3

Label sensor. Ultrasonic system for detection of labels and carrier materials., Short version, Insensitive to printing, colors, and shining surfaces, Sensing range: 20 … 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: ULB-18GM, Operating voltage: 18 … 30 V DC , ripple 10 %SS, Output type: 2 switch outputs PNP, NC, UL approval: C-UL listed: 57M3, IND CONT. EQ., “Powered by Class 2 Power Source”. Sensing range: 20 … 60 mm , optimal distance: 45 mm. Transducer frequency: 255 kHz. LED green: Display: readiness. LED yellow: indication: label detected. LED red: Display: error. Operating voltage: 18 … 30 V DC , ripple 10 %SS. No-load supply current: < 60 mA. Time delay before availability: < 500 ms. Input type: Teach-In input 0-level: -UB … -UB + 1V1-level: +UB – 1 V … +UB. Pulse length: ≥ 500 ms. Impedance: ≥ 10 kΩ. Output type: 2 switch outputs PNP, NC. Rated operating current: 2 x 100 mA , short-circuit/overload protected. Voltage drop: ≤ 3 V. Switch-on delay: ≤ 600 µs. Switch-off delay: ≤ 600 µs. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: C-UL listed: 57M3, IND CONT. EQ., "Powered by Class 2 Power Source". CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 … 60 °C (32 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Connection type: cable PVC , 2 m. Core cross section: 0.14 mm2. Degree of protection: IP67. Material: . Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: nickel plated brass; plastic components: PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 150 g. Dimensions: . Length53 mmDiameter18 mm: . Length: 53 mm. Diameter: 18 mm
