Pepperl Fuchs UGB-18GM50-255-2E1

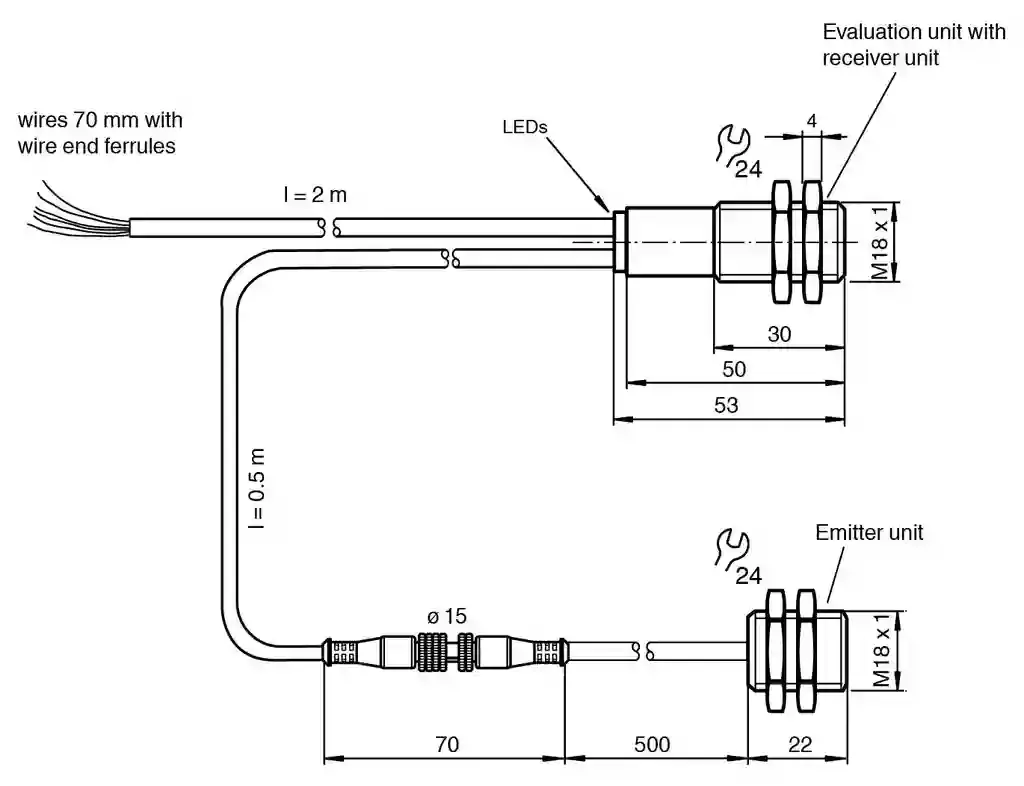

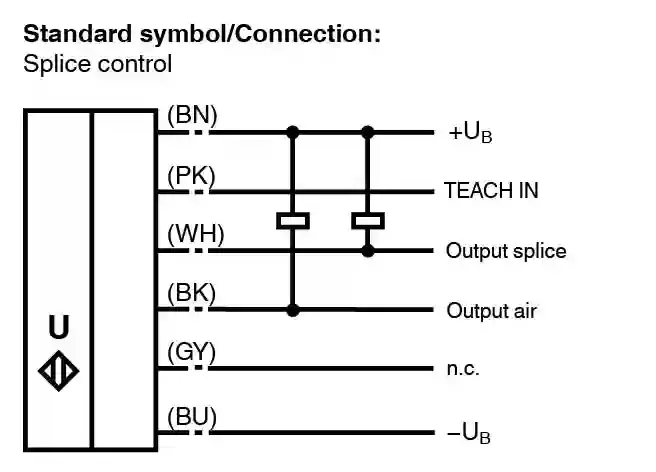

Splice sensor. Ultrasonic system for splice detection, Short version, Insensitive to printing, colors, and shining surfaces, Sensing range: 20 … 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: UGB-18GM, Operating voltage: 18 … 30 V DC , ripple 10 %SS, Output type: 2 switch outputs NPN, NC, UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: cable PVC , 2 m. Sensing range: 20 … 60 mm , optimal distance: 45 mm. Transducer frequency: 255 kHz. LED green: Display: readiness. LED yellow: Display: splice detected. LED red: indication: no sheet detected (Air). Operating voltage: 18 … 30 V DC , ripple 10 %SS. No-load supply current: < 60 mA. Time delay before availability: < 500 ms. Input type: Teach-In input 0-level: -UB … -UB + 1V1-level: +UB – 1 V … +UB. Pulse length: ≥ 500 ms. Impedance: ≥ 10 kΩ. Output type: 2 switch outputs NPN, NC. Rated operating current: 2 x 100 mA , short-circuit/overload protected. Voltage drop: ≤ 3 V. Switch-on delay: ≤ 600 µs. Switch-off delay: ≤ 600 µs. Pulse extension: ≥ 120 ms programmable. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 … 60 °C (32 … 140 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Connection type: cable PVC , 2 m. Core cross section: 0.14 mm2. Degree of protection: IP67. Material: . Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: nickel plated brass; plastic components: PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 150 g. Dimensions: . Length53 mmDiameter18 mm: . Length: 53 mm. Diameter: 18 mm
