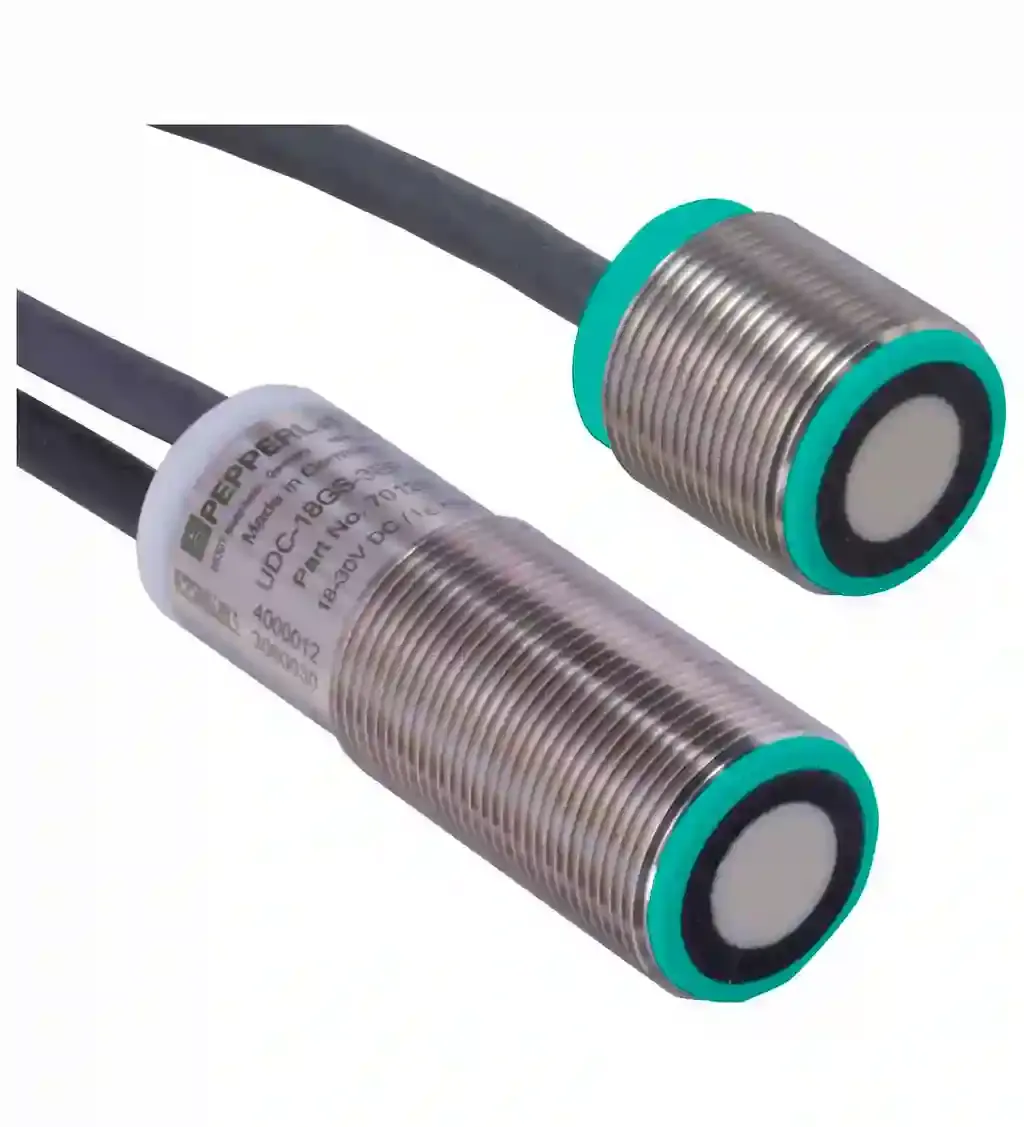

Pepperl Fuchs UDB-18GS-2E3-0,2M-V15

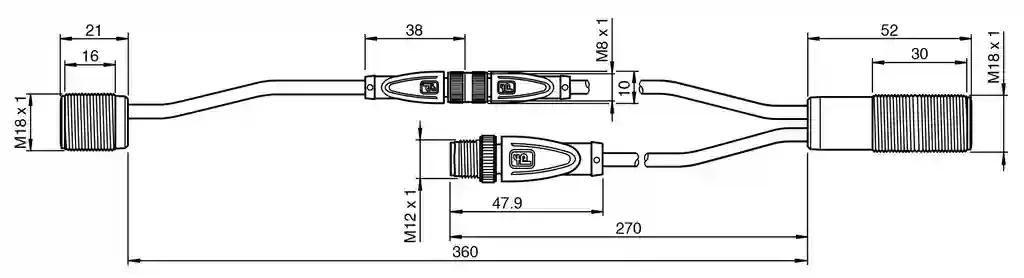

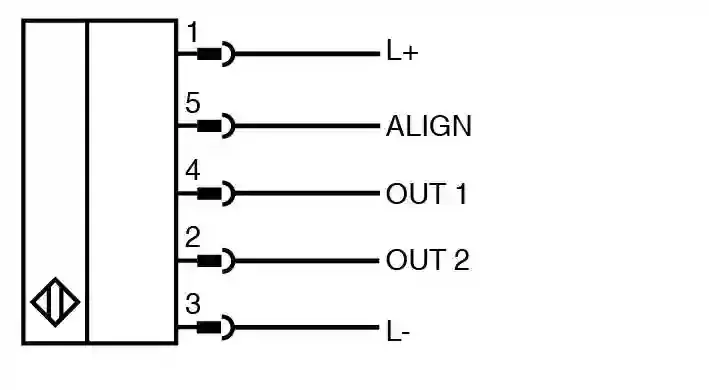

Double sheet sensor. Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, Insensitive to printing, colors, and shining surfaces, Perpendicular or inclined sensor mounting relative to the sheet plane possible, Sensing range: 20 … 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: UDB-18GS, Operating voltage: 18 … 30 V DC , ripple 10 %SS, Output type: switching output: PNP , NC contact. Sensing range: 20 … 60 mm , optimal distance: 45 mm. Transducer frequency: approx. 255 kHz. Non-volatile memory: EEPROM. Write cycles: 300000. LED green: indication: single sheet detected. LED yellow: indication: no sheet detected (Air). LED red: indication: double sheet detected flashing: device error. Operating voltage: 18 … 30 V DC , ripple 10 %SS. No-load supply current: ≤ 40 mA. Power consumption: ≤ 550 mW. Time delay before availability: ≤ 300 ms. Input type: Function input 0-level: -UB … -UB + 1V1-level: +UB – 1 V … +UB. Pulse length: ≥ 100 ms. Impedance: ≥ 60 kΩ. Designation: OUT 1, 2. Number: 2. Output function: OUT 1: single sheet detected OUT 2: double sheet detected. Output type: switching output: PNP , NC contact. Rated operating current: 100 mA per output. Voltage drop: ≤ 3 V. Switch-on delay: 15 ms. Switch-off delay: 15 ms. Fusing: reverse polarity protected , overload and short-circuit resistant. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 … 60 °C (32 … 140 °F). Storage temperature: -25 … 70 °C (-13 … 158 °F). Connection type: fixed cable with plug. Housing length ultrasonic: . Ultrasonic transmitter21 mmUltrasonic receiver52 mm: . Ultrasonic transmitter: 21 mm. Ultrasonic receiver: 52 mm. Housing diameter ultrasonic: . Ultrasonic transmitter18 mmUltrasonic receiver18 mm: . Ultrasonic transmitter: 18 mm. Ultrasonic receiver: 18 mm. Degree of protection: IP54. Material: . HousingStainless steel 1.4305/AISI 303, polyamide plastic partsTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: Stainless steel 1.4305/AISI 303, polyamide plastic parts. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Connector: . ThreadingM12 x 1Number of pins5: . Threading: M12 x 1. Number of pins: 5. Cable: . Cable diameter4.3 mmBending radius5 x diameter , fixed installationMaterialPURColorblackLengthLapprox. 200 mm: . Cable diameter: 4.3 mm. Bending radius: 5 x diameter , fixed installation. Material: PUR. Color: black. Length: approx. 200 mm. Mass: 75 g. Tightening torque, fastening screws: max. 20 Nm
