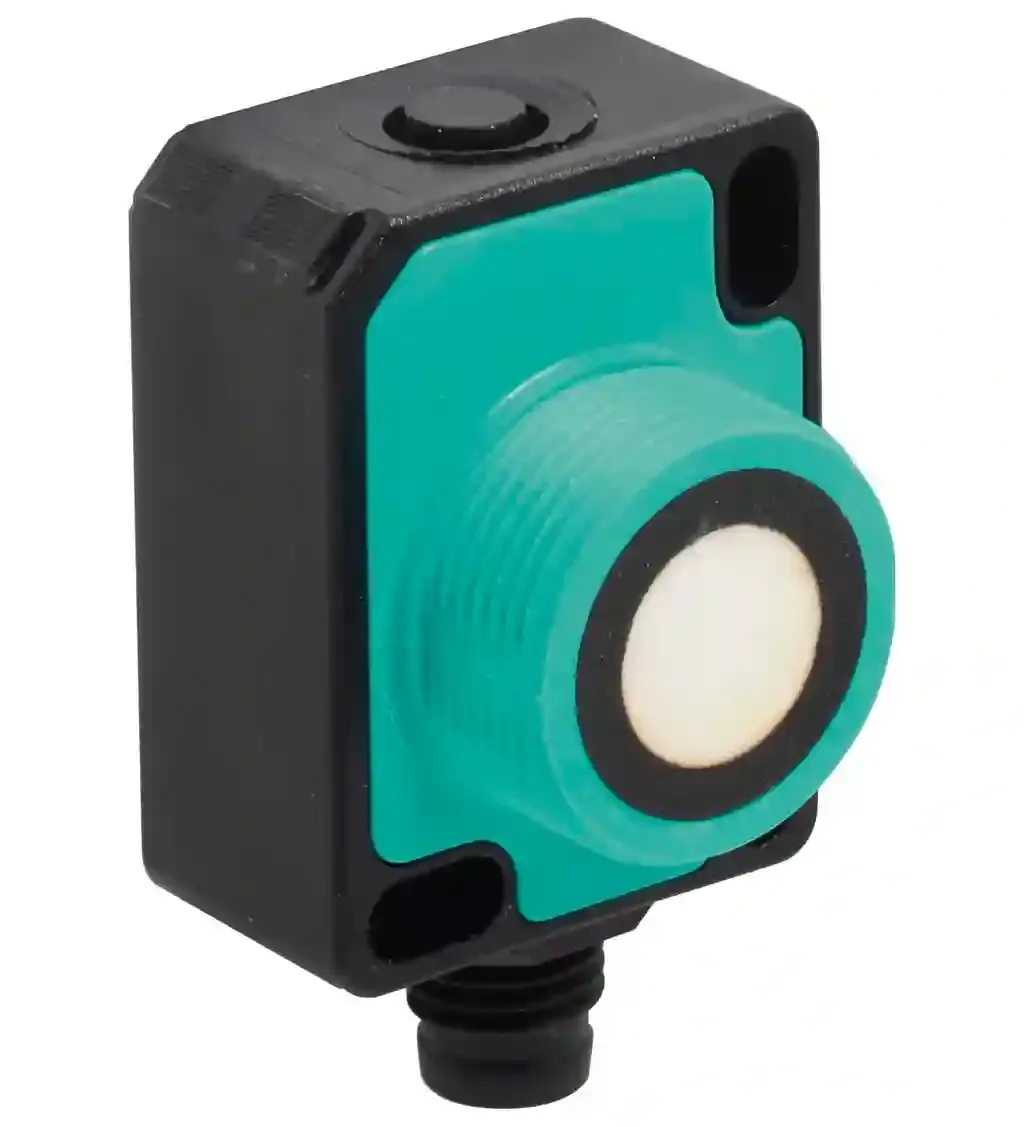

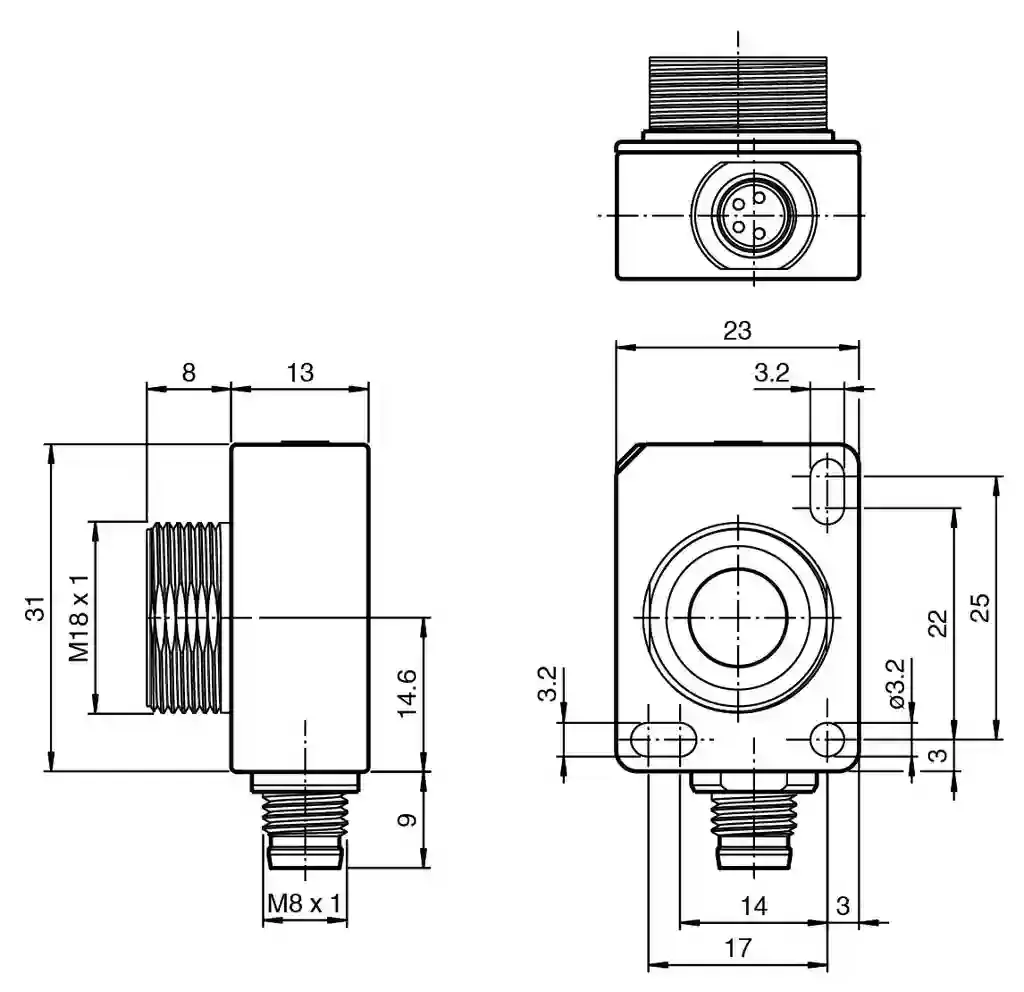

Pepperl Fuchs UC800-F77S-IU-IO-V31

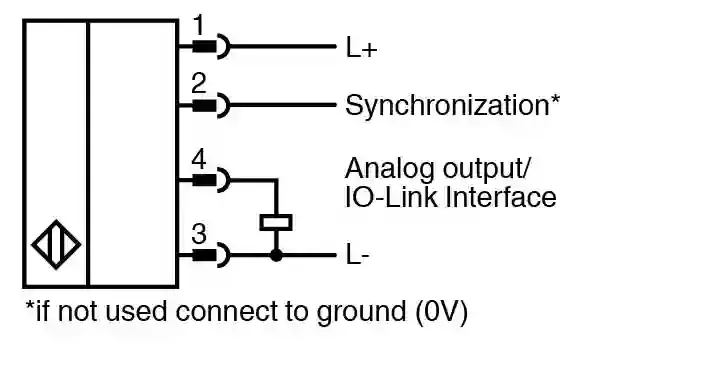

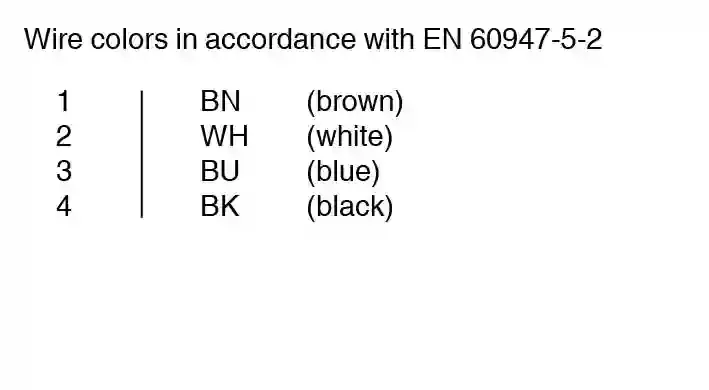

Ultrasonic sensor. Single head system, IO-Link interface for parameterization, Programmable via DTM with PACTWARE, Selectable sound lobe width, Series: -F77, Operating voltage: 18 … 30 V DC , ripple 10 %SS , Interface type: IO-Link (available after activation via programming button until next reset), Output type: 1 analog output 0 (4) … 20 mA or 1 analog output 0 … 10 V, UL approval: cULus Listed, Class 2 Power Source. Sensing range: 60 … 800 mm. Adjustment range: 70 … 800 mm. Dead band: 0 … 60 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 255 kHz. Response delay: minimum : 13 ms factory setting: 49 ms. Sensor cycle time: ≥ 13 ms (factory setting) ; programmable to 60 s. Non-volatile memory: EEPROM. Write cycles: 300000. LED green: solid: power onflashing: standby mode or IO-Link communication. LED yellow: solid: object in evaluation rangeflashing: programming of the limits, object detected. LED red: solid: faultflashing: programming limits, object not detected. Operating voltage: 18 … 30 V DC , ripple 10 %SS. No-load supply current: ≤ 50 mA. Power consumption: ≤ 500 mW. Time delay before availability: ≤ 300 ms. Interface type: IO-Link (available after activation via programming button until next reset). Input/output type: 1 synchronization connection, bidirectional. 0 Level0 … 1 V1 Level2.5 V … UBInput impedance> 22 kΩOutput currentcurrent source 22 kΩ. Output current: current source < 2.5 mA. Pulse length: ≥ 1 ms with external control, low active. Synchronization frequency: . Common mode operation≤ 82 HzMultiplex operation≤ 82 Hz / n , n = number of sensors , n ≤ 10: . Common mode operation: ≤ 82 Hz. Multiplex operation: ≤ 82 Hz / n , n = number of sensors , n ≤ 10. Output type: 1 analog output 0 (4) … 20 mA or 1 analog output 0 … 10 V. Resolution: current output: evaluation range [mm]/3200 but ≥ 0.35 mmvoltage output: evaluation range [mm]/4000 but ≥ 0.35 mm. Deviation of the characteristic curve: ≤ ± 1 % of full-scale value. Repeat accuracy: ≤ ± 0.1 % of full-scale value. Load impedance: current output: ≤ 500 Ohm voltage output: ≥ 1000 Ohm. Temperature influence: ≤ ± 0.75 % of the end value (with temperature compensation) from 10 minutes after switching on the sensor ; 0.17 %/K (without temperature compensation). Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 IEC 61131-9:2013: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 IEC 61131-9:2013. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: current output -25 … 60 °C (-13 … 140 °F) voltage output -25 … 70 °C (-13 … 158 °F) When fixing with one M18 nut, the temperature range for each begins with 0 °C (32 °F).. Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug M8 x 1 , 4-pin. Degree of protection: IP67. Material: . HousingPolycarbonateTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: Polycarbonate. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Installation position: any position. Mass: 13 g. Tightening torque, fastening screws: with M3 nuts max. 0.2 Nm with M18 nuts max. 1 Nm. Dimensions: . Height31 mmWidth21 mmLength23 mm: . Height: 31 mm. Width: 21 mm. Length: 23 mm. Output: near limit: 70 mm far limit: 800 mm Output mode: rising ramp output type: 4 … 20 mA. Beam width: wide. Scope of delivery: 1 Nut plastic
