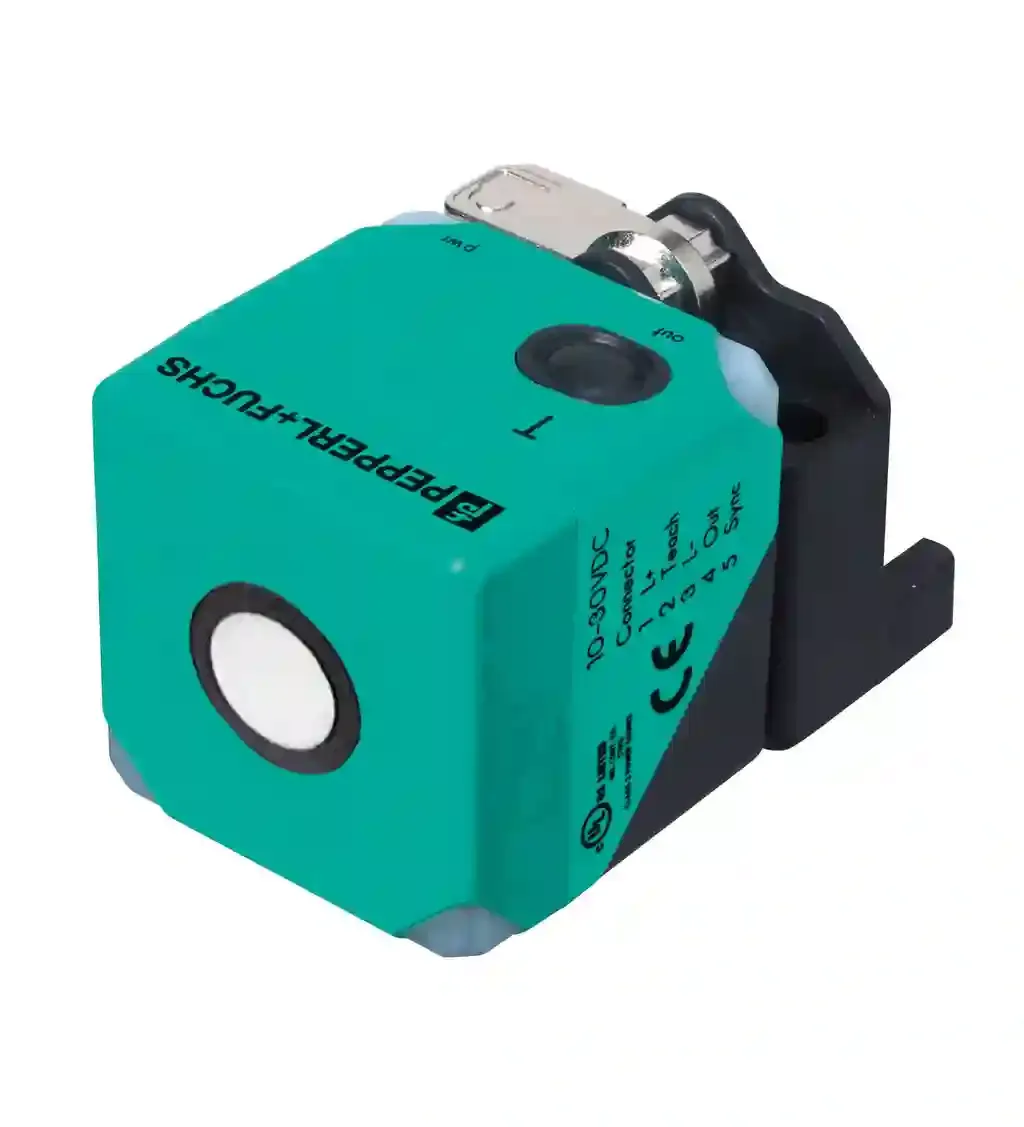

Pepperl Fuchs UC500-L2-E5-V15

Ultrasonic sensor. Single head system, Sensor head bidirectional and rotatable, Function indicators visible from all directions, Quick mounting bracket, Series: UC-L2, Operating voltage: 10 … 30 V DC , ripple 10 %SS, Interface type: Serial interface (programming adapter required) 9600 BPS, no parity, 8 data bits, 1 stop bit, Output type: 1 switching output E5, PNP NO/NC, programmable, UL approval: cULus Listed, Class 2 Power Source. Sensing range: 35 … 500 mm. Adjustment range: 50 … 500 mm. Dead band: 0 … 35 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 380 kHz. Response delay: minimum: 20 ms factory setting: 55 ms. Time delay before availability: ≤ 1600 ms. LED green: Operating display. LED yellow: switching state. LED red: error. Operating voltage: 10 … 30 V DC , ripple 10 %SS. No-load supply current: ≤ 50 mA. Interface type: Serial interface (programming adapter required) 9600 BPS, no parity, 8 data bits, 1 stop bit. Input/output type: 1 synchronization connection, bidirectional. 0 Level0 … 1 V1 Level4 V … UBInput impedance> 12 kΩOutput current 12 kΩ. Output current: 10 kΩ. Pulse length: 2 … 10 s. Output type: 1 switching output E5, PNP NO/NC, programmable. Rated operating current: 200 mA , short-circuit/overload protected. Voltage drop: ≤ 2 V. Repeat accuracy: ≤ 0.1 % of full-scale value. Switching frequency: ≤ 14 Hz. Range hysteresis: programmable , preset to 1 mm. Temperature influence: < 1.5 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP67. Material: . HousingPA-GF35Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: PA-GF35. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 115 g. Dimensions: . Height40 mmWidth40 mmLength40 mm: . Height: 40 mm. Width: 40 mm. Length: 40 mm. Output: near switch point: 50 mm far switch point: 500 mm output function: Window mode output behavior: NO contact. Beam width: wide. Evaluation procedure: averaging (MxN)M = 5N = 2. Supplementary information: Switch settings of the external programming adapter: "output load": pull-down "output logic": inv
