Pepperl Fuchs UC2000-L2-U-V15

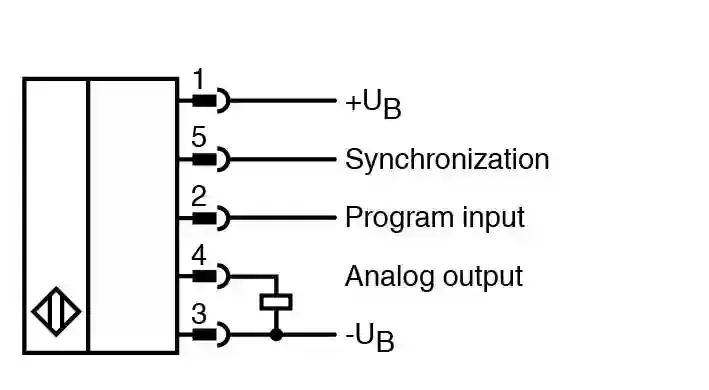

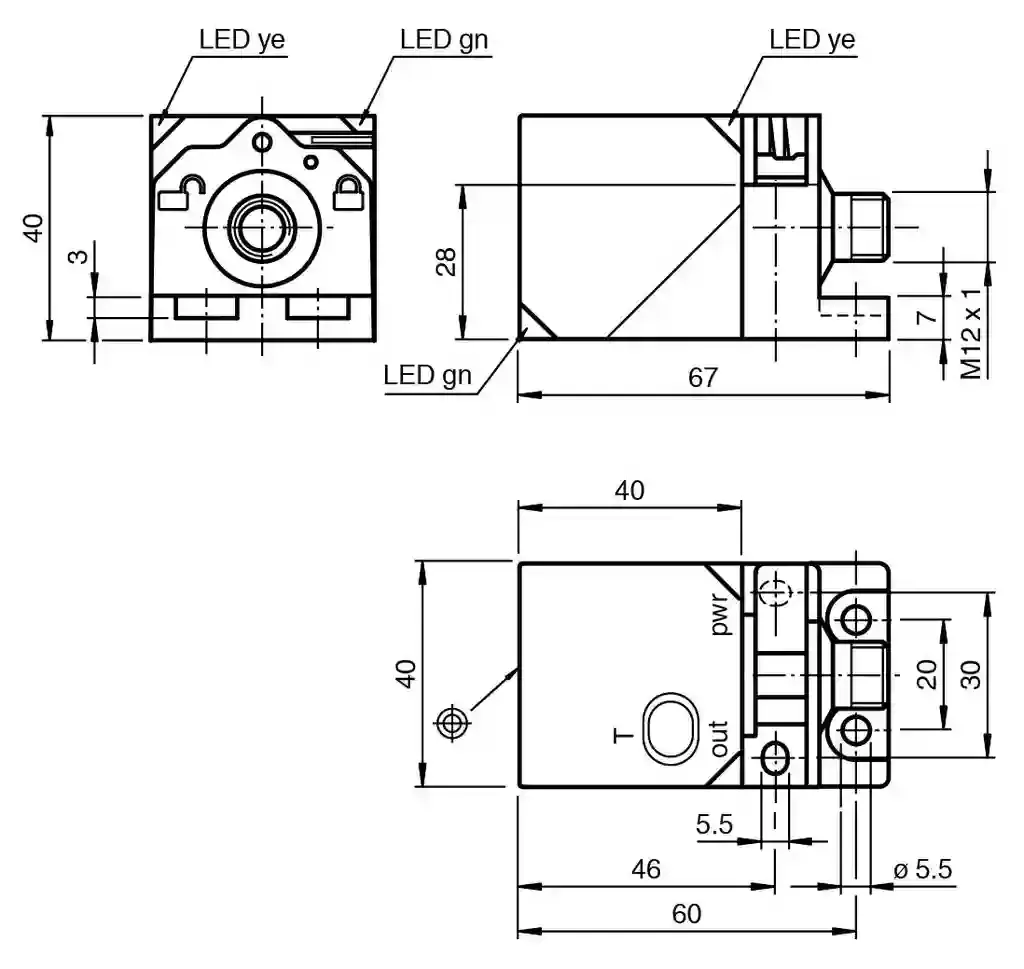

Ultrasonic sensor. Single head system, Sensor head bidirectional and rotatable, Function indicators visible from all directions, Quick mounting bracket, Series: UC-L2, Operating voltage: 12 … 30 V DC , ripple 10 %SS, Interface type: Serial interface (programming adapter required) 9600 BPS, no parity, 8 data bits, 1 stop bit, Output type: 1 analog output 0 … 10 V, UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V. Sensing range: 60 … 2000 mm. Adjustment range: 80 … 2000 mm. Dead band: 0 … 60 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 175 kHz. Response delay: minimum: 60 ms factory setting: 330 ms. Time delay before availability: ≤ 1600 ms. LED green: Operating display. LED yellow: object in evaluation range. LED red: error. Operating voltage: 12 … 30 V DC , ripple 10 %SS. No-load supply current: ≤ 50 mA. Interface type: Serial interface (programming adapter required) 9600 BPS, no parity, 8 data bits, 1 stop bit. Input/output type: 1 synchronization connection, bidirectional. 0 Level0 … 1 V1 Level4 V … UBInput impedance> 12 kΩOutput current 12 kΩ. Output current: 12 kΩ. Pulse length: 2 … 10 s. Output type: 1 analog output 0 … 10 V. Resolution: evaluation range [mm]/4000, but ≥ 0.4 mm. Deviation of the characteristic curve: ≤ 0.2 % of full-scale value. Repeat accuracy: ≤ 0.1 % of full-scale value. Load impedance: ≥ 500 Ohm. Temperature influence: ≤ 1.5 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP67. Material: . HousingPA-GF35Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: PA-GF35. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 115 g. Dimensions: . Height40 mmWidth40 mmLength40 mm: . Height: 40 mm. Width: 40 mm. Length: 40 mm. Output: evaluation limit A1: 80 mm evaluation limit A2: 2000 mm output function: rising ramp. Beam width: wide. Evaluation procedure: low-pass behavior. Supplementary information: Switch settings of the external programming adapter: “output load”: pull-down “output logic”: noninv
