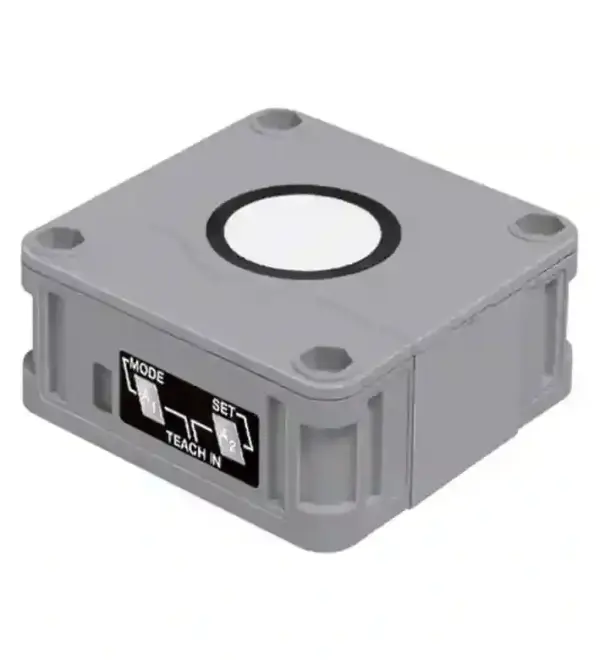

Pepperl Fuchs UB4000-F42-U-V15

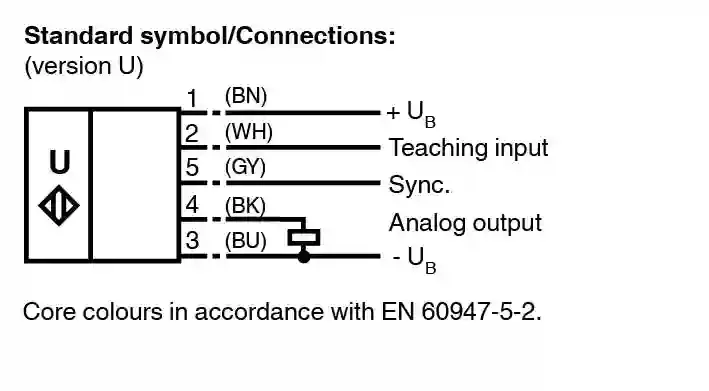

Ultrasonic sensor. Single head system, Analog output 0 … 10 V, Extremely small unusable area, TEACH-IN, Series: UB-F42, Operating voltage: 17 … 30 V DC , ripple 10 %SS, Output type: 1 analog output 0 … 10 V, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 5-pin, Housing: ABS. Sensing range: 200 … 4000 mm. Adjustment range: 240 … 4000 mm. Dead band: 0 … 200 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 85 kHz. Response delay: approx. 325 ms. LED green: solid green: Power on. LED yellow: solid: object in evaluation rangeflashing: program function. LED red: normal operation: “fault”program function: no object detected. Operating voltage: 17 … 30 V DC , ripple 10 %SS. No-load supply current: ≤ 60 mA. Synchronization: bi-directional0 level -UB…+1 V1 level: +4 V…+UB input impedance: > 12 KOhmsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms. Synchronization frequency: . Common mode operationmax. 13 HzMultiplex operation≤ 13/n Hz, n = number of sensors: . Common mode operation: max. 13 Hz. Multiplex operation: ≤ 13/n Hz, n = number of sensors. Output type: 1 analog output 0 … 10 V. Default setting: evaluation limit A1: 240 mm , evaluation limit A2: 4000 mm , wide sound lobe. Resolution: 0.7 mm. Deviation of the characteristic curve: ± 1 % of full-scale value. Repeat accuracy: ± 0.1 % of full-scale value. Load impedance: > 1 kOhm. Temperature influence: ± 1 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP54. Material: . HousingABSTransducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT: . Housing: ABS. Transducer: epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT. Mass: 150 g. Dimensions: . Height80 mmWidth80 mmLength34 mm: . Height: 80 mm. Width: 80 mm. Length: 34 mm
