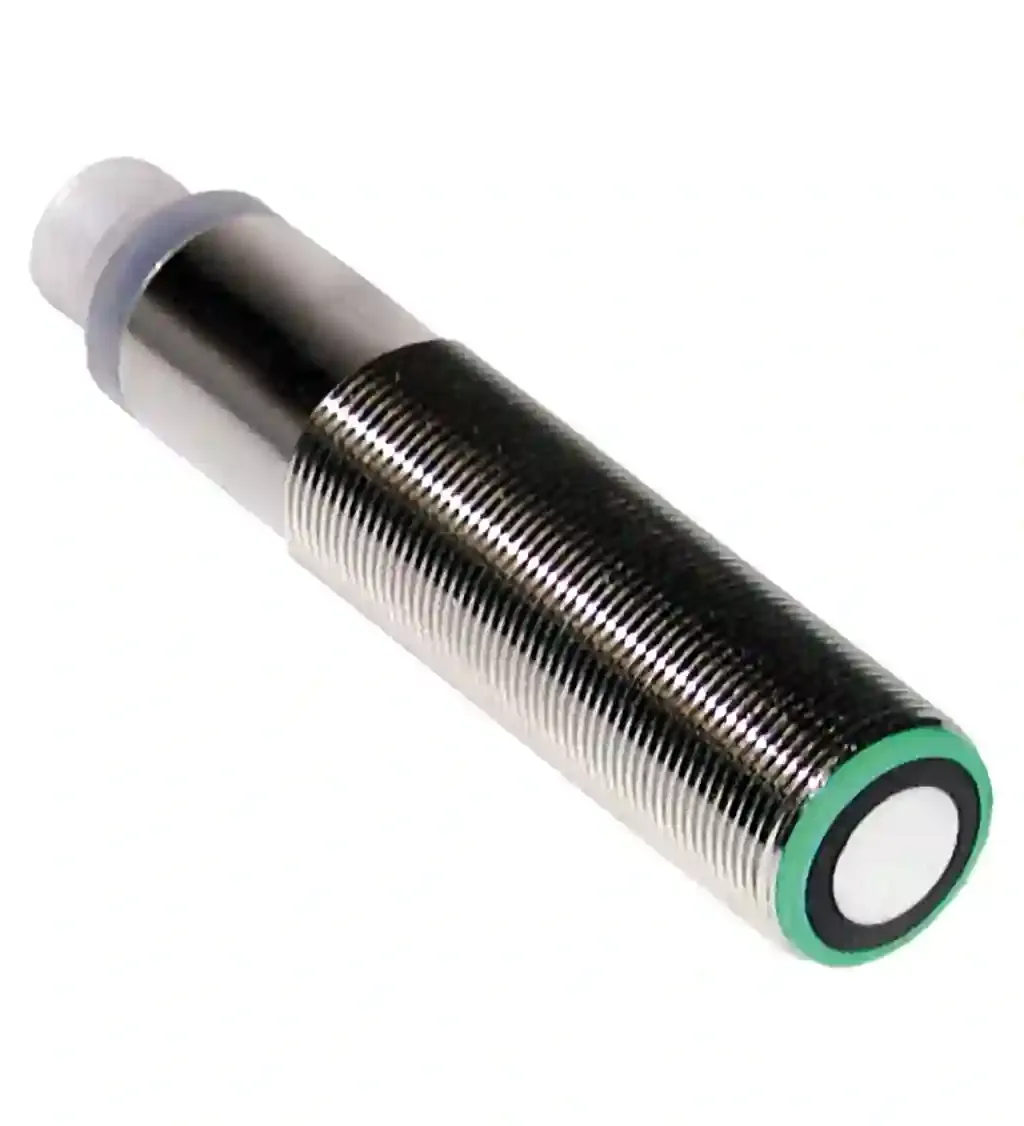

Pepperl Fuchs UB1000-18GM75-U-V15

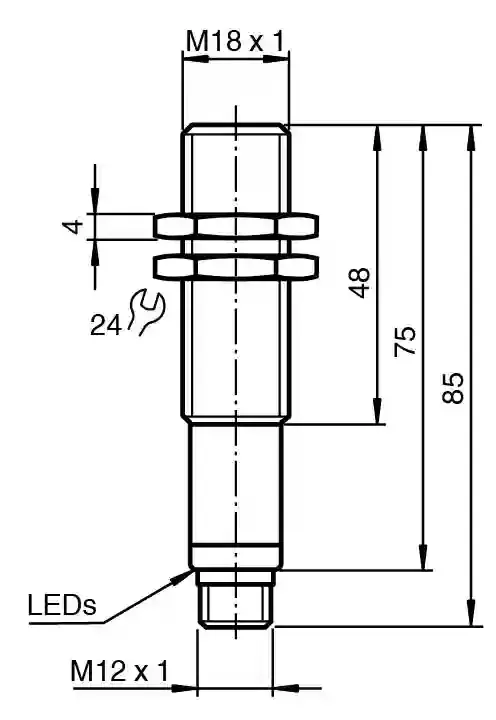

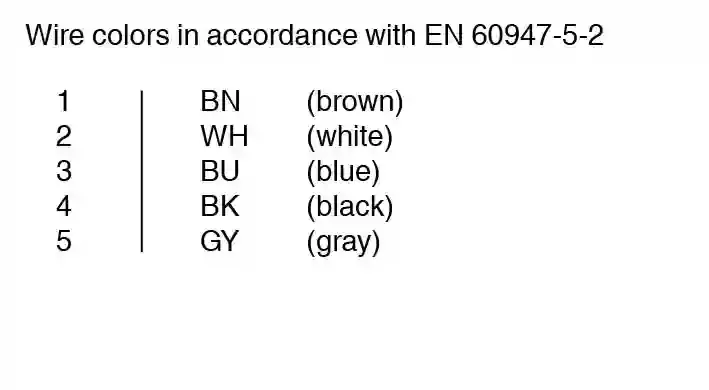

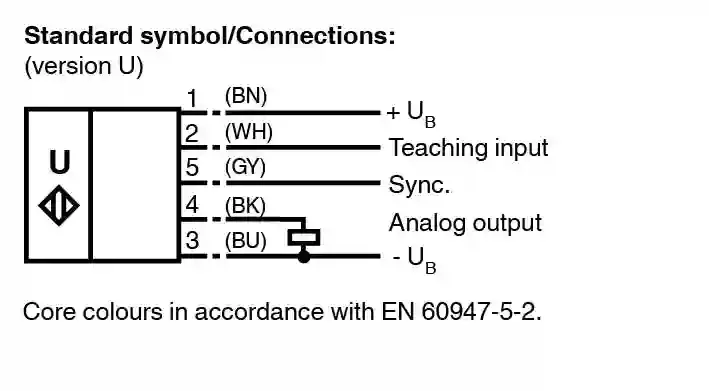

Ultrasonic sensor. Single head system, Analog output 0 … 10 V, Measuring window adjustable, Selectable sound lobe width, Series: UB-18GM75, Operating voltage: 15 … 30 V DC , ripple 10 %SS, Output type: 1 analog output 0 … 10 V, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 5-pin, Housing: brass, nickel-plated. Sensing range: 70 … 1000 mm. Adjustment range: 90 … 1000 mm. Dead band: 0 … 70 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 255 kHz. Response delay: approx. 125 ms. LED yellow: solid yellow: object in the evaluation rangeyellow, flashing: program function, object detected. LED red: solid red: Errorred, flashing: program function, object not detected. Operating voltage: 15 … 30 V DC , ripple 10 %SS. No-load supply current: ≤ 50 mA. Synchronization: 1 synchronous connection, bi-directional0-level: -UB…+1 V1-level: +4 V…+UB input impedance: > 12 kΩsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms. Synchronization frequency: . Common mode operationmax. 40 HzMultiplex operation≤ 40 Hz / n, n = number of sensors, n ≤ 5: . Common mode operation: max. 40 Hz. Multiplex operation: ≤ 40 Hz / n, n = number of sensors, n ≤ 5. Input type: 1 program inputlower evaluation limit A1: -UB … +1 V, upper evaluation limit A2: +4 V … +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s. Output type: 1 analog output 0 … 10 V. Resolution: 0.35 mm. Deviation of the characteristic curve: ± 1 % of full-scale value. Repeat accuracy: ± 0.1 % of full-scale value. Load impedance: > 1 kOhm. Temperature influence: ± 1.5 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP67. Material: . Housingbrass, nickel-platedTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: brass, nickel-plated. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 60 g. Dimensions: . Length75 mmDiameter18 mm: . Length: 75 mm. Diameter: 18 mm. Output: evaluation limit A1: 90 mm evaluation limit A2: 1000 mm output function: rising ramp. Beam width: wide
