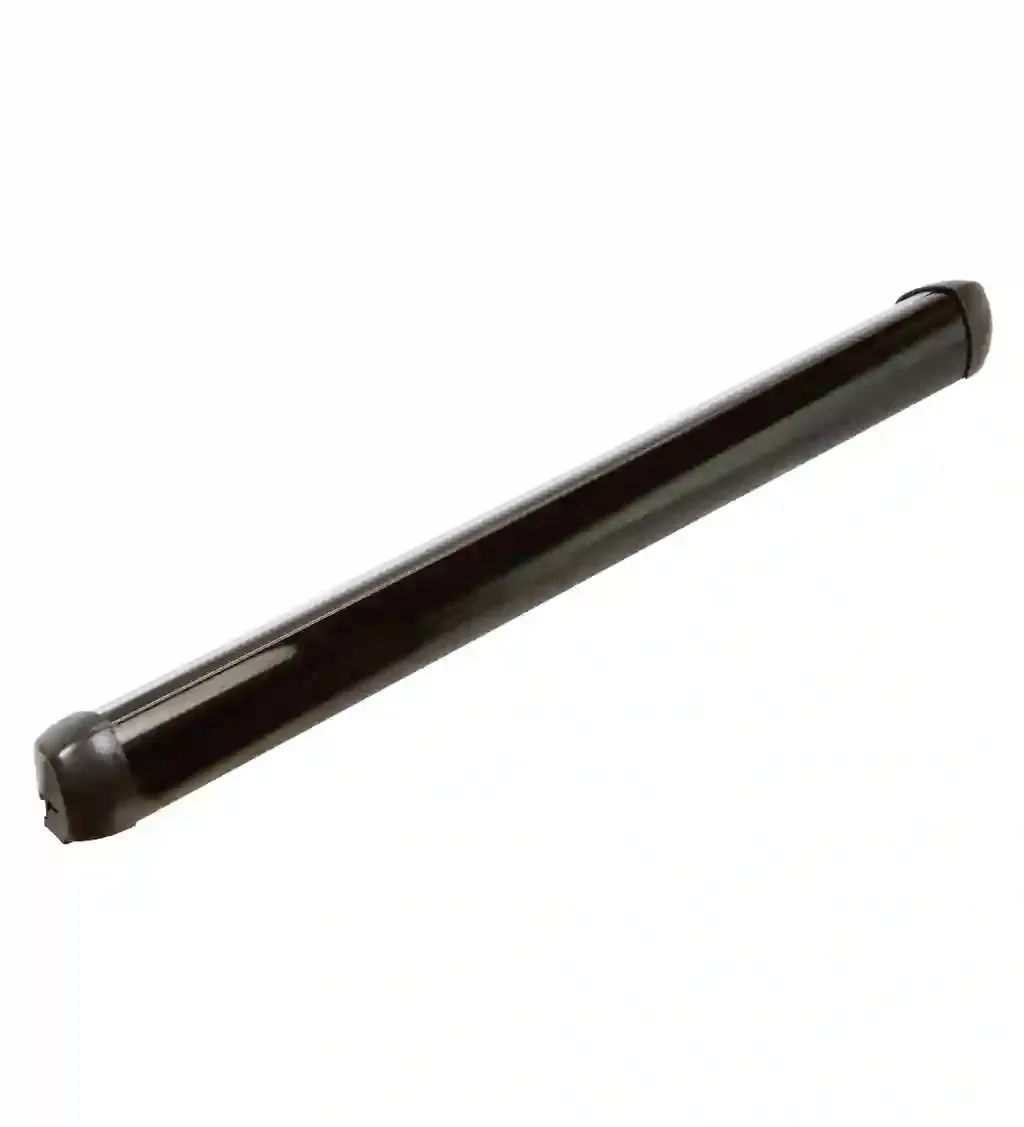

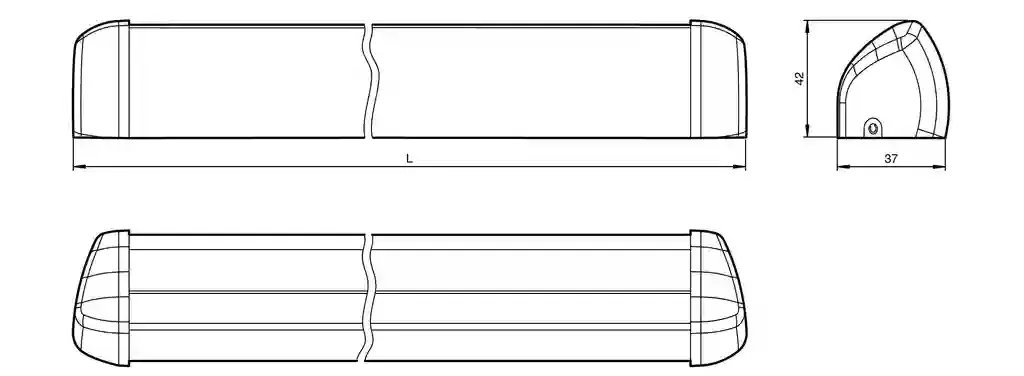

Pepperl Fuchs TopScan-S-M2S/L750

Active infrared scanner. Moving presence sensor for swing doors, Configurable for a wide range of door leaf widths, Category 2, tested and certified to DIN 18650/EN 16005, Modular construction with master/slave modules, Safe function even on difficult floors, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 24 V DC +/- 20 %, Signal output: Relay, 1 alternator. Detection range min.: 0 … 1500 mm. Detection range max.: 0 … 2500 mm. Reference target: Minimum degree of reflection of the floor: 6 % Minimum degree of reflection to objects being detected: 0 %. Light source: IRED. Light type: modulated infrared light 875 nm. Black-white difference (6 %/90 %): < 2 % at 2000 mm sensor range. Number of beams: 3 (number of built-in sensor modules AIR). Operating mode: Background evaluation. Diameter of the light spot: 1.1 cm x 8.3 cm at 2000 mm sensor range. Resolution: Reference object CA DIN 186850-1/EN 16005 in all applicable locations. Safety Integrity Level (SIL): SIL 1. Performance level (PL): PL c. Category: Cat. 2. MTTFd: 880 a per module. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 90 %. Function indicator: LED red/green. Control elements: Sensing range adjuster ; Adjuster for edge monitoring left/right. Operating voltage: 24 V DC +/- 20 %. No-load supply current: 210 mA. Test input: active at U = 11 V DC at 30 V DC inactive at U = -3 V DC at 5 V DC. Switching type: Relay de-energized at object inside the scanning range. Signal output: Relay, 1 alternator. Switching voltage: 5 V … 30 V AC/DC. Switching current: max. 300 mA. Response time: ≤ 70 ms. Functional safety: ISO 13849-1. Product standard: EN 12978 ; EN 16005 ; DIN 18650. CCC approval: CCC approval / marking not required for products rated ≤36 V. TÜV approval: TÜV NORD. Ambient temperature: -10 … 50 °C (14 … 122 °F). Relative humidity: Humidity at 20 °C: < 90 % Humidity at 60 °C: < 50 %. Housing length L: 750 mm. Mounting height: max. 2500 mm. Degree of protection: IP52 , IP54 Optional (with special seal). Connection: screw terminals ; Cable cross-section 0.3 mm2 … 1.3 mm2 (AWG26-16), single-stranded/multistranded CU. Material: . Housingaluminum / ABSOptical facePMMA: . Housing: aluminum / ABS. Optical face: PMMA. Dimensions: . Height42 mmDepth37 mmLength750 mm: . Height: 42 mm. Depth: 37 mm. Length: 750 mm. Cable length: max. 30 m. Note: Safety fuse ≤ 1 A (slow-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly.
