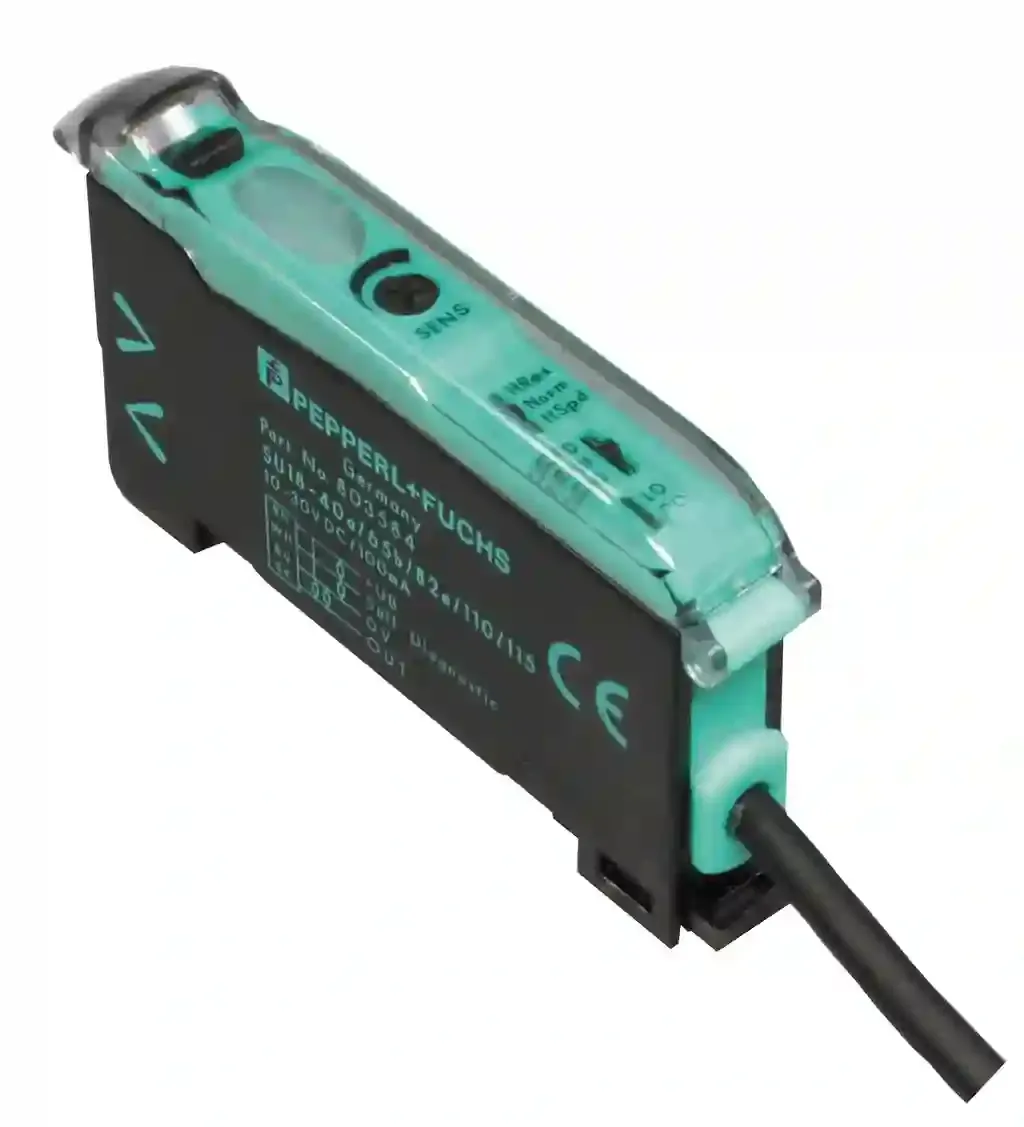

Pepperl Fuchs SU18-16/40a/110/115/126a

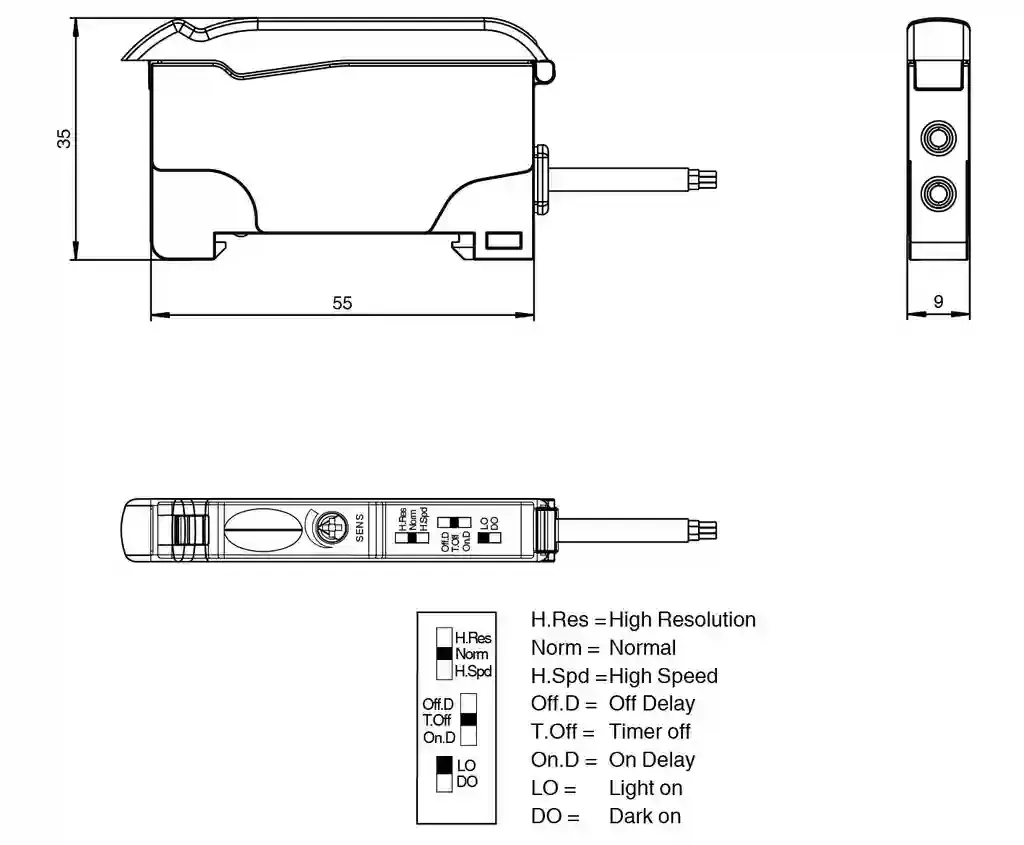

Fiber optic sensor. Fiber optic sensor for glass fiber optics and plastic fiber optics, Basic line for DIN rail installation, Sleek design, 3 response times selectable, High switching frequency, Self diagnosis function. Sensor range: up to 150 mm (KLR-C02-2,2-2,0-K146). Detection range: up to 450 mm (KLE-C01-2,2-2,0-K116). Light source: LED. Light type: modulated visible red light , 660 nm. Ambient light limit: 10000 Lux. MTTFd: 690 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz). Function indicator: LED yellow: static illumination switching state, flashes when falling short of the operating reserve. Control elements: Potentiometer for setting sensitivity slide switch 2 positions: light/dark switching slide switch 3 positions: timer function – timer off, on delay 40 ms, off-delay 40 ms slide switch 3 positions: operating mode – normal, high speed , high resolution. Operating voltage: 10 … 30 V DC. Ripple: 10 %. No-load supply current: ≤ 30 mA. Stability alarm output: 1 push-pull (4 in 1) output NPN/PNP , short-circuit protected. Switching type: light/dark on, switchable. Signal output: 1 push-pull (4 in 1) output NPN/PNP , short-circuit protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 2 V DC at 100 mA ; ≤ 0.7 V at 10 mA. Switching frequency: Standard mode: 3 kHz , High speed mode: 6 kHz , High resolution: 250 Hz. Response time: Standard mode: 160 µs , High speed mode: 80 µs , High resolution: 2 ms. Repeat accuracy: ≤ 0.5 % of adjusted sensor range. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -10 … 55 °C (14 … 131 °F). Storage temperature: -20 … 70 °C (-4 … 158 °F). Degree of protection: IP50. Connection: 2 m PVC cable, 4 x 0,14 mm2. Material: . HousingPC: . Housing: PC. Mass: 45 g. Dimensions: . Height34.5 mmWidth9 mmDepth62.3 mm: . Height: 34.5 mm. Width: 9 mm. Depth: 62.3 mm
