Pepperl Fuchs SL-2ES-2SC
Industrial Ethernet Media Converter. SlimLine Industrial Connectivity, 2 Port Industrial Ethernet Fiber Optic Media Converter. Input voltage: 10 … 30 VDC (Redundant). Power consumption: 2 W typical….
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Industrial Ethernet Media Converter. SlimLine Industrial Connectivity, 2 Port Industrial Ethernet Fiber Optic Media Converter. Input voltage: 10 … 30 VDC (Redundant). Power consumption: 2 W typical. Input devices: fiber optic (multimode) SC connectors. Electromagnetic compatibility: FCC part 15, ICES-003; EN61000-6-4, CEEN61000-6-2, CE. Operating temperature: -10 … 60 °C (14 … 140 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Relative humidity: 5 … 95 %, noncondensing. Vibration resistance: IEC60068-2-6. Degree of protection: IP30. Connection: SC type. Material: Case: UL94V0 Lexan. Mass: 0.11 kg. Dimensions: see mechanical drawing. Mounting: DIN rail or direct panel mounting. EU-type examination certificate: EN60079-15 (Zone 2, Category 3), CE. UL approval: UL 508/CSA C22.2/14, EN61010-1, CEUL 1604/CSA C22.2/213 (Class I, Div. 2)
Specification
Supply
| Input voltage | 10 ... 30 VDC (Redundant) |
|---|---|
| Power consumption | 2 W typical |
Indicators/operating means
| Input devices | fiber optic (multimode) SC connectors |
|---|
Directive conformity
| Electromagnetic compatibility | FCC part 15, ICES-003; EN61000-6-4, CEEN61000-6-2, CE |
|---|
Ambient conditions
| Operating temperature | -10 ... 60 °C (14 ... 140 °F) |
|---|---|
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 5 ... 95 %, noncondensing |
| Vibration resistance | IEC60068-2-6 |
Mechanical specifications
| Degree of protection | IP30 |
|---|---|
| Connection | SC type |
| Material | Case: UL94V0 Lexan |
| Mass | 0.11 kg |

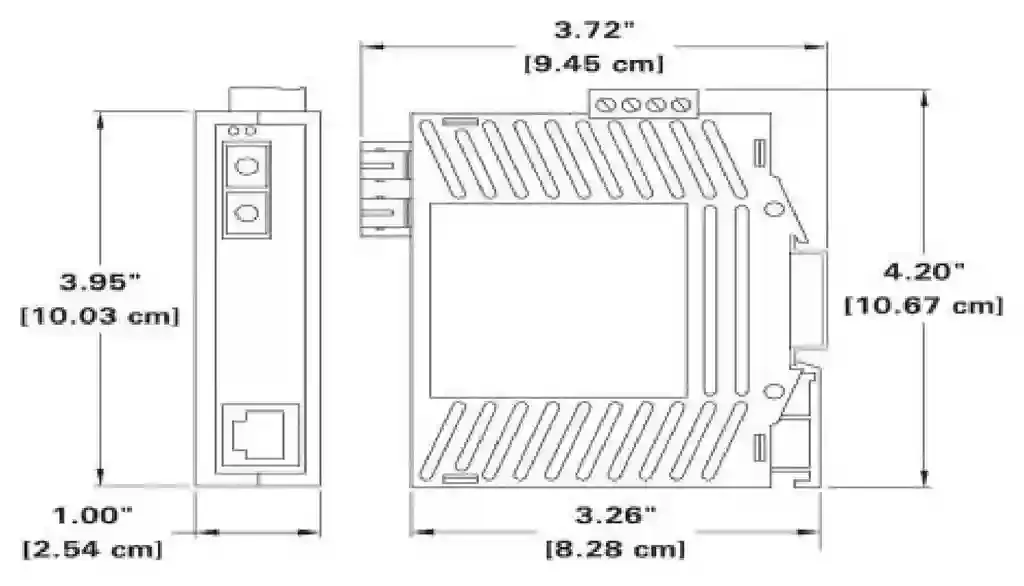

| Dimensions | see mechanical drawing |
| Mounting | DIN rail or direct panel mounting |
Data for application in connection with hazardous areas
| EU-type examination certificate | EN60079-15 (Zone 2, Category 3), CE |
|---|
International approvals
| UL approval | UL 508/CSA C22.2/14, EN61010-1, CEUL 1604/CSA C22.2/213 (Class I, Div. 2) |
|---|
