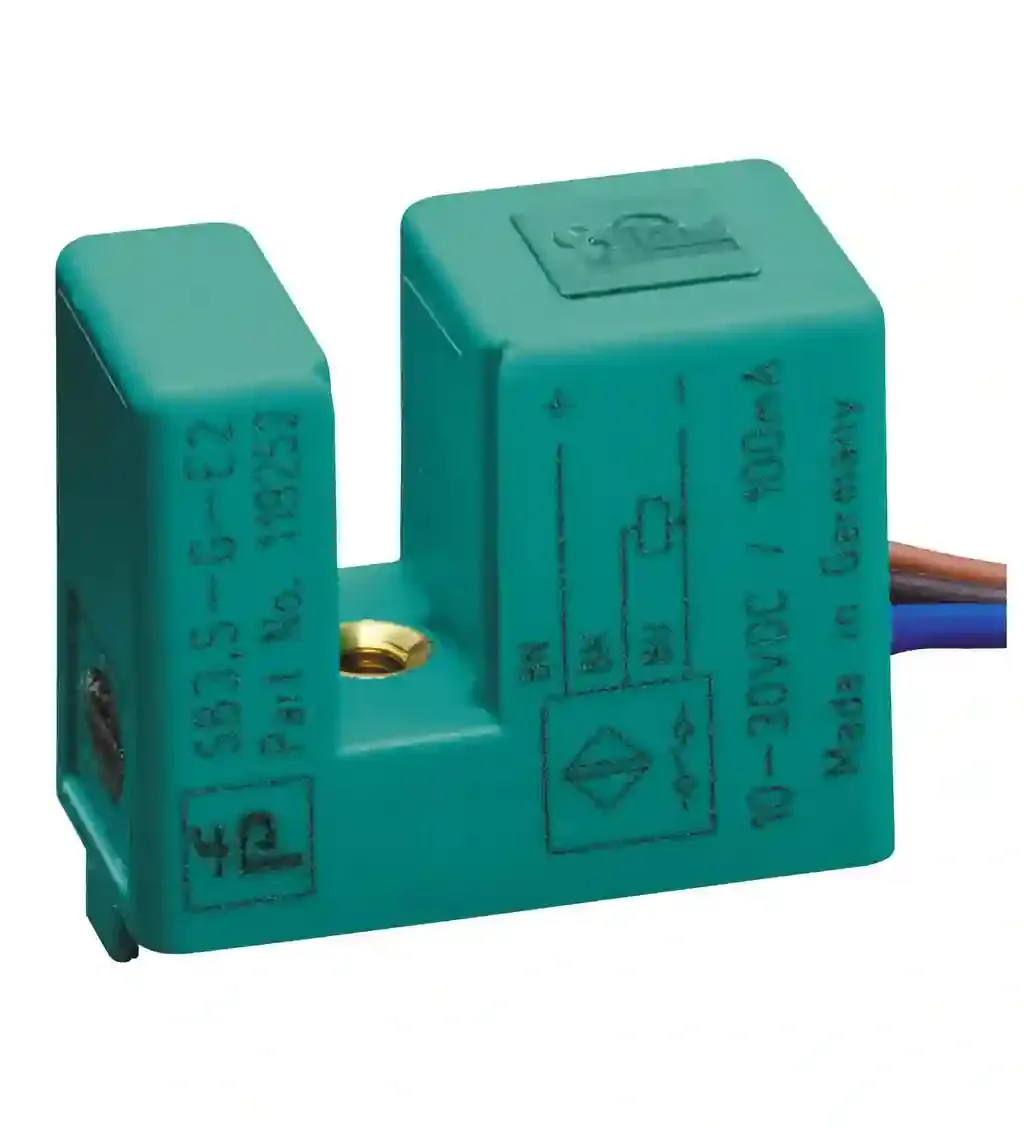

Pepperl Fuchs SB3,5-G-E2

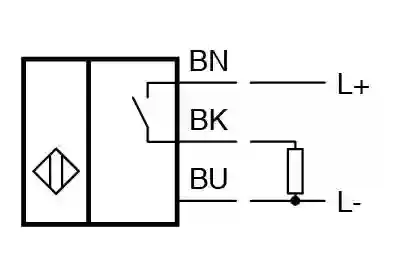

Inductive slot sensor. Switching function: Normally open (NO), Output type: PNP, Output polarity: DC, Output type: 3-wire, Construction type: Slot, Series: Slot type, Operating voltage: 10 … 30 V DC, Type of voltage: DC, Connection type: flexible leads PVC , 135 mm, Housing material: PBT, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Slot width: 3.5 mm. Depth of immersion (lateral): 5 … 7 mm. Output polarity: DC. Output type: 3-wire. Operating voltage: 10 … 30 V DC. Switching frequency: 0 … 2000 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 … 100 mA. No-load supply current: ≤ 15 mA. Switching state indicator: LED, yellow. MTTFd: 2590 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Connection type: flexible leads PVC , 135 mm. Core cross section: 0.14 mm2. Housing material: PBT. Degree of protection: IP67. Dimensions: . Height15 mmWidth10 mmLength19.5 mm: . Height: 15 mm. Width: 10 mm. Length: 19.5 mm
