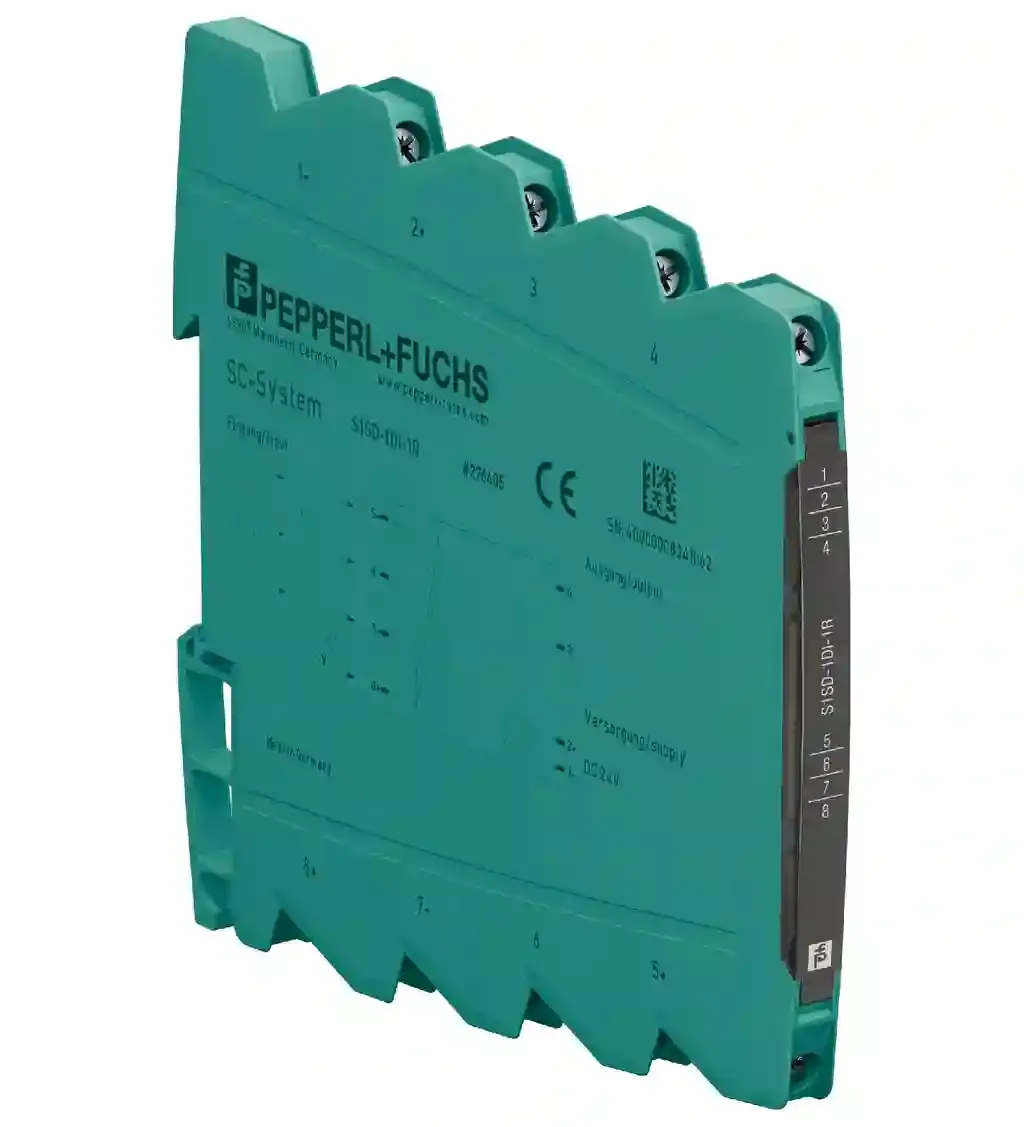

Pepperl Fuchs S1SD-1DI-1R

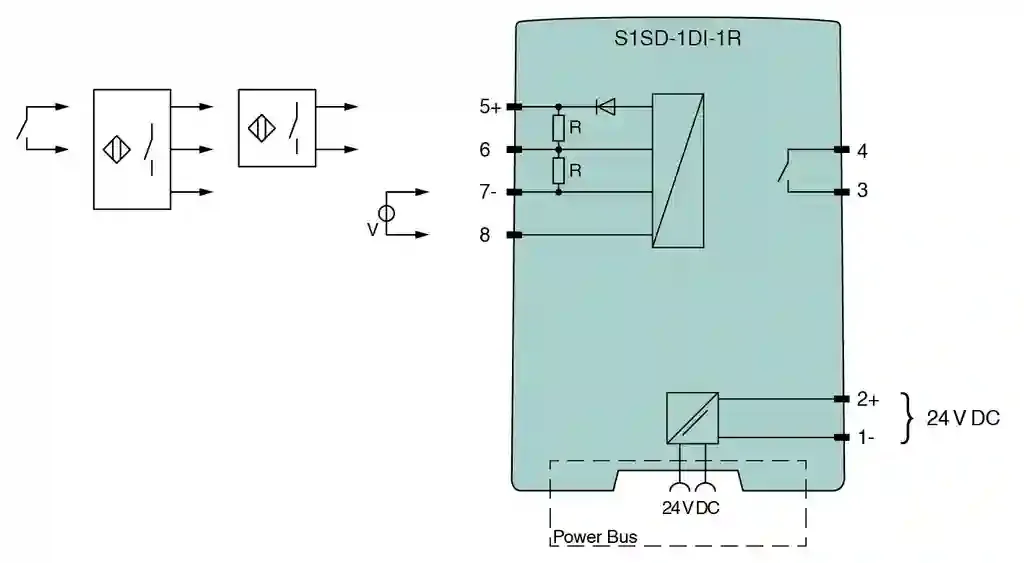

Switch Amplifier. 1-channel signal conditioner, 24 V DC supply, Input for 2- or 3-wire sensors or AC/DC voltage sources, Relay contact output, Timer function, Configurable by DIP switches, Connection via screw terminals, Number of channels: 1-channel, Time function, Signal type: Digital Input, Rated voltage: 16.8 … 31.2 V DC, Field device: NAMUR sensor, Field device [2]: volt-free contact, Field device [3]: 2-wire DC sensor, Field device [4]: SN sensor, Field device [5]: S0 sensor, Field device [6]: NPN sensor. Signal type: Digital Input. Connection: Power Bus or terminals 1-, 2+. Rated voltage: 16.8 … 31.2 V DC. Power dissipation: 0.6 W. Power consumption: 1.1 W. Connection side: field side. NAMUR sensor: . Type2-wireConnectionterminals 5+, 6Signalacc. to EN 60947-5-6 (NAMUR)Sensor supply8 VOpen-circuit 6 mAInput impedance1 kΩ: . Type: 2-wire. Connection: terminals 5+, 6. Signal: acc. to EN 60947-5-6 (NAMUR). Sensor supply: 8 V. Open-circuit: 6 mA. Input impedance: 1 kΩ. Mechanical contact: . Type2-wireConnectionterminals 5+, 6Sensor supply15 VExternal supply≤ 32 VSwitching point8 … 10 V / 1.2 … 2.1 mAInput impedance4 kΩ: . Type: 2-wire. Connection: terminals 5+, 6. Sensor supply: 15 V. External supply: ≤ 32 V. Switching point: 8 … 10 V / 1.2 … 2.1 mA. Input impedance: 4 kΩ. SN sensor: . Type2-wireConnectionterminals 5+, 6Sensor supply8 VOpen-circuit 6 mAInput impedance1 kΩ: . Type: 2-wire. Connection: terminals 5+, 6. Sensor supply: 8 V. Open-circuit: 6 mA. Input impedance: 1 kΩ. 2-wire DC sensor: . Type2-wireConnectionterminals 5+, 6Signalacc. to EN 60947-5-2Sensor supply16 V / 25 mA , short-circuit protectedExternal supply≤ 32 VSwitching point2 … 5 mAInput impedance1 kΩ: . Type: 2-wire. Connection: terminals 5+, 6. Signal: acc. to EN 60947-5-2. Sensor supply: 16 V / 25 mA , short-circuit protected. External supply: ≤ 32 V. Switching point: 2 … 5 mA. Input impedance: 1 kΩ. S0 sensor: . Type2-wireConnectionterminals 5+, 6Signalacc. to EN 62053-31 , Type BSensor supply15 VSwitching point0.15 … 2 mAInput impedance4 kΩ: . Type: 2-wire. Connection: terminals 5+, 6. Signal: acc. to EN 62053-31 , Type B. Sensor supply: 15 V. Switching point: 0.15 … 2 mA. Input impedance: 4 kΩ. NPN sensor: . Type3-wireConnectionterminals 5+, 6, 7-Signalacc. to EN 60947-5-2Sensor supply16 V / 25 mA , short-circuit protectedExternal supply≤ 32 VSwitching point3 … 5 VInput impedance4 kΩ: . Type: 3-wire. Connection: terminals 5+, 6, 7-. Signal: acc. to EN 60947-5-2. Sensor supply: 16 V / 25 mA , short-circuit protected. External supply: ≤ 32 V. Switching point: 3 … 5 V. Input impedance: 4 kΩ. PNP sensor: . Type3-wireConnectionterminals 5+, 6, 7-Signalacc. to EN 60947-5-2Sensor supply16 V / 25 mA , short-circuit protectedExternal supply≤ 32 VSwitching point8 … 10 VInput impedance4 kΩ: . Type: 3-wire. Connection: terminals 5+, 6, 7-. Signal: acc. to EN 60947-5-2. Sensor supply: 16 V / 25 mA , short-circuit protected. External supply: ≤ 32 V. Switching point: 8 … 10 V. Input impedance: 4 kΩ. AC/DC voltage source: . Connectionterminals 7, 8Signal24 V AC/DCSwitching point10 … 15 VInput impedance> 680 kΩ: . Connection: terminals 7, 8. Signal: 24 V AC/DC. Switching point: 10 … 15 V. Input impedance: > 680 kΩ. AC/DC voltage source: . Connectionterminals 7, 8Signal115 V AC/DCSwitching point40 … 60 VInput impedance> 680 kΩ: . Connection: terminals 7, 8. Signal: 115 V AC/DC. Switching point: 40 … 60 V. Input impedance: > 680 kΩ. AC/DC voltage source: . Connectionterminals 7, 8Signal230 V AC/DCSwitching point80 … 115 VInput impedance> 680 kΩ: . Connection: terminals 7, 8. Signal: 230 V AC/DC. Switching point: 80 … 115 V. Input impedance: > 680 kΩ. Connection side: control side. Connection: terminals 3, 4:. Output: signal, relay. Contact loading: 253 V AC/2 A/cos φ > 0.7; 126.5 V AC/2 A/cos φ > 0.7; 30 V DC/2 A resistive load. Minimum switch current: 2 mA / 24 V DC. Energized/De-energized delay: ≤ 20 ms / ≤ 20 ms. Mechanical life: 107 switching cycles. Switching frequency: ≤ 10 Hz. Output/power supply: safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min. Input/Other circuits: safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min. Control elements: DIP switch. Configuration: via DIP switches. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Degree of protection: IEC 60529:2001. Protection against electrical shock: EN 61010-1:2010. Ambient temperature: -25 … 70 °C (-13 … 158 °F). Storage temperature: -40 … 85 °C (-40 … 185 °F). Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20. Connection: screw terminals. Core cross section: 0.5 … 2.5 mm2 (20 … 14 AWG). Mass: approx. 60 g. Dimensions: 6.2 x 97 x 107 mm (0.24 x 3.82 x 4.21 inch) (W x H x D) , housing type S1. Height97 mmWidth6.2 mmDepth107 mm: . Height: 97 mm. Width: 6.2 mm. Depth: 107 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
