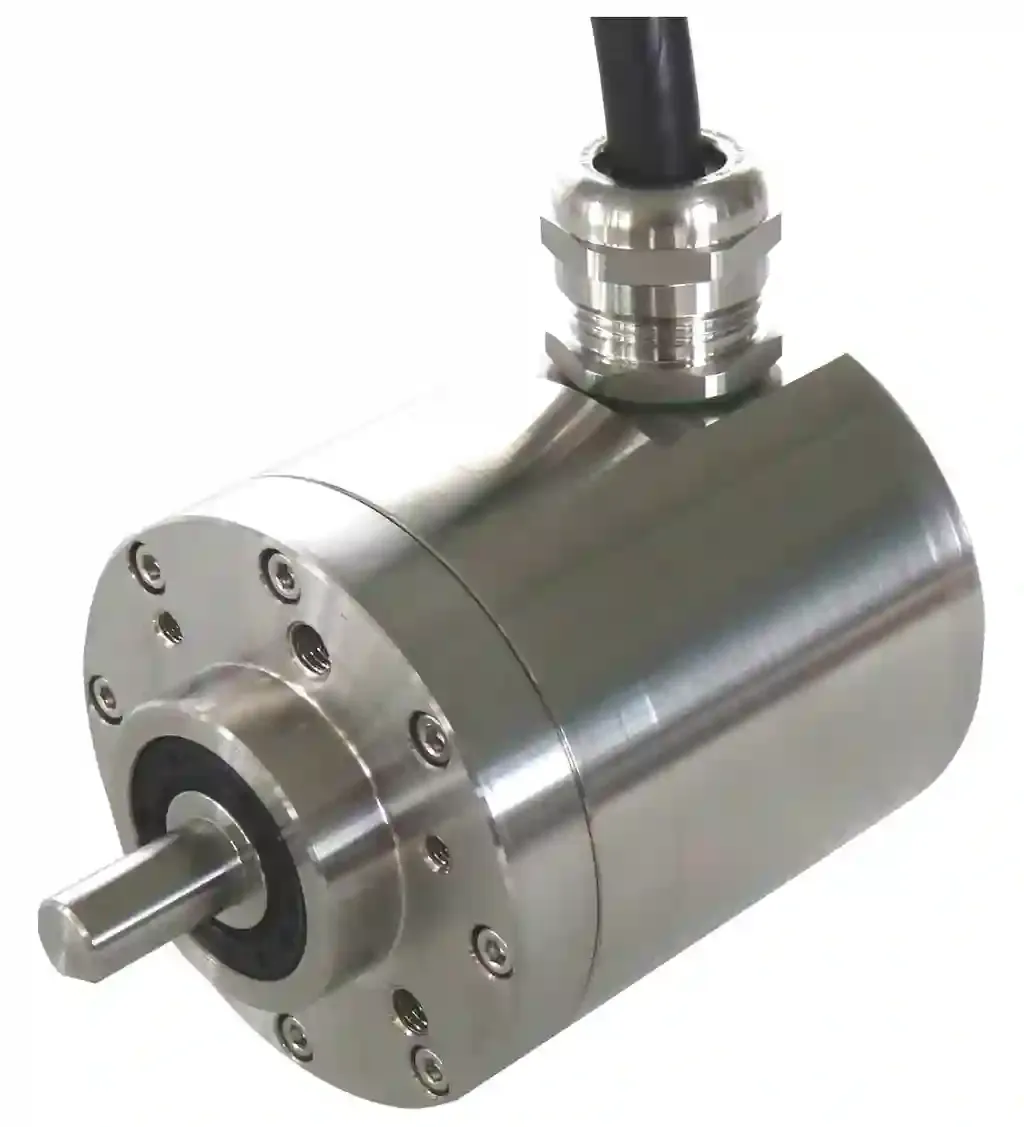

Pepperl Fuchs RVI70E Mining

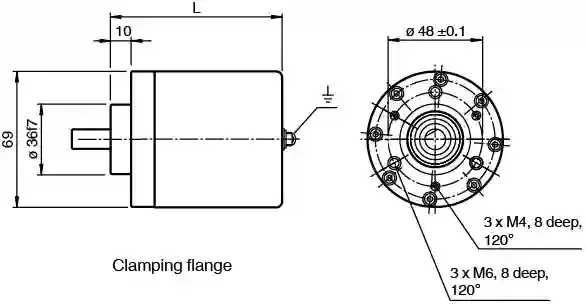

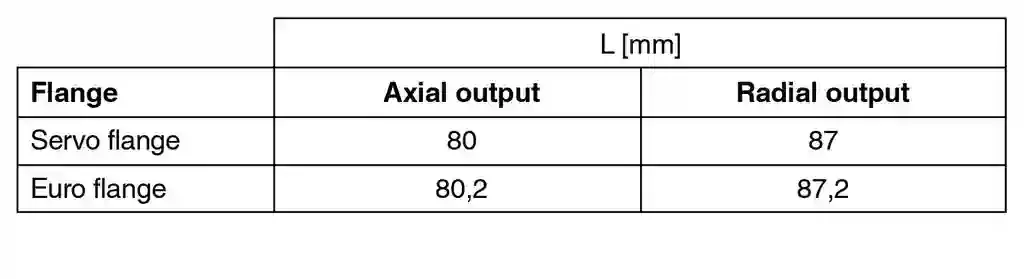

Incremental rotary encoder. Up to 5000 ppr, Flameproof enclosure, Worldwide certification: ATEX, IECEx, EX-approval for mining, Degree of protection IP66 / IP67, Enclosure type: 70 mm, Type of shaft: Solid shaft, Interface: push-pull, incremental or RS-422, incremental, Application: Ex protection, Detection type: photoelectric sampling, Output type: push-pull, incremental or RS 422, incremental (see “Output circuit” in the ordering information). Detection type: photoelectric sampling. Device type: Incremental rotary encoder. Pulse count: max. 5000. MTTFd: 140 a. L10: 1.6 E+9 at 3000 rpm. Operating voltage: 10 … 30 V DC or 5 V DC ± 5 % (see “Output circuit” in the ordering information). No-load supply current: max. 60 mA. Output type: push-pull, incremental or RS 422, incremental (see “Output circuit” in the ordering information). Voltage drop: < 4 V (push-pull, incremental). Load current: max. per channel 35 mA , short-circuit protected, reverse polarity protected (push-pull, incremental) max. per channel 20 mA , short-circuit protected, reverse polarity protected (RS 422, incremental). Output frequency: max. 200 kHz. Rise time: 250 ns. Phase position A to B: 90 ° ± 18 °. Duty cycle: 1/2 ± 20 %. De-energized delay: 250 ns. Cable: ∅ 10.2 mm, Radox 9 x 0.5 mm2. Degree of protection: DIN EN 60529, IP66 DIN EN 60529, IP67. Climatic testing: DIN EN 60068-2-78 , no moisture condensation. Emitted interference: EN IEC 61000-6-4:2019. Noise immunity: EN IEC 61000-6-2:2019. Shock resistance: DIN EN 60068-2-27, 100 g, 3 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 … 2000 Hz. IECEx approval: . Equipment protection level MbIECEx ZLM 14.0003X: . Equipment protection level Mb: IECEx ZLM 14.0003X. ATEX approval: . Equipment protection level MbZELM 14 ATEX 0519 X: . Equipment protection level Mb: ZELM 14 ATEX 0519 X. Ambient temperature: -40 … 70 °C (-40 … 158 °F). Storage temperature: -40 … 70 °C (-40 … 158 °F). Material: . Combination 1housing: Stainless steel 1.4305 / AISI 303 flange: Stainless steel 1.4305 / AISI 303 shaft: Stainless steel 1.4305 / AISI 303Combination 2housing: Stainless steel 1.4401 / AISI 316 flange: Stainless steel 1.4401 / AISI 316 shaft: Stainless steel 1.4401 / AISI 316: . Combination 1: housing: Stainless steel 1.4305 / AISI 303 flange: Stainless steel 1.4305 / AISI 303 shaft: Stainless steel 1.4305 / AISI 303. Combination 2: housing: Stainless steel 1.4401 / AISI 316 flange: Stainless steel 1.4401 / AISI 316 shaft: Stainless steel 1.4401 / AISI 316. Mass: approx. 2300 g (combination 1) approx. 2300 g (combination 2). Rotational speed: max. 6000 min -1. Moment of inertia: 400 gcm2. Starting torque: < 5 Ncm. Shaft load: . Axial110 NRadial150 N: . Axial: 110 N. Radial: 150 N. Use in the hazardous area: see instruction manuals
