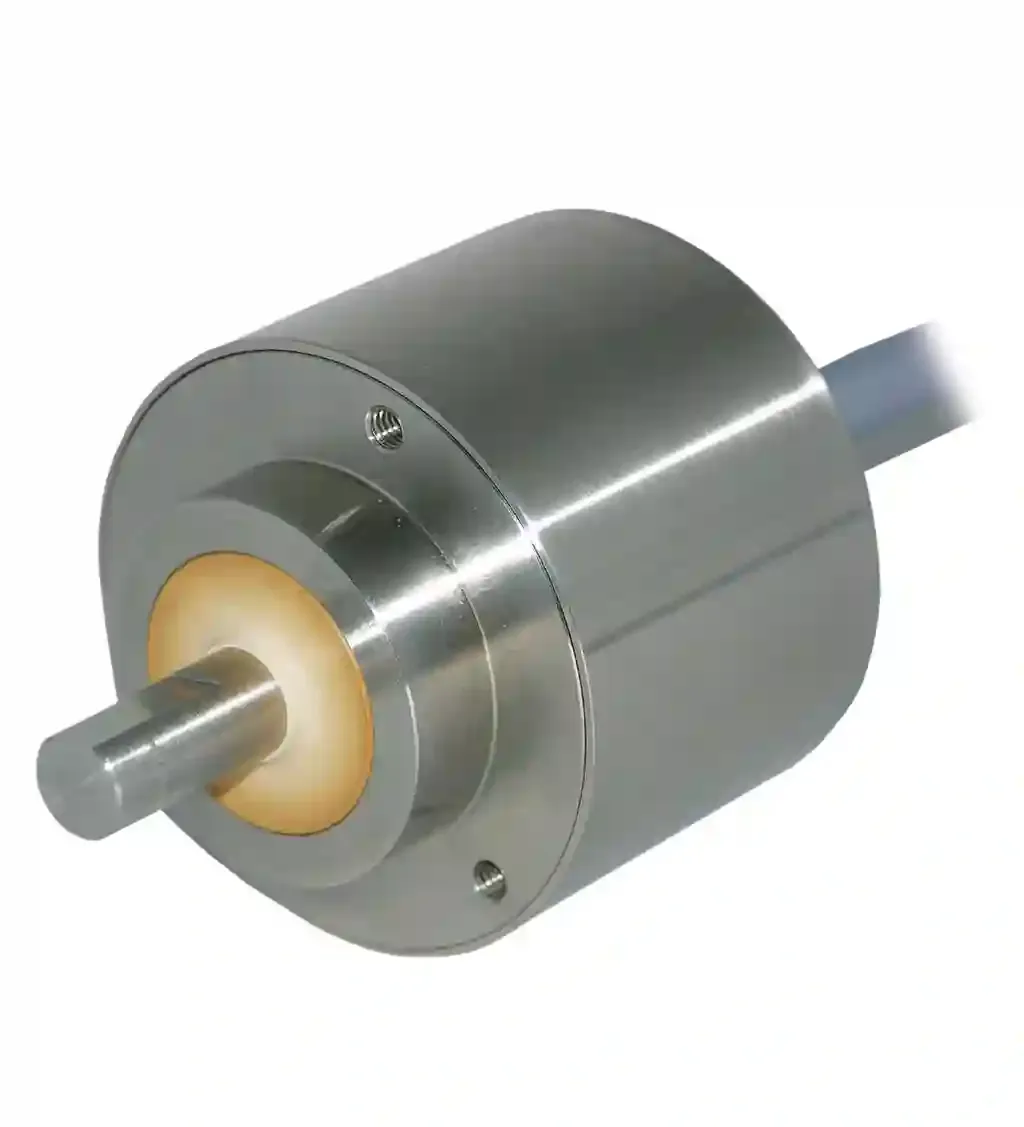

Pepperl Fuchs RVI58L

Incremental rotary encoder. Stainless steel version, especially suitable for applications in the food industry, Cleaning compatible according to EHEDG (European Hygienic Engineering & Design Group), Approval for ECOLAB detergents, IP69K Protected, Industrial standard housing ∅58 mm, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: push-pull, incremental or RS-422, incremental, Application: hygienic design, Detection type: photoelectric sampling. Detection type: photoelectric sampling. Pulse count: max. 25000 , see table. MTTFd: 200 a. Mission Time (TM): 25 a. L10: 70 E+9 at 6000 rpm. Diagnostic Coverage (DC): 0 %. Operating voltage: 10 … 30 V DC or 5 V DC. No-load supply current: max. 100 mA. Output type: push-pull, incremental or RS 422, incremental. Load current: max. per channel 40 mA , short-circuit prtected (not with Ub), reverse polarity protected. Output frequency: max. 600 kHz. Rise time: 170 ns. Cable: 2 m fixed cable. ECOLAB: material compatibility attested for: P3-topactive DES P3-topax 19 P3-topax 56 P3-topax 66 P3-topax 91 de-mineralized water as zero value. Operating temperature: -20 … 80 °C (-4 … 176 °F). Storage temperature: -20 … 80 °C (-4 … 176 °F). Degree of protection: IP67 / IP69K. Material: . Housingstainless steel V4AFlangestainless steel V4AShaftstainless steel V4A: . Housing: stainless steel V4A. Flange: stainless steel V4A. Shaft: stainless steel V4A. Mass: approx. 600 g. Rotational speed: max. 3600 min -1. Starting torque: approx. 1 Ncm at room temperature. Shaft load: . Axialmax. 100 NRadialmax. 100 N: . Axial: max. 100 N. Radial: max. 100 N. Dimensions: . Diameter58 mm: . Diameter: 58 mm. Life span: ≥ 1 x 109 revolutions (max. shaft loading)
